General

  • Auto reset.
  • Compact design.
  • Integrated mount.
  • Thermoplastic body.
  • Supplied with Whiz-lock nuts.
  • Ideal for battery chargers, trucks, buses & RV's.
  • Current Rating: 8A, 10A, 15A, 20A, 25A, 30A, 40A, 50A
  • Body: Thermoplastic
  • IP Rating: IP66
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J533
    SAE J1171

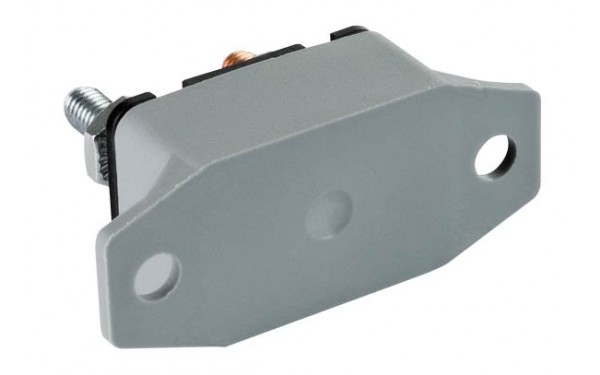

  • Auto reset.
  • Compact design.
  • Integrated bracket.
  • Metal housing.
  • Supplied with Whiz-lock nuts.
  • Ideal for for battery chargers, trucks, buses & RV's.
  • Current Rating: 10A, 15A, 20A, 25A, 30A, 40A, 50A
  • Body: Cover - Metal
    Base - Thermoplastic
  • IP Rating: IP54
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J533
    SAE J1171
  • Manual reset.
  • Panel mount.
  • Compact body allows for closely grouped installation.
  • Ideal for truck's buses, boats, portable generators.
  • Current Rating: 10A, 15A, 20A, 25A, 30A
  • Body: Thermoplastic
  • Mount: Panel
  • IP Rating: IP54
  • Operating Temp: -40°C to 85°C
  • Standards: UL 1077
    CSA 22.2
    SAE J553
    SAE J1171
  • Manual reset.
  • Panel mount.
  • Compact body allows for closely grouped installation.
  • Protective boot available.
  • Ideal for truck's buses, boats, portable generators.
  • Contact Rating: 5A, 10A, 15A, 20A, 25A, 30A, 35A
  • Body: Thermoplastic
  • Mount: Panel
  • IP Rating: IP54
  • Operating Temp: -40°C to 85°C
  • Standards: UL, CSA
  • Manual reset.
  • Panel mount.
  • Screw terminals.
  • Weatherproof.
  • Ideal for truck's buses, boats, portable generators.
  • Current Rating: 5A, 10A, 15A, 20A, 30A, 40A, 60A
  • Body: Thermoplastic
  • Mount: Panel
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J553
    SAE J1171
