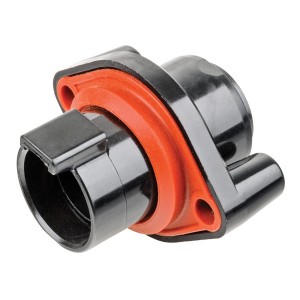

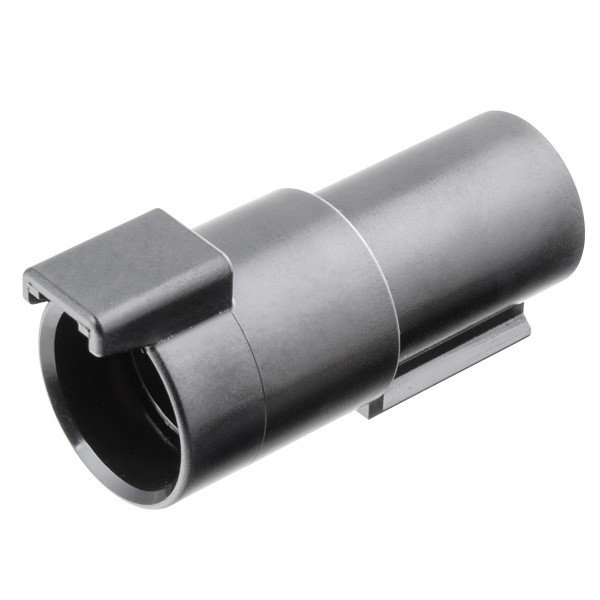

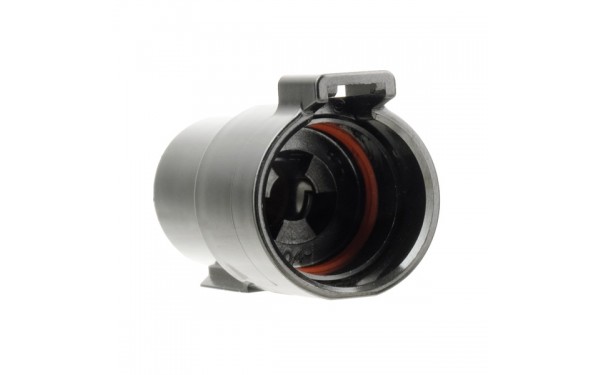

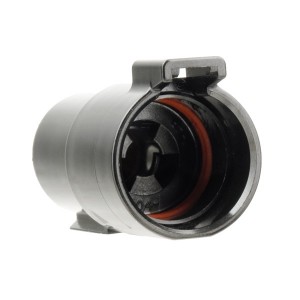

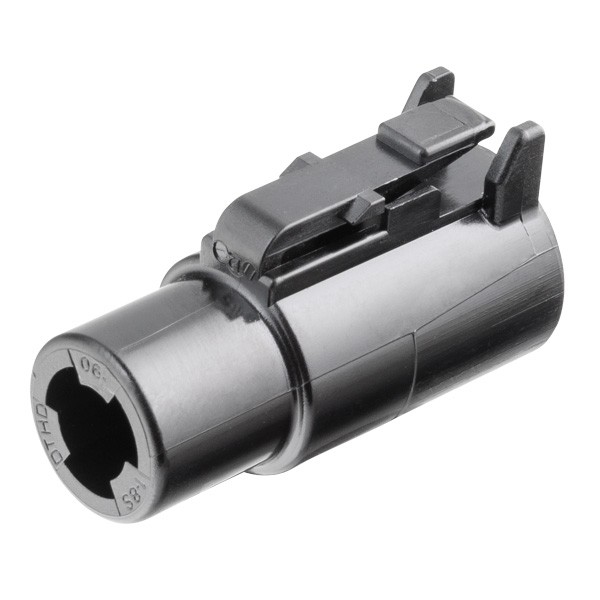

DTHD Series
- Genuine TE DEUTSCH Connectors.
- Cylindrical thermoplastic design.
- Latched mating.
- Accepts contact sizes 4, 8, 12.
- 6–14 AWG.
- 1 cavity arrangement.

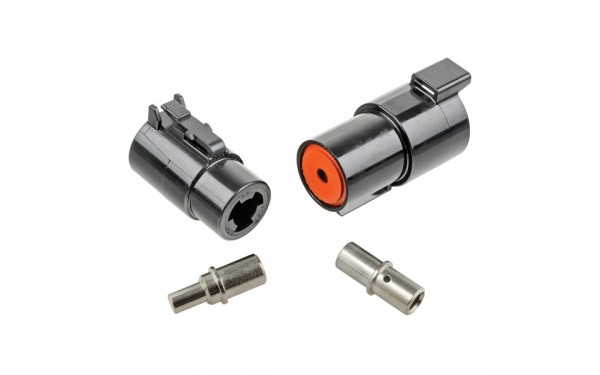

- Each Kit contains all components required to make both sides of a connection.
- Housing: Thermoplastic
- Seal: Silicon Rubber
- Contacts: Size 12, 8 & 4
-
Contact Rating: Size 12
25A @ 125℃
Size 8
60A @ 125℃
Size 4
100A @ 125℃ - Shock: 50G
- Vibration: 20G rms 10 – 2000Hz
- Operating Temp: -55°C to 125°C
Catalogue Downloads
