System Managers

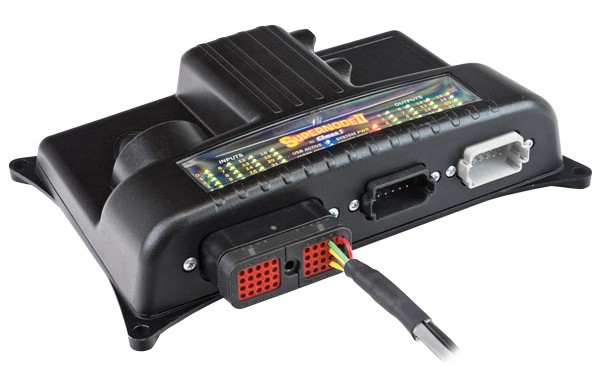

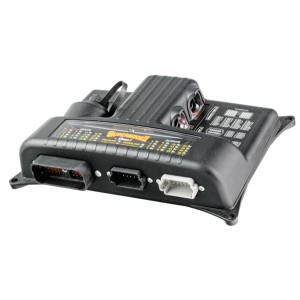

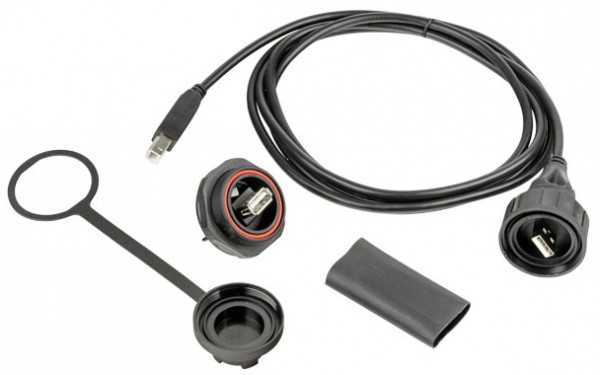

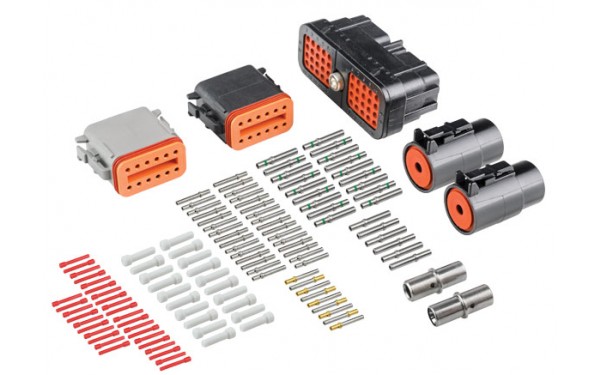

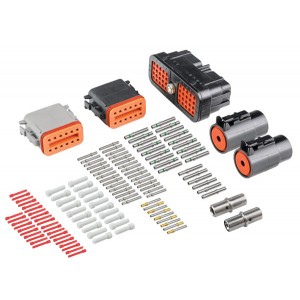

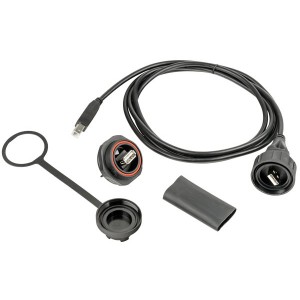

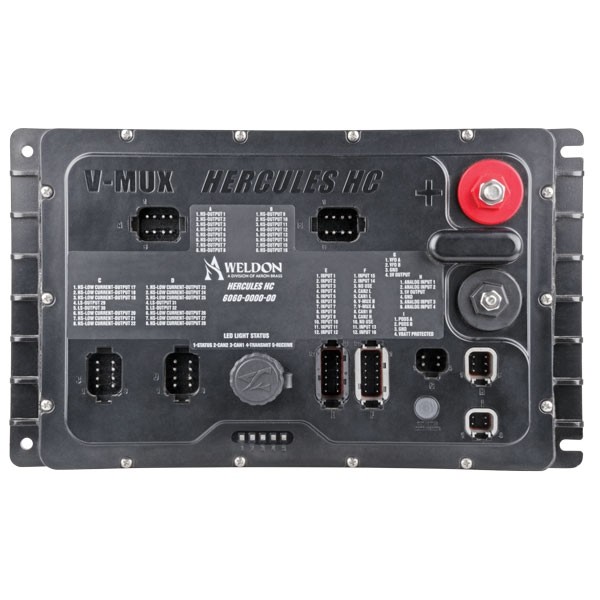

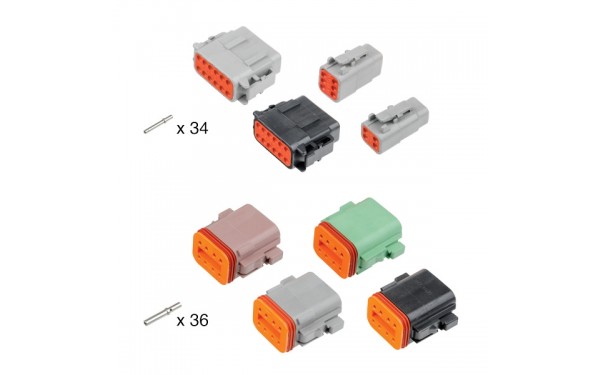

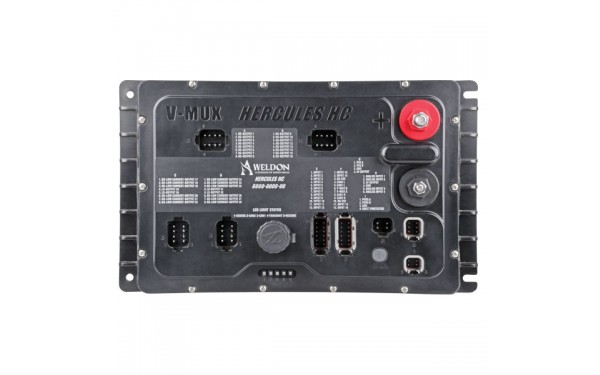

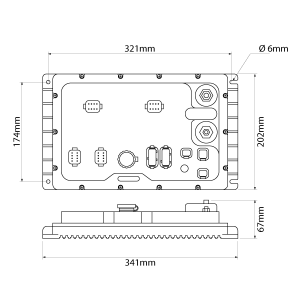

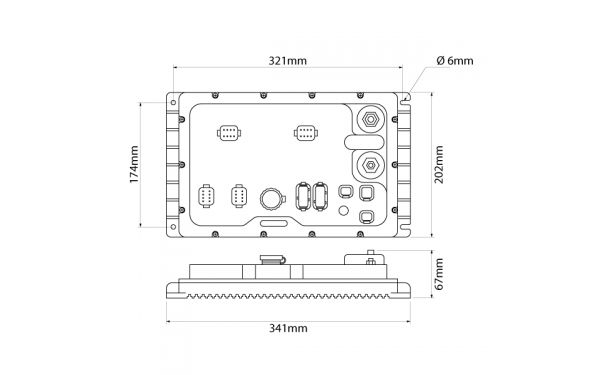

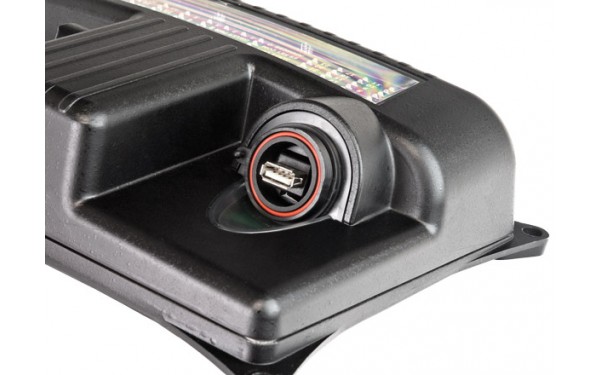

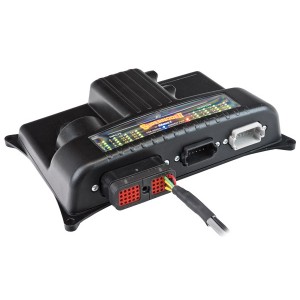

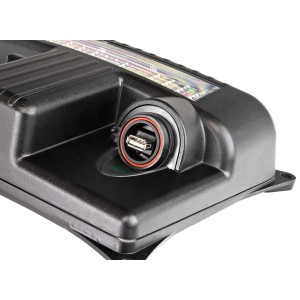

The Supernode II consolidates the functions of several Es-Key modules - USM, Data Logger, Seatbelt, Vehicle Data Recorder (VDR), Climate Control, Digital Input/Output Module & Power Distribution Module. This reduces node count and simplifies addressing. Making it well suited for applications where a centralised node location is required.

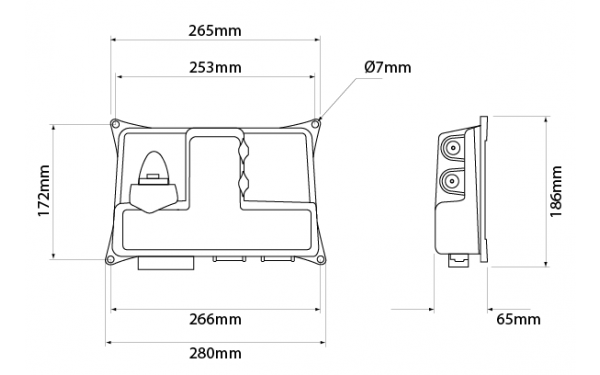

- SAE J1939 CAN engine message reception and Es-Key network controller.
- Digital circuit breakers on all positive outputs.
- Output ‘open load’ detection.
- Diagnostic LED indicators.
- Optional modem available upon request.
- Environmentally sealed - IP67.
- Multi-voltage.
- Voltage: 9-32V
- Body: Die-cast
-
Current Draw: 500mA @ 13.8V
350mA @ 27.6V - Inputs: 24 Polarity selectable
-
Outputs: 18 Positive
@ 13A
6 Negative
@ 2A - IP Rating: IP67
- CAN: SAE J1939
- Operating Temp: -40°C to 85°C
- Note: Optional integrated modem available

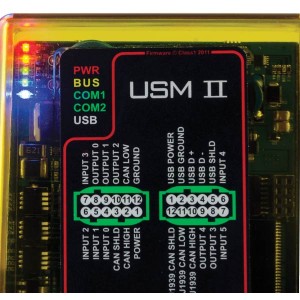

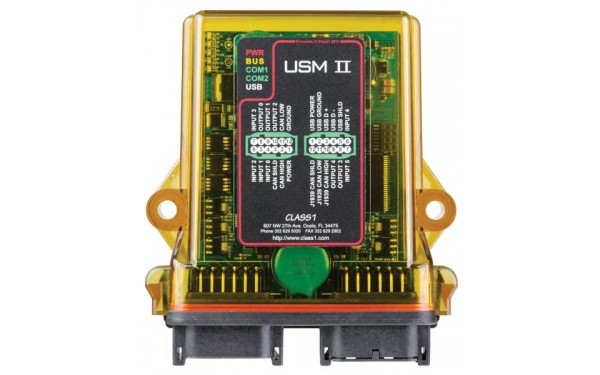

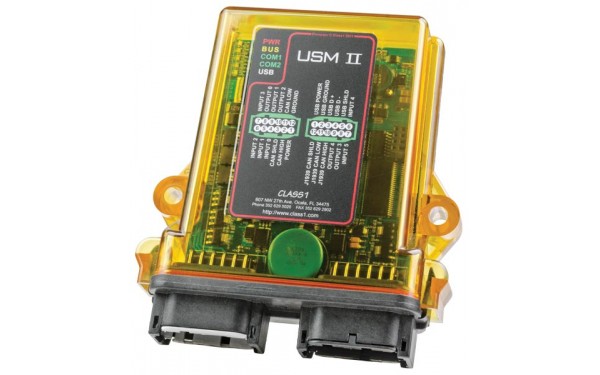

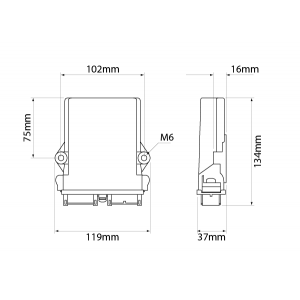

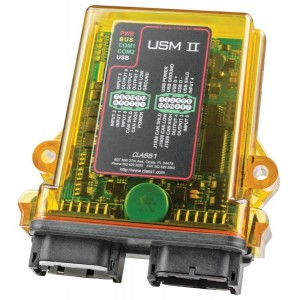

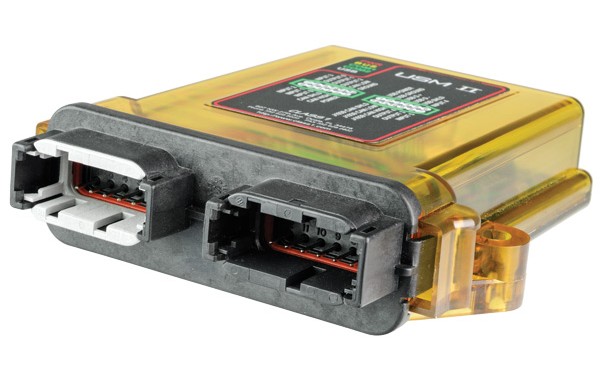

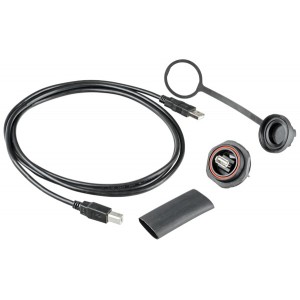

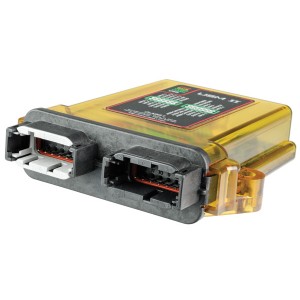

- SAE J1939 CAN engine message reception and Es-Key network controller.
- Digital circuit breakers on all positive outputs.
- Output ‘open load’ detection.
- Diagnostic LED indicators.
- Optional modem available upon request.
- Environmentally sealed - IP67.
- Multi-voltage.
- Voltage: 9-32V
- Body: Polycarbonate
-
Current Draw: 100mA @ 13.8V
125mA @ 27.6V - Inputs: 6 Polarity selectable
- Outputs: 8 Polarity selectable
- IP Rating: IP67
- CAN: SAE J1939
- Operating Temp: -40°C to 85°C

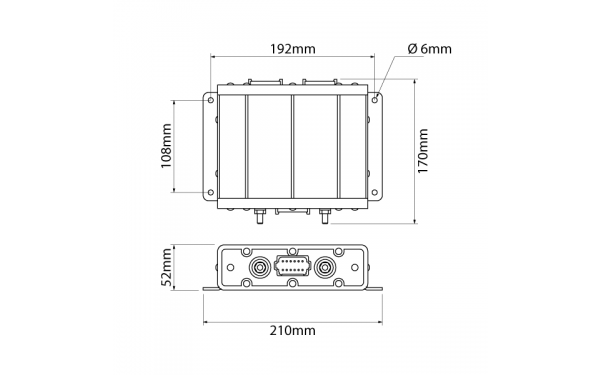

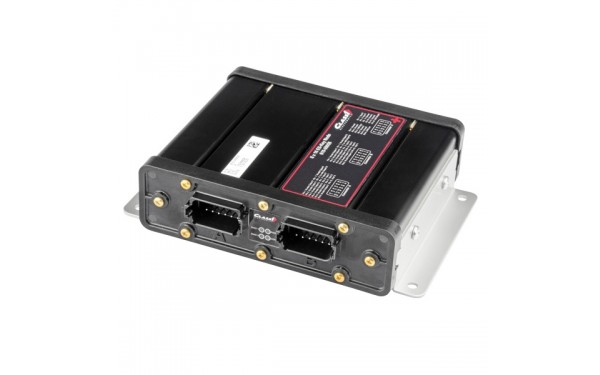

- SAE J1939 CAN engine message reception and Es-Key network controller.
- Digital circuit breakers on all positive outputs.
- Output ‘open load’ detection.

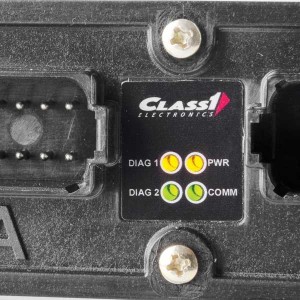

- Diagnostic LED indicators.
- Selectable polarity for digital inputs models.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Voltage: 9-32V
-
Body: Die-cast
Polycarbonate -
Current Draw: 50mA @ 13.8V
60mA @ 27.6V - Inputs: 8 Digital
- Outputs: 16
- Output Current: 13A Maximum
- IP Rating: IP67
- CAN: SAE J1939
- Operating Temp: -40°C to 85°C
- SAE J1939 CAN engine message reception and Es-Key network controller.
- Digital circuit breakers on all positive outputs.
- Output ‘open load’ detection.
- Diagnostic LED indicators.
- Selectable polarity for digital inputs models.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Voltage: 9-32V
-
Body: Die-cast
Polycarbonate -
Current Draw: 69mA @ 13.8V
63mA @ 27.6V -
Inputs: 4 Analogue
16 Digital - Outputs: 32
-
Output Current: Positive 13A
4A Negative - IP Rating: IP67
- CAN: SAE J1939
- Operating Temp: -40°C to 85°C
