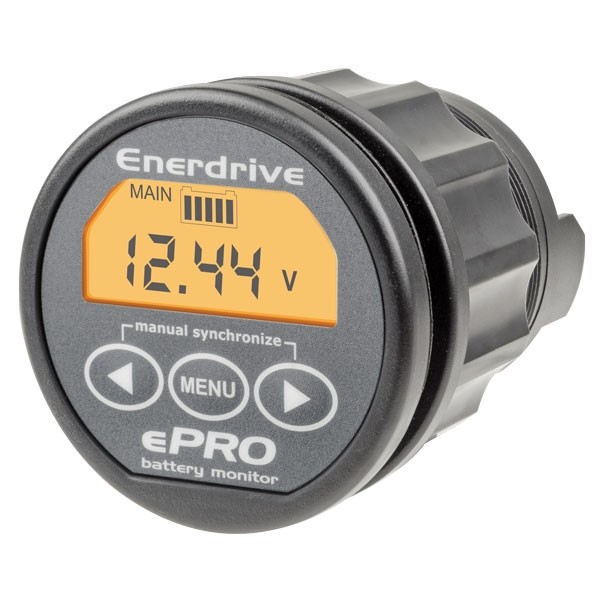

Battery Monitor

  • Displays voltage, current, consumed amp hours & remaining battery capacity.
  • 2 battery inputs.
  • Quick nut mounting construction.
  • Configurable alarm relay.
  • 500A shunt included.
  • Ideal for service vehicles, forklifts, solar power systems, trailer homes, industrial systems and marine applications.
  • 2 year warranty.
  • Voltage: 9-35VDC
  • Voltage Display: Main
    0 to 35VDC
    Auxiliary
    2 to 35VDC
  • Current Display: -999 to 999A
  • Capacity Display: 20 to 999Ah
  • Approvals: RoHS
  • Weight: 145g
  • Operating Temp: -20°C to 50°C

Catalogue Downloads:

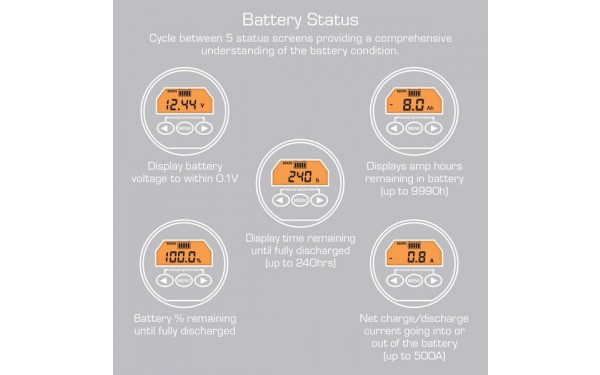

  • Complete battery status information at a glance (%, V, A, Ah, W, h:m, °C).
  • Supports up to three battery banks (12V, 24V and 48V).
  • Very simple ‘Plug and Play’ installation.
  • Programmable alarm contact.

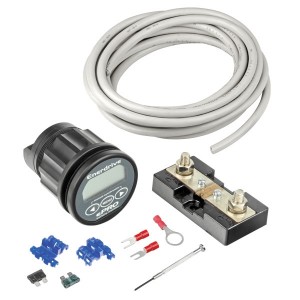

  • All wiring included (excluding battery cables).
  • Compatible with lead based and lithium batteries (LiFePO4).
  • The inputs for battery bank 2 and 3 can also be configured for other purposes – keyswitch input, mid-point voltage measurement, setup lock or backlight control.
  • Measure DC currents up to 600A (500A continuous) and voltages up to 70VDC.
  • Voltage: 7-70VDC
  • Current Draw: 10mA @ 12V
  • Battery: Capacity – 10 to 10,000Ah
  • Approvals: CE
  • Operating Temp: -20°C to 50°C

Catalogue Downloads
