Blade LED

Catalogue Downloads:

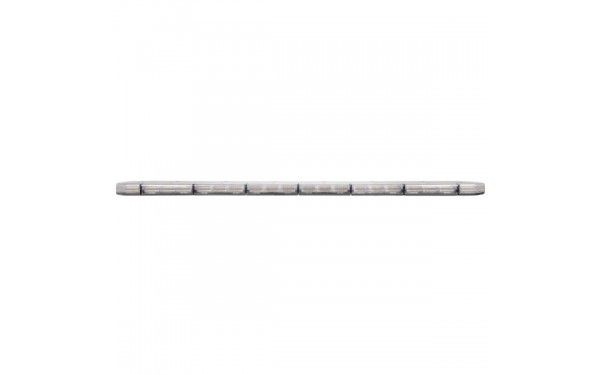

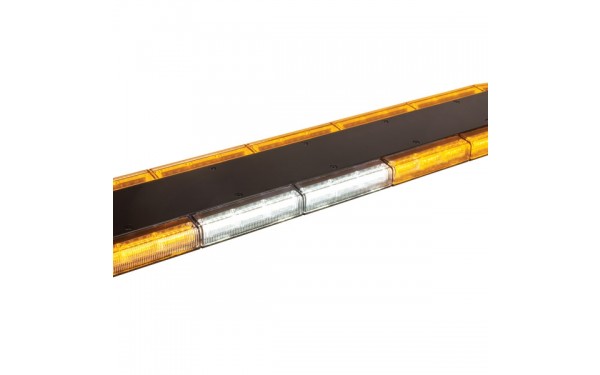

  • Latest lightbar technology featuring warning patterns, alley and take down lights and in-built traffic director.

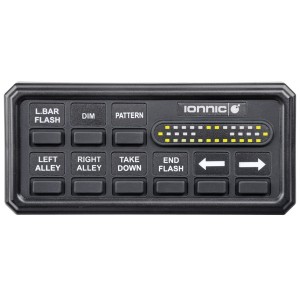

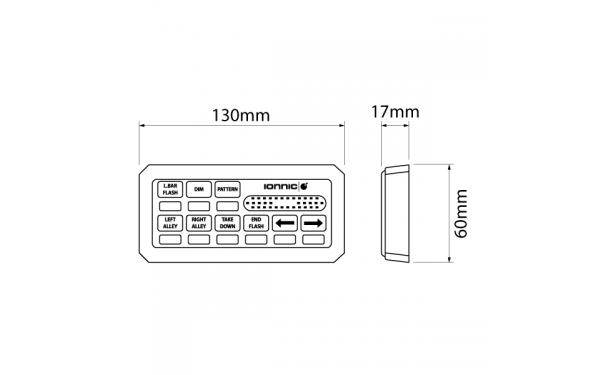

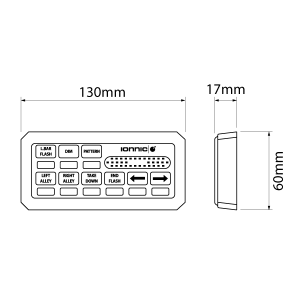

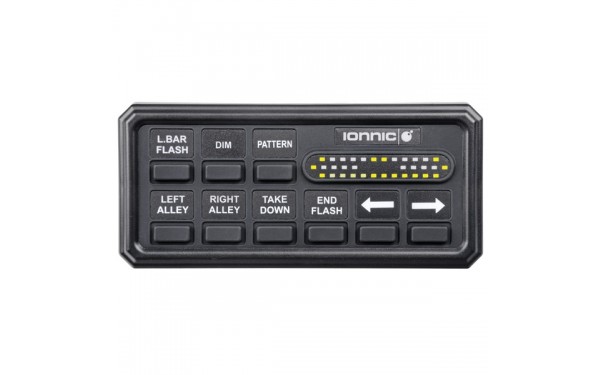

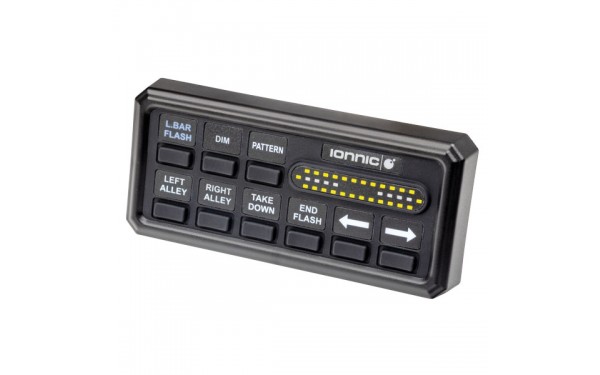

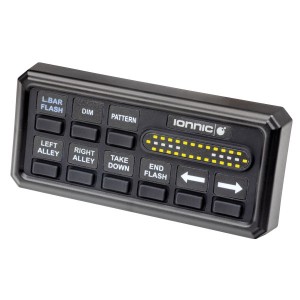

  • Includes switch panel providing control of all functions as well as real time operator feedback.
  • 25 flash patterns including traffic direction patterns.
  • Low profile – 35mm.
  • Available in 3 lengths – 1200mm, 1538mm & 1860mm.
  • Polycarbonate lens for high durability.
  • Lightbars environmentally sealed – IP67.
  • Gore filter technology to prevent ingress.
  • Dimming function via controller.
  • Multi-voltage.
  • 3-year warranty.

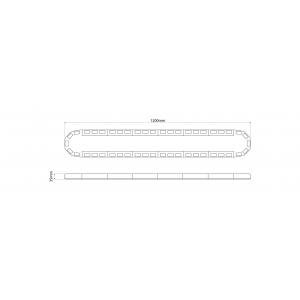

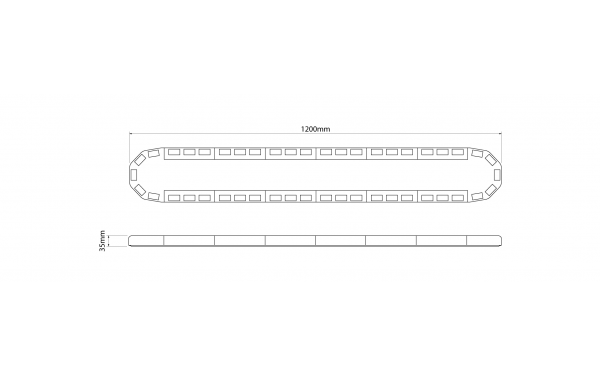

  • Length: 1200mm
  • Height: 36mm
  • Voltage: 12–30V
  • Current Draw: 23A @ 12V
  • Flash Patterns: Lightbar
    25 + 1 End Pattern
    Director
    4 Left
    4 Right
    4 Split
  • Lens: Polycarbonate
  • Base: Aluminium

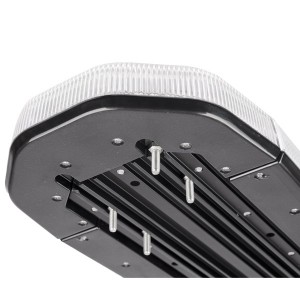

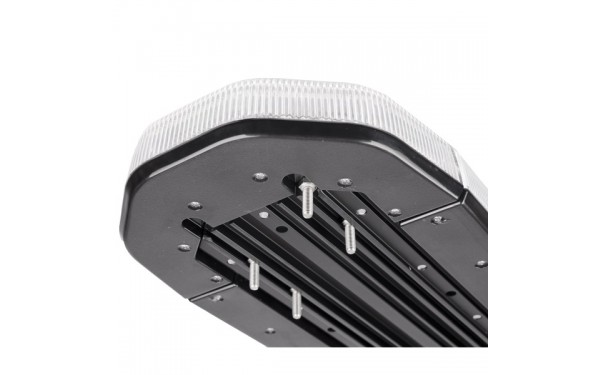

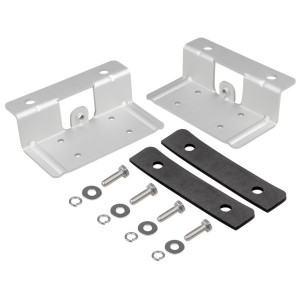

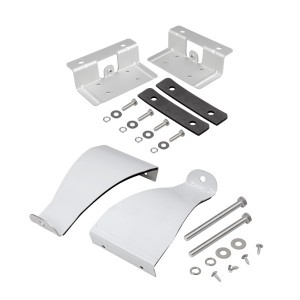

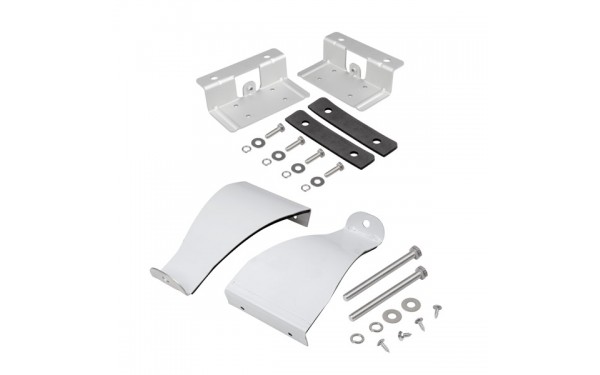

  • Mount: 4 x M6 Bolts
  • Cable Length: 6.5m
  • Approvals: SAE Class 1
    ECE R10
    ECE R65 Class 2 (End Flash Only)
  • IP Rating: IP67 (Excludes Controller)
  • Operating Temp: -40°C to 60°C
  • Light Source: LED Modules x 46
  • Weight: 6.7kg
  • Colours :

Catalogue Downloads

  • Latest lightbar technology featuring warning patterns, alley and take down lights and in-built traffic director.
  • Includes switch panel providing control of all functions as well as real time operator feedback.
  • 25 flash patterns including traffic direction patterns.
  • Low profile – 35mm.
  • Available in 3 lengths – 1200mm, 1538mm & 1860mm.
  • Polycarbonate lens for high durability.
  • Lightbars environmentally sealed – IP67.
  • Gore filter technology to prevent ingress.
  • Dimming function via controller.
  • Multi-voltage.
  • 3-year warranty.

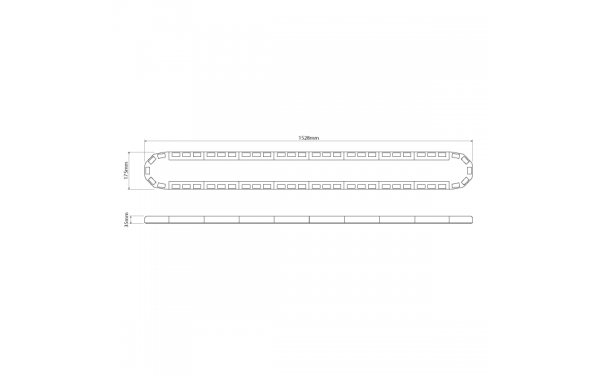

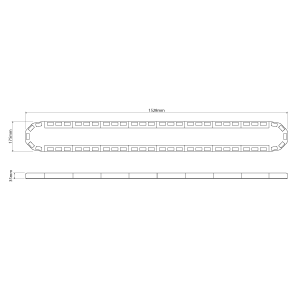

  • Length: 1528mm
  • Height: 36mm
  • Voltage: 12–30V
  • Current Draw: 29A @ 12V
  • Flash Patterns: Lightbar
    25 + 1 End Pattern
    Director
    4 Left
    4 Right
    4 Split
  • Lens: Polycarbonate
  • Base: Aluminium
  • Mount: 4 x M6 Bolts
  • Cable Length: 6.5m
  • Approvals: SAE Class 1
    ECE R10
    ECE R65 Class 2 (End Flash Only)
  • IP Rating: IP67 (Excludes Controller)
  • Operating Temp: -40°C to 60°C
  • Light Source: LED Modules x 58
  • Weight: 8.5kg
  • Colours :

Catalogue Downloads

  • Latest lightbar technology featuring warning patterns, alley and take down lights and in-built traffic director.
  • Includes switch panel providing control of all functions as well as real time operator feedback.
  • 25 flash patterns including traffic direction patterns.
  • Low profile – 35mm.
  • Available in 3 lengths – 1200mm, 1538mm & 1860mm.
  • Polycarbonate lens for high durability.
  • Lightbars environmentally sealed – IP67.
  • Gore filter technology to prevent ingress.
  • Dimming function via controller.
  • Multi-voltage.
  • 3-year warranty.

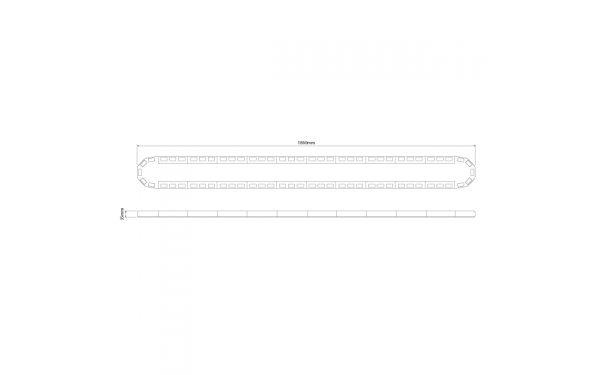

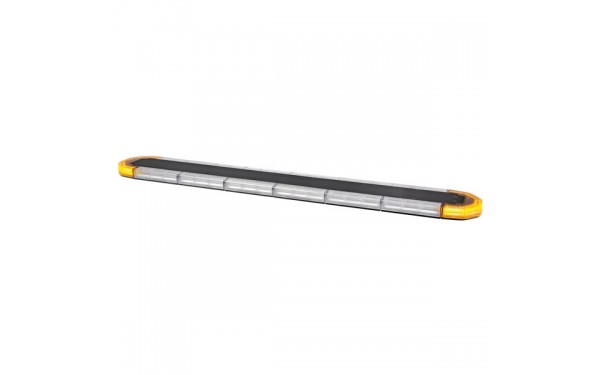

  • Length: 1860mm
  • Height: 36mm
  • Voltage: 12–30V
  • Current Draw: 35A @ 12V
  • Flash Patterns: Lightbar
    25 + 1 End Pattern
    Director
    4 Left
    4 Right
    4 Split
  • Lens: Polycarbonate
  • Base: Aluminium
  • Mount: 4 x M6 Bolts
  • Cable Length: 6.5m
  • Approvals: SAE Class 1
    ECE R10
    ECE R65 Class 2 (End Flash Only)
  • IP Rating: IP67 (Excludes Controller)
  • Operating Temp: -40°C to 60°C
  • Light Source: LED Modules x 70
  • Weight: 6.7kg
  • Colours :

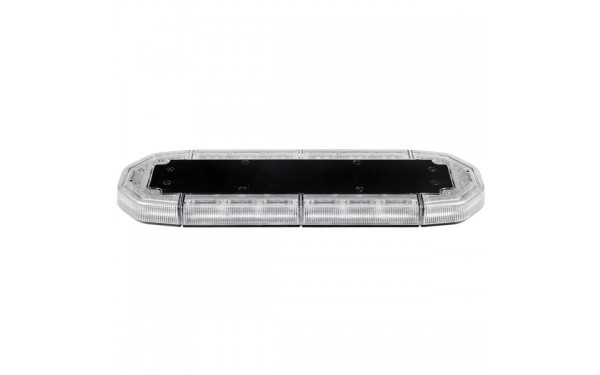

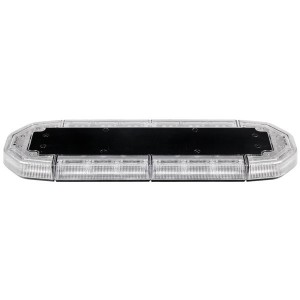

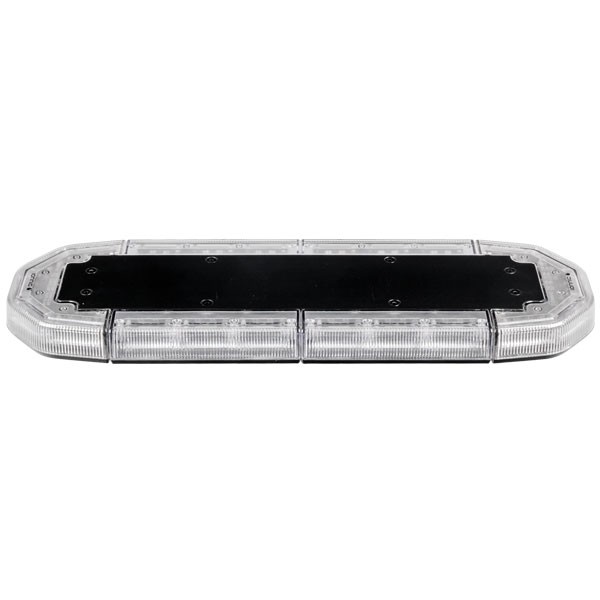

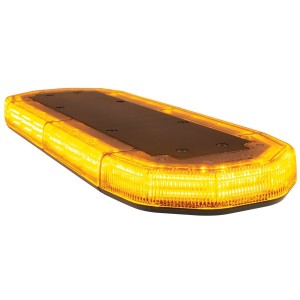

Catalogue Downloads

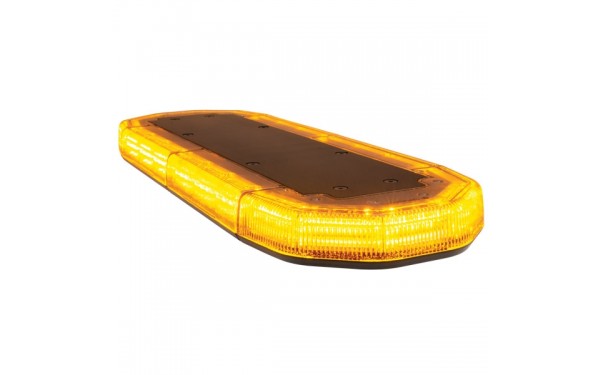

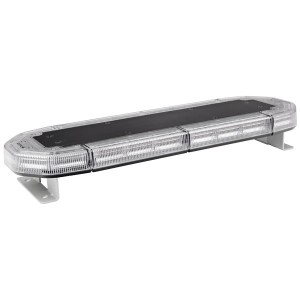

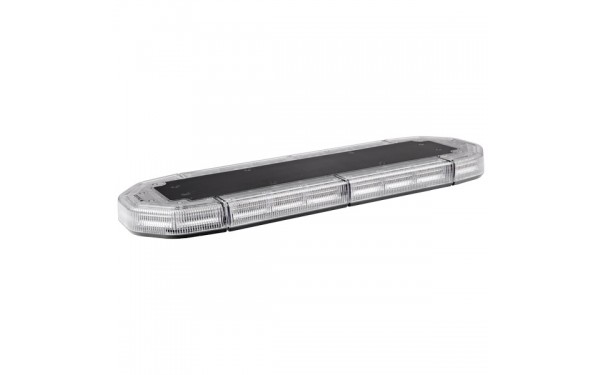

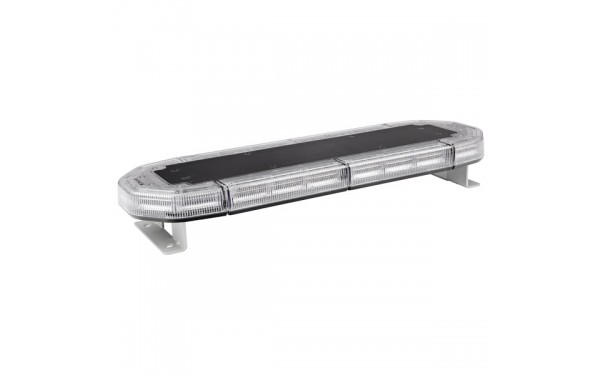

  • 15 flash patterns.
  • High output 1 Watt LEDs.
  • Low profile – 35mm.
  • 532mm in length.
  • Polycarbonate lens for high durability.
  • Environmentally sealed – IP67.
  • Gore filter technology to prevent ingress.
  • Dimming function.
  • Multi-voltage.
  • 3-year warranty.

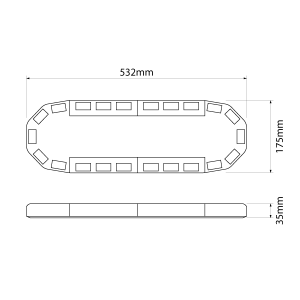

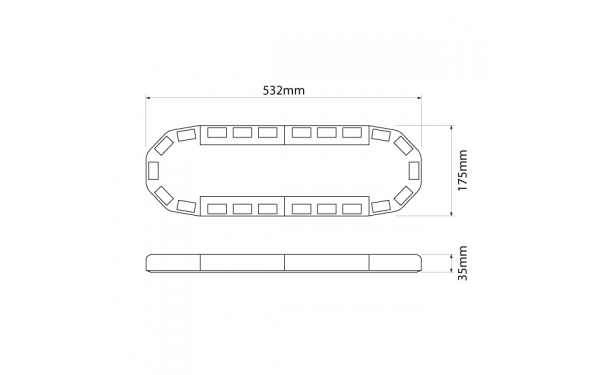

  • Length: 532mm
  • Height: 36mm
  • Voltage: 12–30V
  • Current Draw: 11A @ 12V
  • Flash Patterns: 15
  • Lens: Polycarbonate
  • Body: Aluminium

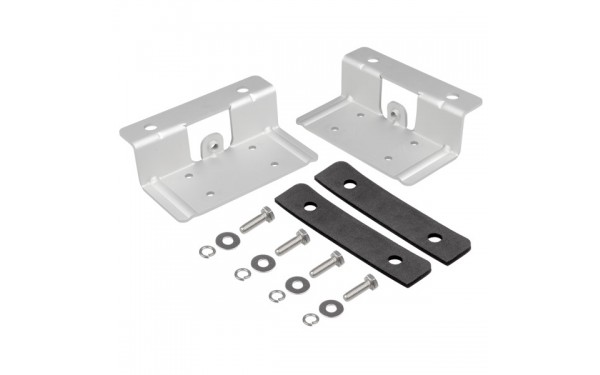

  • Mount: 4 x M6 Bolts
  • Cable Length: 3.1m
  • Approvals: SAE Class 1
    ECE R10
    ECE R65 Class 2 (End Flash Only)
  • IP Rating: IP67
  • Operating Temp: -40°C to 60°C
  • Light Source: 4 x 18 LED Modules (Front & Back)
    2 x 30 LED Modules (Ends)
  • Weight: 2.6kg
  • Colours :
