KISSLING E-Stops

Catalogue Downloads:

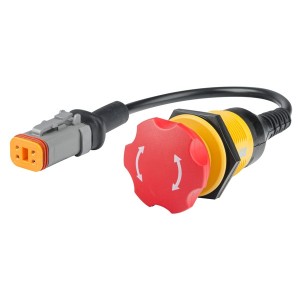

  • Plug & play E-stop switch.
  • Multi-voltage.
  • Available in N/O & N/C and C/O models.
  • TE DEUTSCH connector on fly lead.
  • Incorporated strain relief on both ends of lead.
  • Resistant to shock, vibration, dust and moisture.
  • Environmentally sealed – IP67, IP6K9K, when  installed to manufacturer's specifications.
  • Voltage: 9-32V
  • Current Rating: 10A continuous

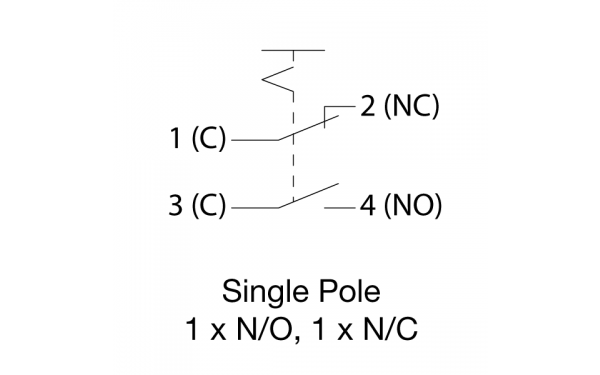

  • Switch Contacts: 1 x N/O
    1 x N/C
  • Contacts: Silver Alloy
  • Terminals: Copper Zinc Alloy

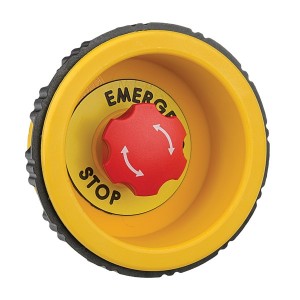

  • Button: Latching
    Turn to Release
  • Enclosure: Polyamide
  • Mount: Panel Mount
    M30 x 1.5 Tread
  • Connector: DT Series 6 Pin
  • Cable Length: 180mm
  • Shock: 50G
  • Vibration: ISO 16750-3
  • Ingress Protection: IP67
    IP6K9K
  • Operating Temp: -40°C to 85°C

Catalogue Downloads

  • Plug & play E-stop switch.
  • Multi-voltage.
  • Available in N/O & N/C and C/O models.
  • TE DEUTSCH connector on fly lead.
  • Incorporated strain relief on both ends of lead.
  • Resistant to shock, vibration, dust and moisture.
  • Environmentally sealed – IP67, IP6K9K, when  installed to manufacturer's specifications.
  • Voltage: 9-32V
  • Current Rating: 10A continuous
  • Switch Contacts: 2 x Indenpendent C/O
  • Contacts: Silver Alloy
  • Terminals: Copper Zinc Alloy
  • Button: Latching
    Turn to Release
  • Enclosure: Polyamide
  • Mount: Panel Mount
    M30 x 1.5 Tread
  • Connector: DT Series 4 Pin
  • Cable Length: 200mm
  • Shock: 50G
  • Vibration: ISO 16750-3
  • Ingress Protection: IP67
    IP6K9K
  • Operating Temp: -40°C to 85°C
