Thin Wall
- Lead free PVC insulation
- Superior heat dissipation
- Create smaller lighter harnesses
- More strands of smaller diameter copper than traditional cables

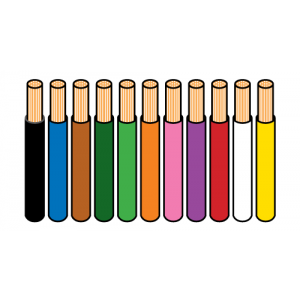

- Large range of colour & trace combinations
- 500m reels
- Download product page for full range of trace colours
- PVC Wall Thickness: 0.26mm min.
- Total Diameter: 1.50 ± 0.1
- Max. Resistance @ 20℃ - Ω/m: 0.0371
- Reel Length: 500m
- Copper Diameter: 0.196
- Strands: 16
- Operating Temp: -25° C to + 105°C (3000h)
- Cross Section: 0.5mm²
- AWG Size: 20
- Standards: DIN 72551, ISO 6772
Catalogue Downloads
- Lead free PVC insulation
- Superior heat dissipation
- Create smaller lighter harnesses
- More strands of smaller diameter copper than traditional cables
- Large range of colour & trace combinations
- 500m reels
- Download product page for full range of trace colours
- PVC Wall Thickness: 0.26mm min.
- Total Diameter: 2.0 ± 0.1
- Max. Resistance @ 20℃ - Ω/m: 0.0185
- Reel Length: 500m
- Copper Diameter: 0.196
- Strands: 32
- Operating Temp: -25° C to + 105°C (3000h)
- Cross Section: 1.0mm²
- AWG Size: 17
- Standards: DIN 72551, ISO 6772
Catalogue Downloads
- Lead free PVC insulation
- Superior heat dissipation
- Create smaller lighter harnesses
- More strands of smaller diameter copper than traditional cables
- Large range of colour & trace combinations
- 500m reels
- Download product page for full range of trace colours
- PVC Wall Thickness: 0.26mm min.
- Total Diameter: 2.55 ± 0.1
- Max. Resistance @ 20℃ - Ω/m: 0.0094
- Reel Length: 500m
- Copper Diameter: 0.293mm
- Strands: 28
- Operating Temp: -25° C to + 105°C (3000h)
- Cross Section: 2.0mm²
- AWG Size: 14
- Standards: DIN 72551, ISO 6772
Catalogue Downloads
- Lead free PVC insulation
- Superior heat dissipation
- Create smaller lighter harnesses
- More strands of smaller diameter copper than traditional cables
- 250m reels
- Download product page for full range of colours
- PVC Wall Thickness: 0.32
- Total Diameter: 3.9mm ± 0.1
- Max. Resistance @ 20℃ - Ω/m: 0.00406
- Reel Length: 250m
- Copper Diameter: 0.293mm
- Strands: 65
- Operating Temp: -25° C to + 105°C (3000h)
- Cross Section: 4.5mm²
- AWG Size: 12
- Standards: DIN 72551, ISO 6772
