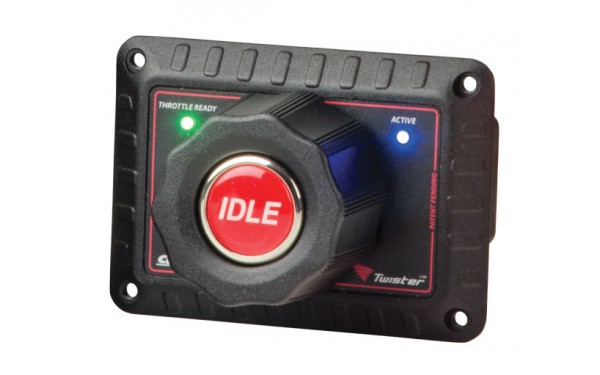

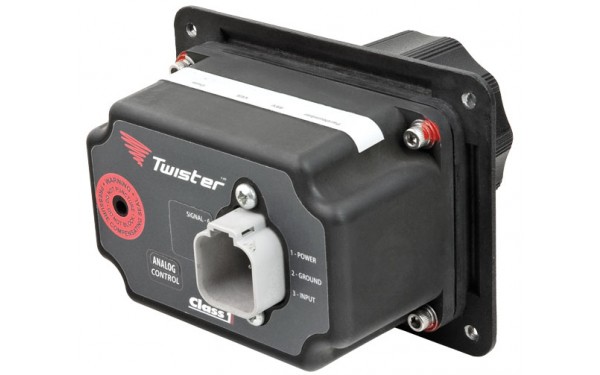

Twister

Class 1

Features

  • Class 1’s Twister is an electronic vernier style throttle for controlling the speed of:
    - SAE J1939 CAN compliant engines
    - Analogue (DC voltage) controlled engines.
  • Power-on state is always idle.
  • Interlocked for safety.
  • Clockwise or counter-clockwise operation.
  • Ergonomic control with superior tactile feedback.
  • Large and easily accessible idle button
  • Bright LED indicators: “Throttle Ready” for interlock, and “Active” for active engine control.
  • Environmentally sealed - IP67.

Specifications

  • Voltage: 9-32V
  • Current Draw: 240mA @ 13.8V
    163mA @ 27.6V
  • Output: Analogue 0-5V
  • CAN: SAE J1939
  • Material: Die-cast Alloy
  • IP Rating: IP67
  • Approvals: SAE J1455
    ISO 4892-2
    MIL-STD-810F
  • Operating Temp: -40°C to 85°C
