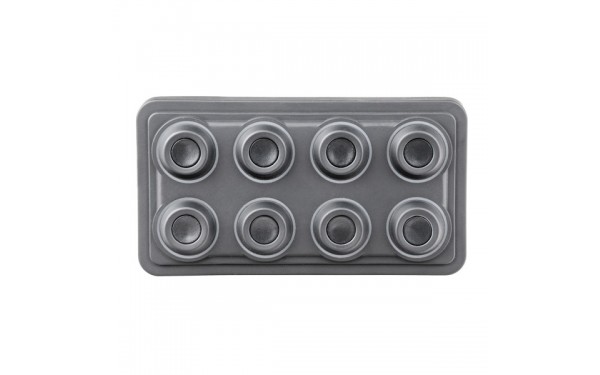

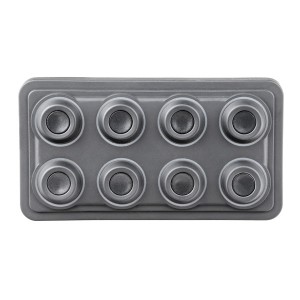

Switch Panels
- Simple control & indication of network components.
- Models available with 4, 5, 8, 12 and 16 switches.
- Dimmable illumination.
- LED backlit icons.
- Selectable coloured LED rings.
- Switch inserts can be laser etched.
- Vertical/horizontal mount.
- Low current draw.
- DEUTSCH compatible connector.
- Environmentally sealed – IP67.
- Configurations: 4, 5, 8, 12 & 16 Button
- Voltage: 9-32V
-
Current Draw: 65mA @ 13.8V
45mA @ 27.6V - CAN: SAE J1939
- Housing Material: Silicon
- IP Rating: IP67
-
Approvals: EN 55022
EN 61000
CISPR 25
ISO 7637 - Operating Temp: -40°C to 85°C
Catalogue Downloads

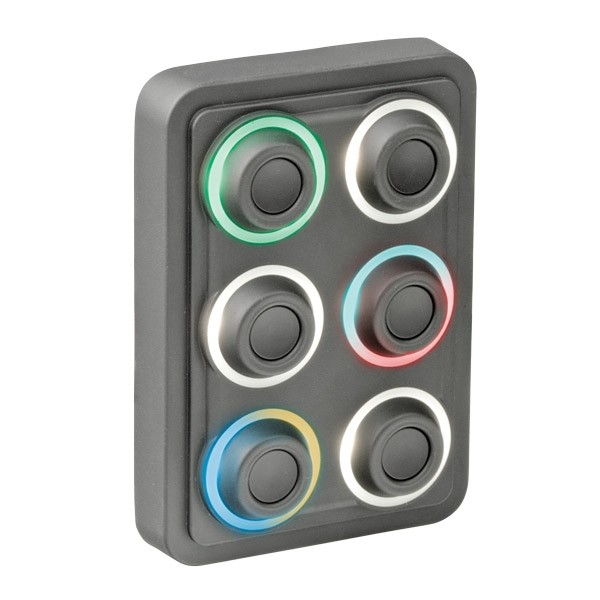

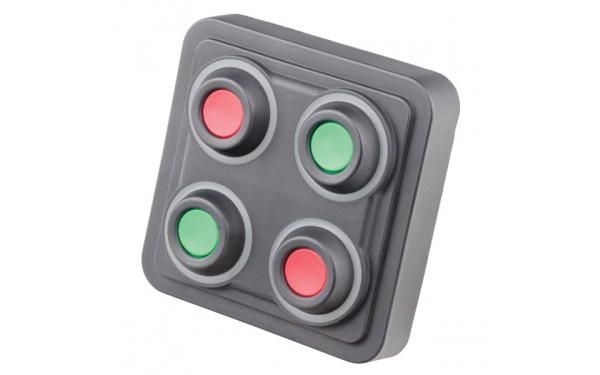

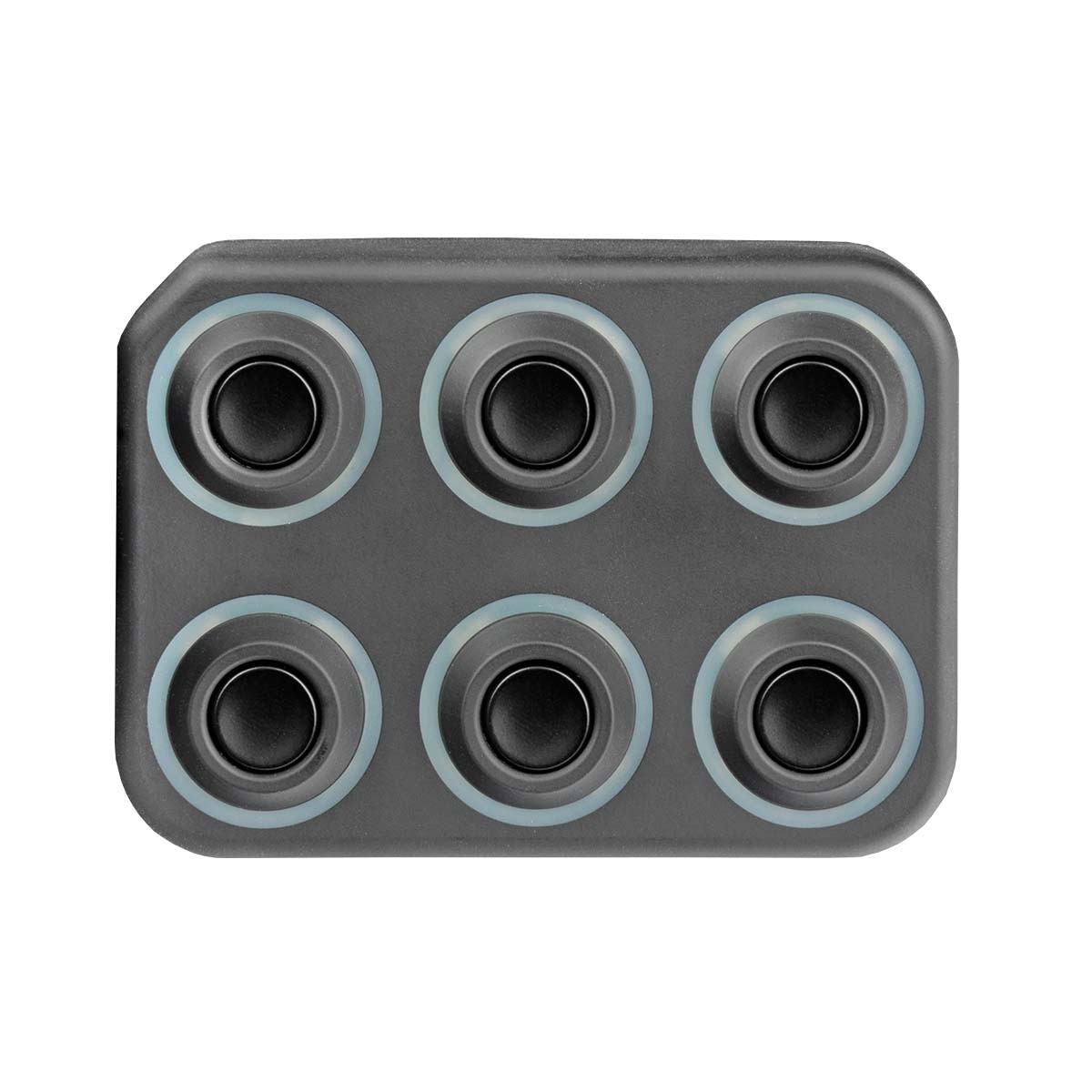

- Flexible CAN integration – configurable to any CANopen, J1939, or NMEA 2000 protocol (multiple baud rate).

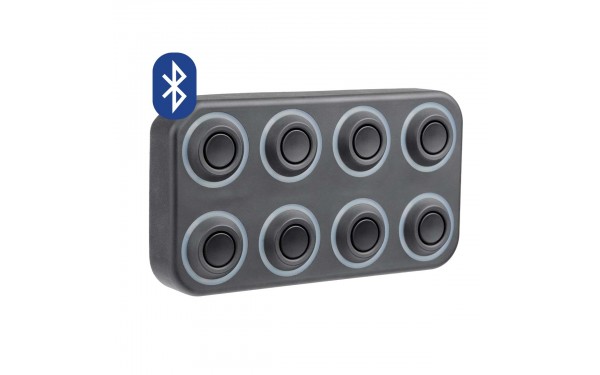

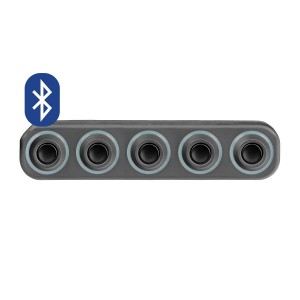

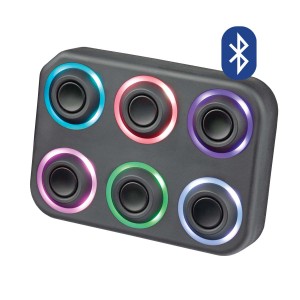

- Bluetooth models available – use a smartphone to remotely control each button of the keypad.

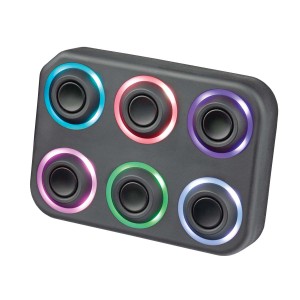

- Illuminates in a range of colours, user selectable.
- Dimmable illumination.
- LED backlit icons.

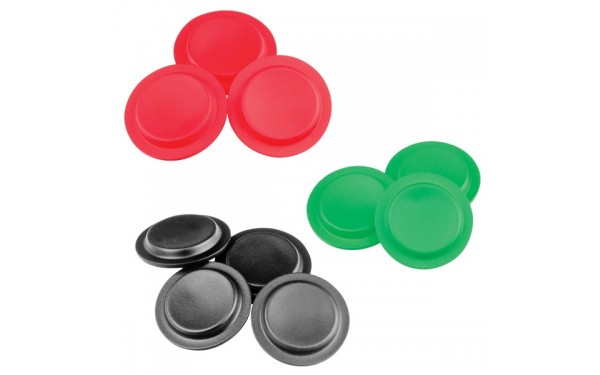

- Switch inserts can be laser etched.
- Vertical/horizontal mount.
- Low current draw.

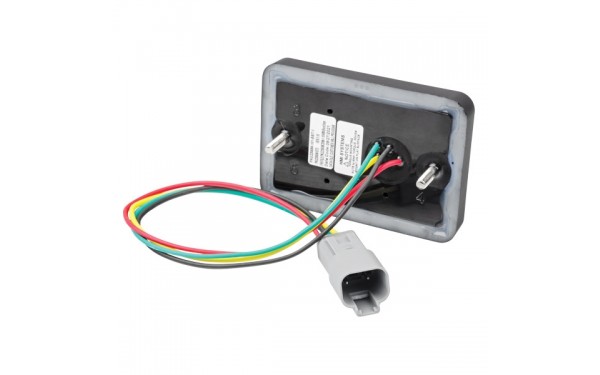

- TE DEUTSCH compatible connector.
- Environmentally sealed – IP67.
- Made in North America.
- Configurations: 5, 6, 8 & 12 Button
- Voltage: 9-32V
- Current Draw: 1.0A @ 12V Maximum
-
CAN: CANopen
SAE J1939
NMEA 2000 - Housing Material: PC PBT Alloy Plastic Resin
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Designed for Class 1 ES-Key distributed multiplex and V-MUX peer-to-peer networks.
- Provide control and indication of outputs configured within the network database.
- Programmable switching and indication function.
- Rocker modules use optical interrupters – no contacts.
- Display LED pattern to indicate a variety of errors for easy diagnosis.
- TE DEUTSCH compatible connector.
- Wide range of accessories including actuator styles and CAM configurations available.
- Front face environmentally sealed – IP68.
- Made in North America.
- Configurations: 4, 6 & 8 Switch
- Voltage: 10-32V
- Current Draw: 350 mA @ 13.8V
-
CAN: SAE J1939
250/500 Kbits/second - Connector: DT Style – 6 Pin
- Construction: Polycarbonate
- Shock: MIL-STD-202 213-1
-
IP Rating: IP68
Face Only -
Approvals: CE
Flame Test per Standard UL94V-0 - Operating Temp: -40°C to 85°C
