Electrical Centres

Catalogue Downloads:

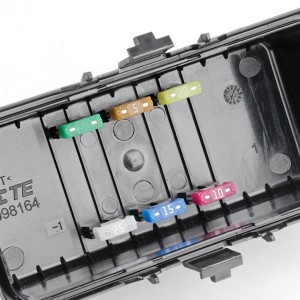

  • FH602 & FH603 kits can seal to IP67 when used with a Microplex CAN Controller or 280 series relays.
  • Bases can be linked together using interconnecting guides.

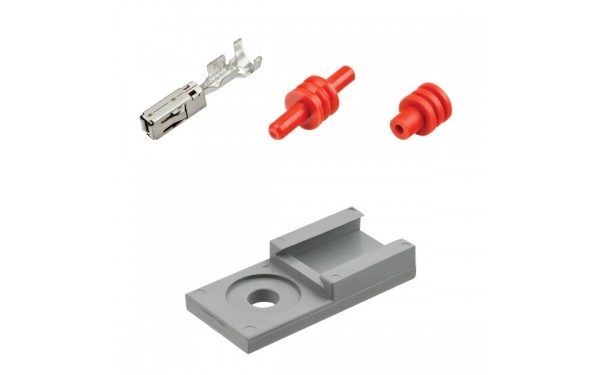

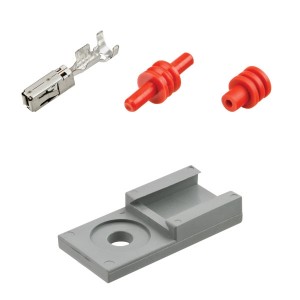

  • Kits supplied with all required components including contacts, seals and cavity plugs.
  • Locking bracket can be easily released – no tools required.

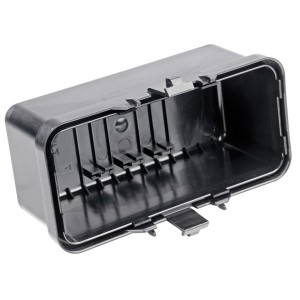

  • 12 cavity mounting bases suiting 2.8mm blade size.
  • Suitable for Mini (ATM) fuses & circuit breakers, 280 series micro relays, and IONNIC's Microplex CAN Controllers.
  • Made in Europe.
  • Housing: PA66 Nylon
  • Operating Temp: Melting Point 260°C
  • IP Rating: IP67
    FH602-KIT
    FH603-KIT

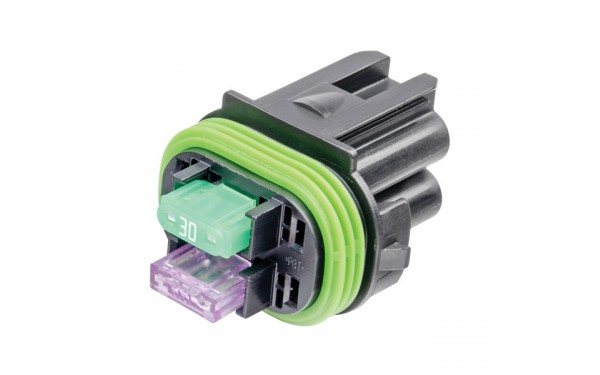

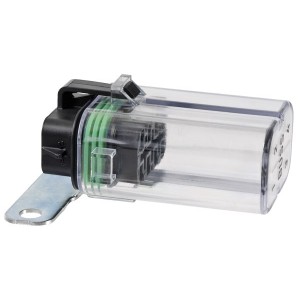

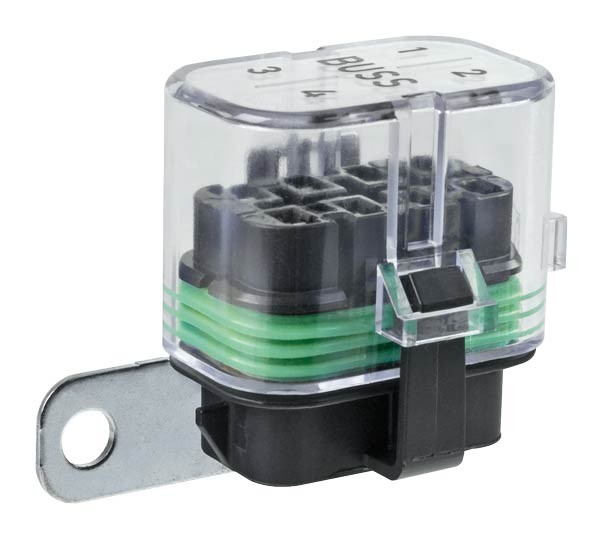

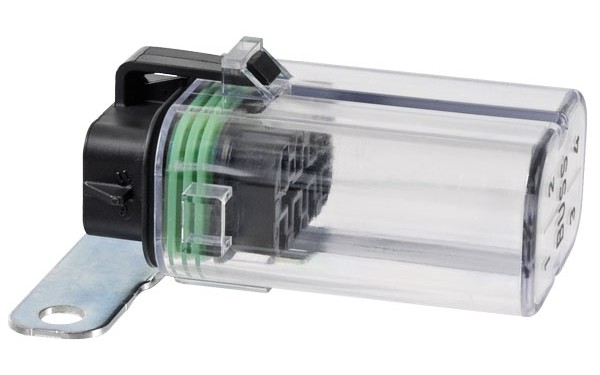

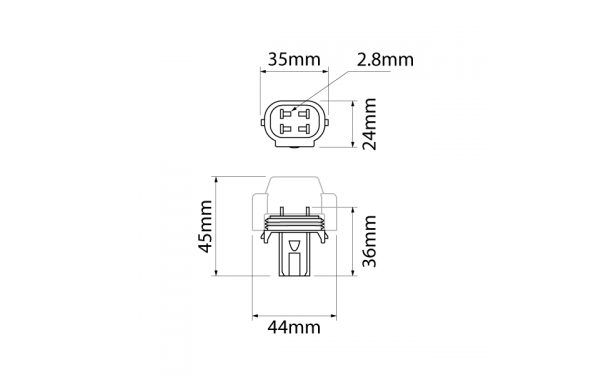

  • Designed to accept up to;
    - 2 micro 280 relays.
    - 4 mini blade fuses / circuit breakers.
    - 1 micro 280 relay & 2 mini blade fuses / circuit breakers.
  • Compact size.
  • Easy mounting.
  • Eliminates excess wiring.
  • Clear cover for protection & easy visiual inspection.
  • High qulaity Packard™ terminals.
  • Environmentally sealed.
  • Current Rating: 120A max.
  • Cover: Polycarbonate
  • Body: Thermoplastic
  • Seal: Silicon Rubber
  • Terminals: Tinned Brass
  • Mount: Zinc Plated Steel
  • Operating Temp: -40°C to 125°C
  • IP Rating: IP66

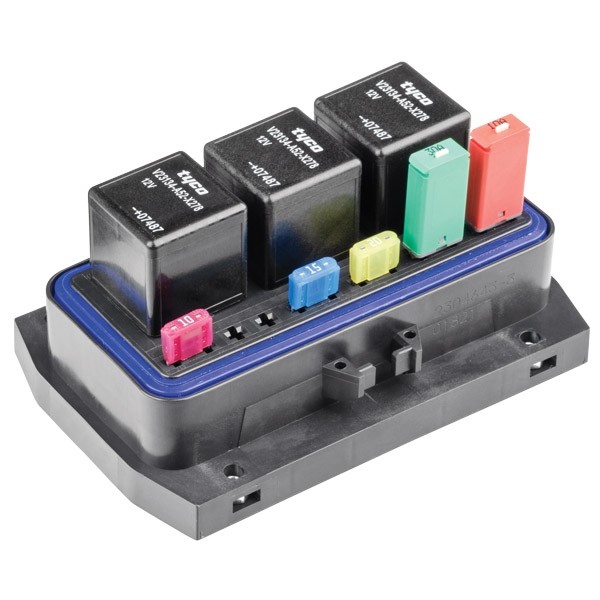

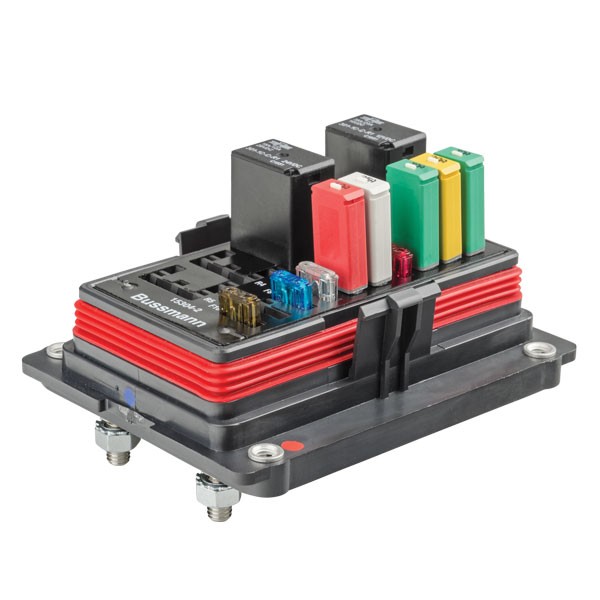

  • Mini fuse and relay panels.
  • Efficient power distribution in a rugged compact form for applications in marine, construction, agriculture, heavy trucking, specialty vehicles.
  • Weather tight enclosure – IP66, when cover, cable seals, and cavity plugs are installed.
  • Bussed or non-bussed models.
  • User configurable model accepts ATM blade fuses / circuit breakers & IONNIC Micro 280 relays.

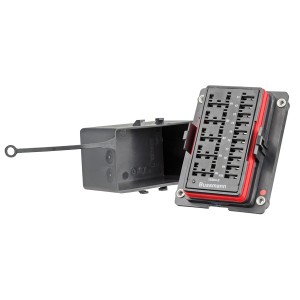

  • Bussed model accepts 5 x Micro relays & 10 x ATM blade fuses / circuit breakers.
  • Current Rating: Bussed model
    80A via M6 stud
    Terminals 30A

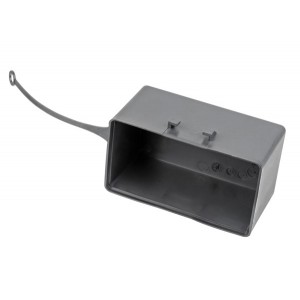

  • Cover: Thermoplastic
  • Body: Thermoplastic
  • Seal: Silicon Rubber
  • Terminals: Tinned Brass
  • Operating Temp: -40°C to 125°C
  • IP Rating: IP66

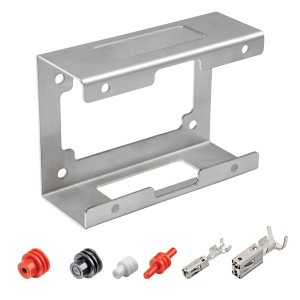

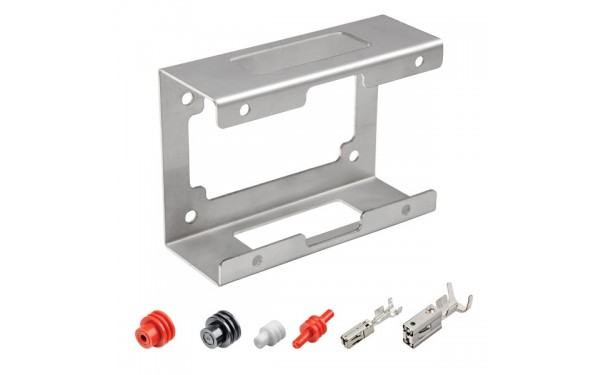

  • Kits supplied with all required components including contacts, seals, mount, cover and housing.

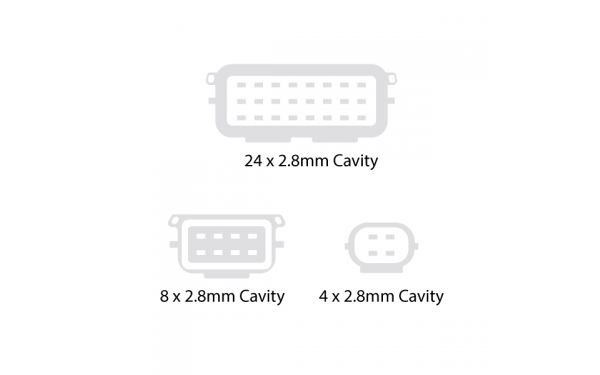

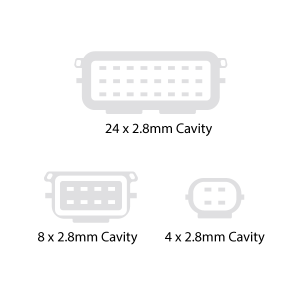

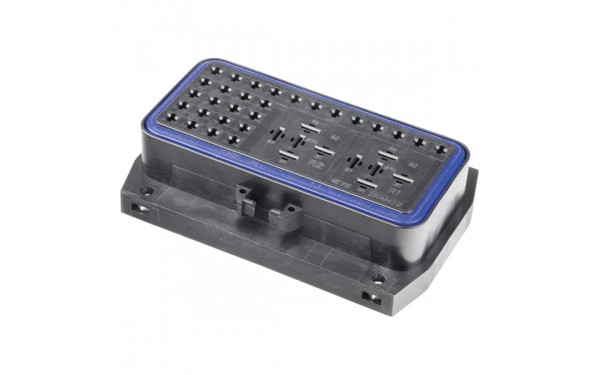

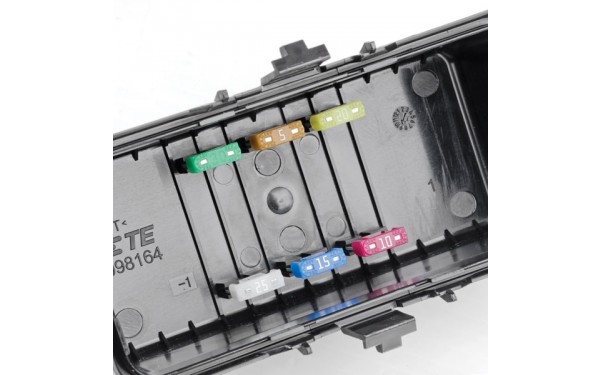

  • Available from 4 to 60 cavity configurations, 2.8mm & 6.3mm blade sizes.
  • Ideal for conveniently and securely networking multiple fuses, relays and circuit breakers.
  • Multiple Contact Point (MCP) contacts confirm component retention and provide a reliable connection even in high vibration environments.

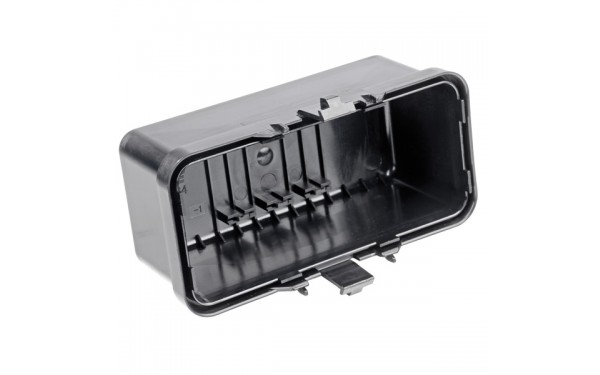

  • Heavy duty thermoplastic housings designed to withstand severe vibration and mechanical shock from harsh environments.
  • Environmentally sealed – IP67, when installed to manufacturer's specifications.
  • Cover: Thermoplastic
  • Body: Thermoplastic
  • Seal: Silicone Rubber
  • Terminals: Tin-plated Copper Alloy
  • Operating Temp: -40°C to 80°C
  • IP Rating: IP67
