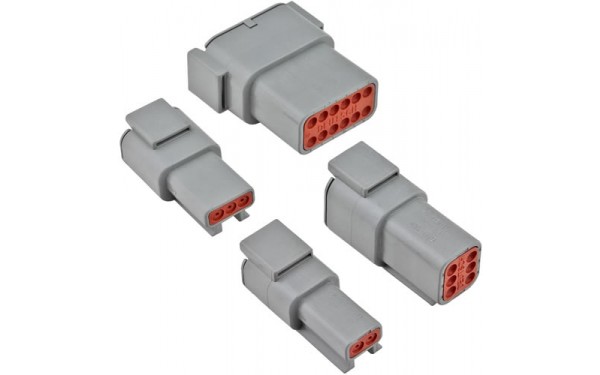

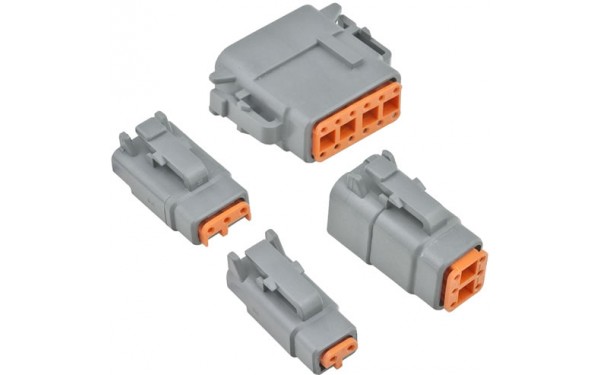

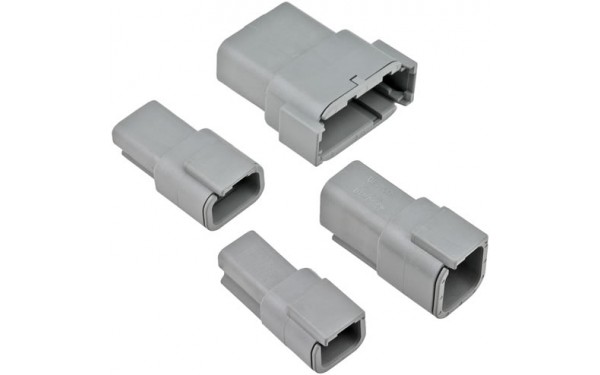

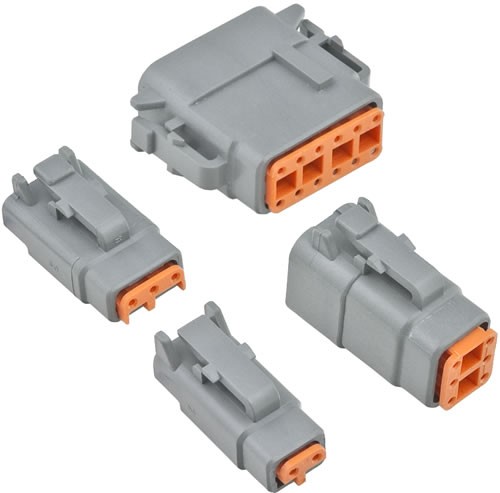

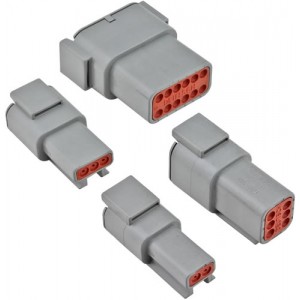

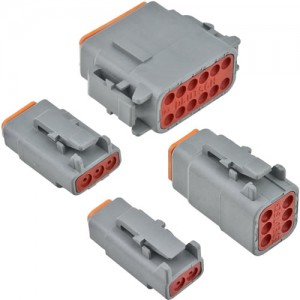

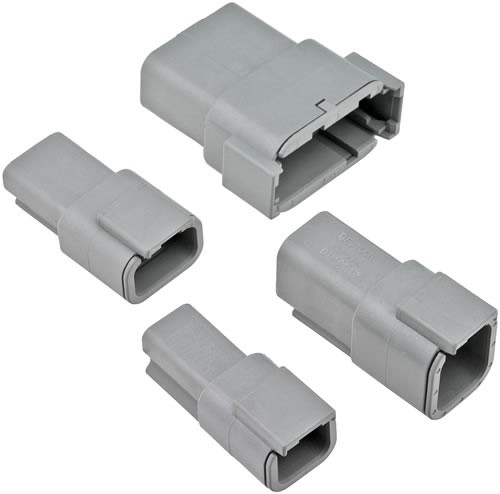

DTM Series

  • Genuine TE DEUTSCH Connectors.
  • Environmentally sealed – IP68, IP6K9K, when installed to manufacturer's specifications.
  • 2, 3, 4, 6, 8 and 12 cavity arrangements.
  • Latched mating.
  • Wedgelocks ensure contact alignmen and retention.
  • Accepts size 20 contacts, each with 7.5A continuous capacity.
  • Available in Kits with Solid, or Solid – Gold plated contact options.
  • Each Kit contains all components required to make both sides of a connection

January 2022 – Temporary Green Housing Change
Due to material shortages, some green housing connectors may use a grey housing with a green seal retention cap, until further notice.

  • Housing: Thermoplastic
  • Seal: Silicon Rubber
  • Contacts: Size 20
  • Contact Rating: 7.5A @ 125℃
  • Shock: 50G
  • Vibration: 20G rms 10 – 2000Hz
  • Approvals: 20mm Flame Test per Standard UL-94
  • Ingress Protection: IP68
    IP6K9K
  • Operating Temp: -55­­°C to 125°C
  • Genuine TE DEUTSCH Connectors.
  • Environmentally sealed – IP68, IP6K9K, when installed to manufacturer's specifications.
  • 2, 3, 4, 6, 8 and 12 cavity arrangements.
  • Latched mating.
  • Wedgelocks ensure contact alignment and retention.
  • Accepts size 20 contacts, each with 7.5A continuous capacity.
  • Available in Kits with Solid, or Solid – Gold plated contact options.
  • Each Kit contains all components required to make both sides of a connection.

January 2022 – Temporary Green Housing Change
Due to material shortages, some green housing connectors may use a grey housing with a green seal retention cap, until further notice.

  • Housing: Thermoplastic
  • Seal: Silicon Rubber
  • Contacts: Size 20
  • Contact Rating: 7.5A @ 125℃
  • Shock: 50G
  • Vibration: 20G rms 10 – 2000Hz
  • Approvals: 20mm Flame Test per Standard UL-94
  • Ingress Protection: IP68
    IP6K9K
  • Operating Temp: -55­­°C to 125°C
