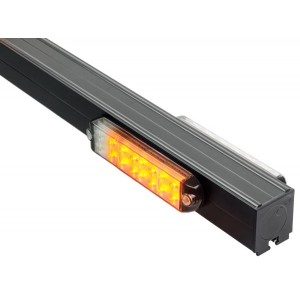

IONNIC Minebar 1275mm
- New streamline minebar range featuring all premium products including:
– IONNIC 103 LED beacon.
– Nordic CANIS GO 410 worklamp.
– Brigade tonal and bbs-tek reverse alarms. - Designed and manufactured in Australia from high quality components.
- Models also available with forward facing turn signal LEDs.
- All minebars equipped with ADR approved IONNIC LED combination lamps – stop, tail, indicator & reverse lamps.
- Extruded aluminium bar providing greater strength and adaptability.
- Stepped edge allows for the use of Rhino-Rack® mounting kits.
- Multi-voltage.
- Voltage: 12-24V
- Length: 1275mm
- Beacon Type: IONNIC 103 LED
-
Reverse Alarm: Brigade Tonal 97dB(A)
Brigade bbs-tek 92dB(A) - Signal Lamp Type: IONNIC Slimline LED
- Base: Powder Coated Aluminium
- Harness: 4m
Catalogue Downloads
- New streamline minebar range featuring all premium products including:
– IONNIC 103 LED beacon.
– Nordic CANIS GO 410 worklamp.
– Brigade tonal and bbs-tek reverse alarms. - Designed and manufactured in Australia from high quality components.
- Models also available with forward facing turn signal LEDs.
- All minebars equipped with ADR approved IONNIC LED combination lamps – stop, tail, indicator & reverse lamps.
- Extruded aluminium bar providing greater strength and adaptability.
- Stepped edge allows for the use of Rhino-Rack® mounting kits.
- Multi-voltage.
- Voltage: 12-24V
- Length: 1275mm
- Beacon Type: IONNIC 103 LED
-
Worklamp: Nordic CANIS GO 410
Flood pattern -
Reverse Alarm: Brigade Tonal 97dB(A)
Brigade bbs-tek 92dB(A) - Signal Lamp Type: IONNIC Slimline LED
- Base: Powder Coated Aluminium
- Harness: 4m
Catalogue Downloads

- Developed to control lighting and other electronic automotive accessories.
- Incorporates the latest in onboard circuit protection and monitoring technology.
- 3 user configurable master switches.
- All switches can be set to latching or momentary.
- Mounting point on back of switch panel – use with common 1/4" thread adjustable mounts.
- Epoxy encapsulated receiver module for enhanced moisture and vibration protection.
- Includes 4 decals.
- 8 outputs (6A each).
- Multiple outputs can be combined to allow switching of high current loads.
- Eliminates excess wiring.
- Multi-voltage.
- Compact design.
- Voltage: 10-24V
-
Circuits: 8 Individual
3 Programmable -
Current Rating: 6A Max. per circuit
40A Total - Materials: ABS
- Controller Harness: 4.5m
- Operating Temp: -40°C to 85°C
-
Note: Kit Contents:
1 x Switch Panel
1 x Receiver Module
4 x Overlay Function Decals
Catalogue Downloads
- Significantly reduce the time required for each Minebar.
- Connects to the CAN, providing functionality for a Minebar (stop-tail/indicator/reverse lights, and reversing alarm).
- Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.
- Vehicle warranty concerns alleviated as no physical connection is made to existing CAN wiring.
- Ultra-compact Microplex CAN controller with holder rated to IP67.
- Microplex is pre-programmed to be compatible with the Ford Ranger/Everest system.
- Configurations: Ford Ranger & Everest
- Voltage: 12–24V
-
CAN: SAE J1939
CAN Open
DeviceNet
NMEA 2000 - Current Draw: 35mA @ 24V
- Operating Temp: -40°C to 70°C
Catalogue Downloads
- Significantly reduce the time required for each Minebar and Hand Brake Alarm installation.
- Connects to the CAN, providing functionality for a Hand Brake Alarm and Minebar (stop-tail/indicator/reverse lights, and reversing alarm).
- Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.
- Vehicle warranty concerns alleviated as no physical connection is made to existing CAN wiring.
- Ultra-compact Microplex CAN controller with holder rated to IP67.
- Microplex is pre-programmed to be compatible with the Ford Ranger/Everest system.
-
Configurations: Ford Ranger & Everest
Inc. Hand Brake Alarm - Voltage: 12–24V
-
CAN: SAE J1939
CAN Open
DeviceNet
NMEA 2000 - Current Draw: 35mA @ 24V
- Operating Temp: -40°C to 70°C
