Electronic Switch Module

  • Electronically monitored switch centre with inbuilt circuit monitoring and protection.
  • Each output set to 10A circuit protection.
  • 10 inputs, 13 outputs.
  • 1 grouped input – 4 separate outputs
  • On board LEDs indicate circuit output.
  • Saves space and installation time.
  • Multi-voltage
  • Environmentally sealed - IP67.
  • Available in positive, or positive/negative switched models.
  • Voltage: 12-24V
  • Current Draw: 10mA @ 13.8V
  • Inputs: 10
  • Outputs: 13
  • Current Rating: 10A Max. Per Output
    50A Total Output
  • Housing Material: Polycarbonate
  • Ingress Protection: IP67
  • Approvals: C-Tick
  • Operating Temp: -40°C to 85°C
  • Allows for the installation of electrial accessories to late model vehicles without creating additional load, avoiding system errors and fault codes.
  • Electronically monitored switch module with inbuilt circuit monitoring and protection.
  • Each output surge protected to 8A.

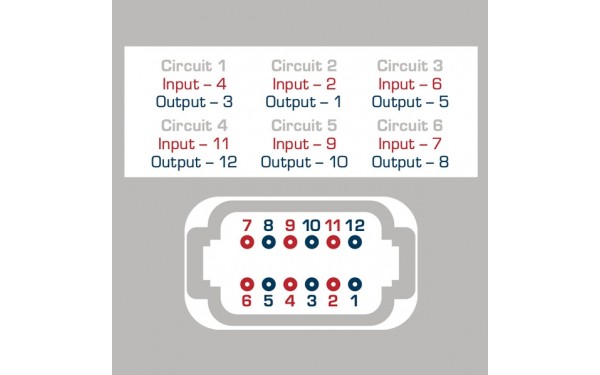

  • 6 inputs, 6 outputs – 12V.
  • 5 inputs, 5 outputs – 24V.
  • Compact design.
  • Save space and installation time.
  • Eliminates excess wiring.
  • Multi-voltage.
  • Epoxy filled for enhanced moisture and vibration protection.
  • Voltage: 12-24V
  • Inputs: 6 x 12V
    5 x 24V
  • Outputs: 6 x 12V
    5 x 24V
  • Current Rating: 7A Max. Per Output
    20A Total Output
  • Switch: Positive
  • Housing Material: ABS
  • Cable Length: 120mm
  • Operating Temp: -40°C to 85°C
