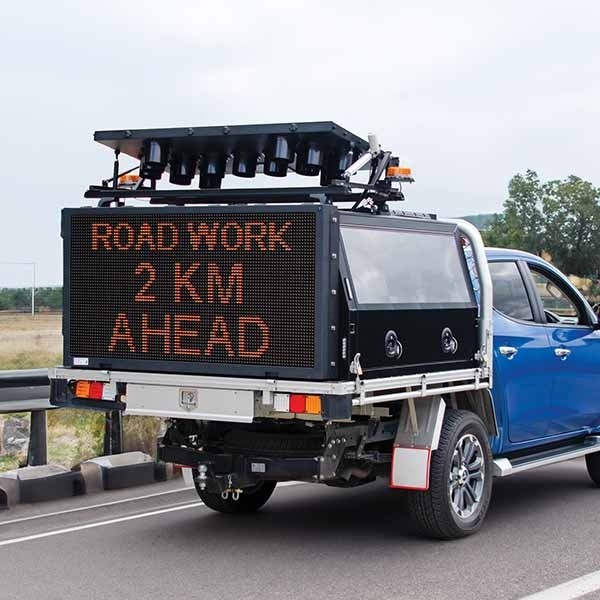

Variable Message Signs

Ionnic

Features

  • 3 sizes available.
  • Aluminium encased 5” touchscreen LCD controller.
  • RGB modules allowing wide range of colour options.
  • Realtime image preview.
  • Automatic brightness control (message board).
  • Hundreds of preloaded colour graphics.
  • Intuitive interface makes creating, editing and saving graphics & messages easy.
  • Wide, consistent viewing angle – 120º.
  • Passive cooling – no fans.
  • Environmentally sealed – IP66 (message board).
  • 2 year warranty.

Specifications

  • Voltage: 12 & 24V Models
  • Current Draw: Size A - [email protected]
    Size B - [email protected]
    Size C - [email protected]
  • Weight: Size A - 98kg
    Size B - 135kg
    Size C - 275kg
  • Light Source: LED Modules
    Size A - 72 x 48 (3456)
    Size B - 97 x 48 (4656)
    Size C - 120 x 72 (8640)
  • Controller: Touch Screen
  • Power Harness: 15m
  • Controller Harness: 15m
  • IP Rating: IP66
  • Operating Temp: -20°C to 50°C
