Intelli-Tank

Class 1

Features

  • Easy calibration (1 to 9 point) suitable for all tanks of any size or shape.
  • Programmable output, typically used for auto-fill function, low/high tank level warning etc.
  • One wire data link allows for unlimited optional remote displays.

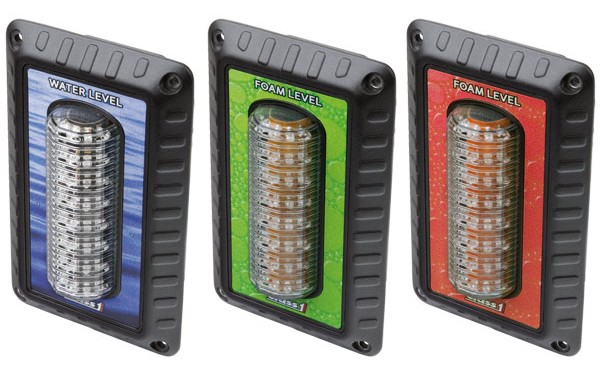

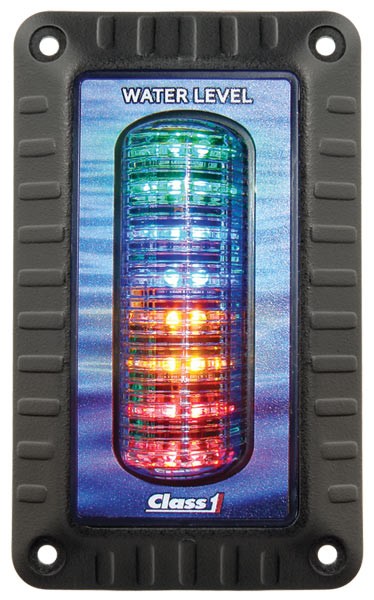

  • Ultra bright LEDs easily viewable from 180º to 9 precise tank levels.
  • Custom scrolling text sequences on power up.
  • Built-in self diagnostics displayed through scrolling text.

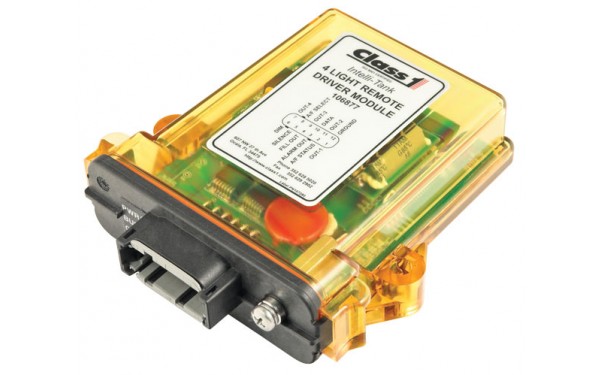

  • Optional remote driver module used to control external lights, sirens etc concurrent to ITL display.
  • Uses proven industrial pressure transducer instead of probes.
  • Multiple programmable features inbuilt, including LED dimming level and anti-slush function.
  • Rocker switch sized Mini Remote Indicator available.

Specifications

  • Voltage: 9-32V
  • Current Draw: 100mA @ 13.8V
  • Output: Digital 250mA ground
  • CAN: SAE J1939
    Es-Key compatible
  • Materials: Polycarbonate
  • Bezel: Die-cast Alloy
  • Connection: Deutsch
    DT06-12SB
  • IP Rating: IP67
  • Approvals: SAE J1113
    CE
  • Operating Temp: -40°C to 85°C
