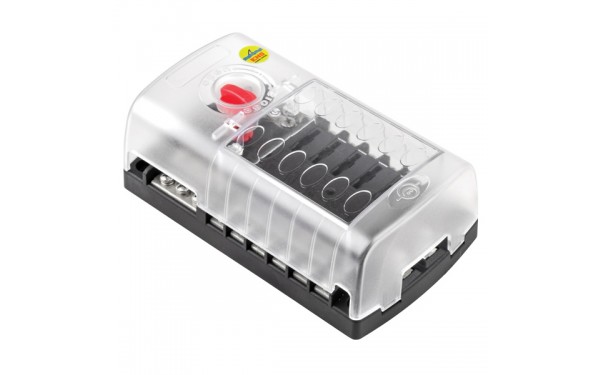

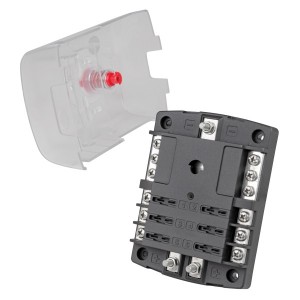

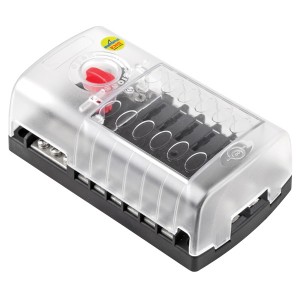

Blade Fuse Panel Marine

Ionnic

Features

  • 6 or 12 fuse models.

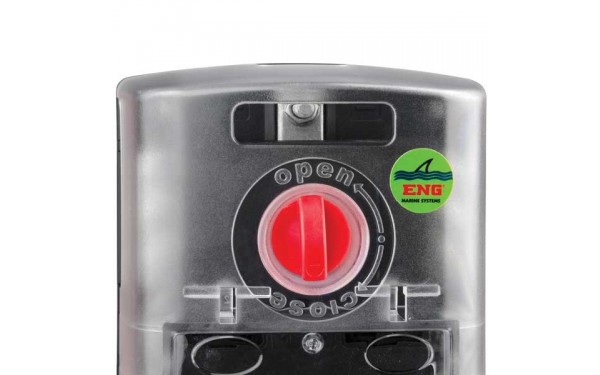

  • Lockable splash covers.

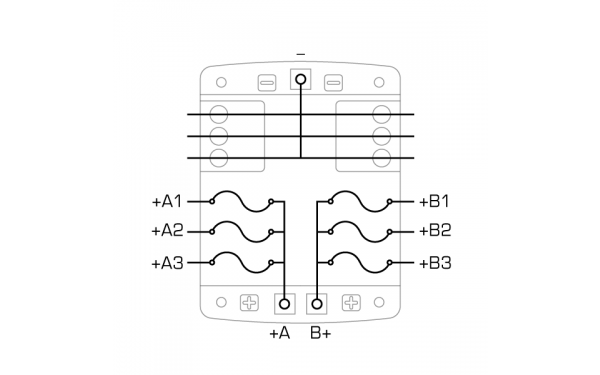

  • Dual inputs for power on both models.
  • Suits ATC/ATO fuses/circuit breakers.
  • 4.3mm screw terminals.

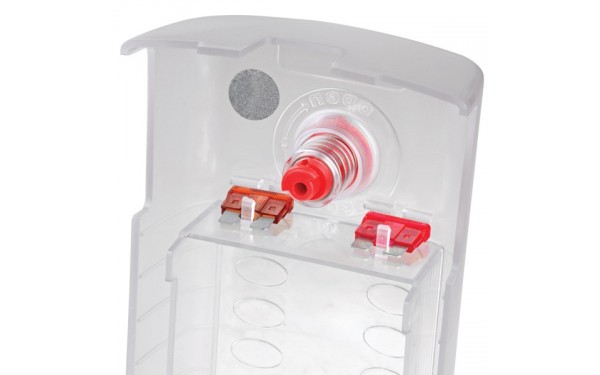

  • Hold 2 spare fuses inside cover.
  • Supplied with 84 icon decal set.
  • 6 or 12 circuit negative ground bus.
  • Inbuilt negative busbar popular in marine applications where ground returns need to run back to the battery.
  • Ideal for use with trucks, buses, boats & RV’s.

Specifications

  • Type: ATC / ATO Blade
  • Input Current: Total – 100A
  • Current Rating: 30A per circuit
  • Housing Material: Thermoplastic
  • Cover: Polycarbonate
  • Contacts: Tinned Copper
  • Operating Temp: -20°C to 85°C
