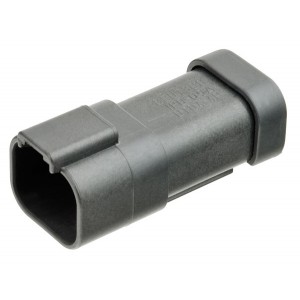

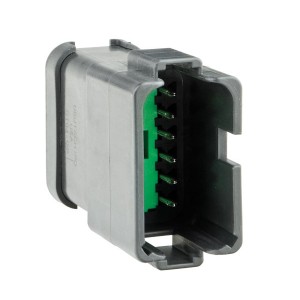

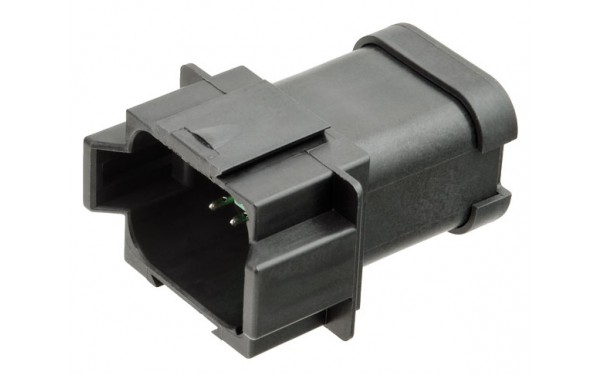

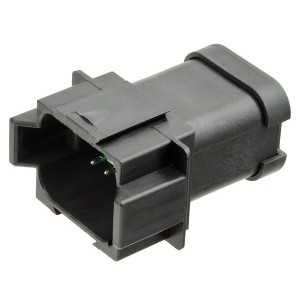

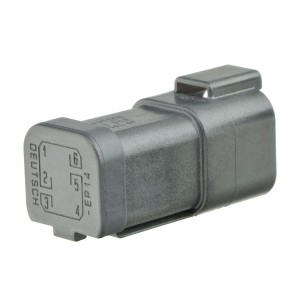

Bussed Connectors
- Genuine TE DEUTSCH Connectors.
- Designed for use in heavy duty applications where multiple circuits require a common electrical pathway
- Industry proven
- Environmentally sealed
- Integrated bussbars with standard Deutsch contacts
- Mate with standard DT plugs and meet all the performance specifications for the DT Series
- Available in multiple buss configurations using standard size 16 contacts
- Housing Material: Thermoplastic
- Seal: Silicon Rubber
- Contact Rating: 13A Max. per contact
- Contacts: Nickel plated
- Shock: 50G
- Vibration: 20G rms 10 - 2000 Hz
Catalogue Downloads

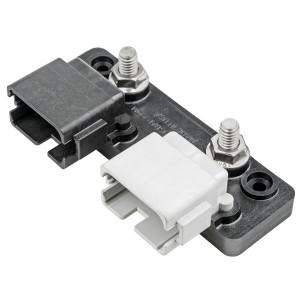

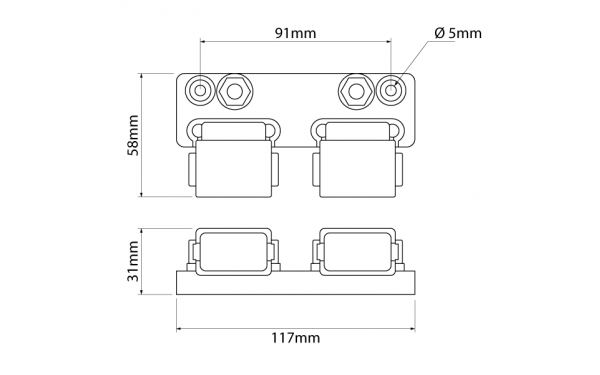

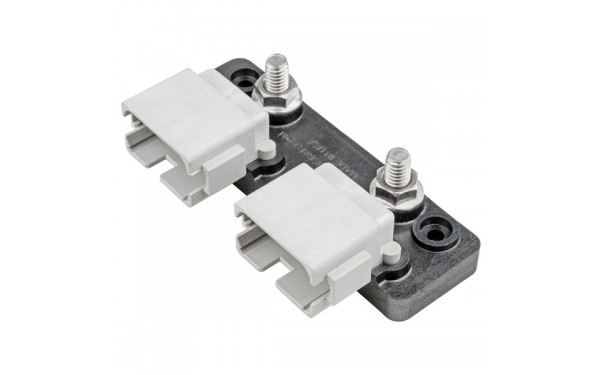

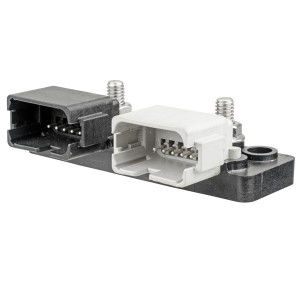

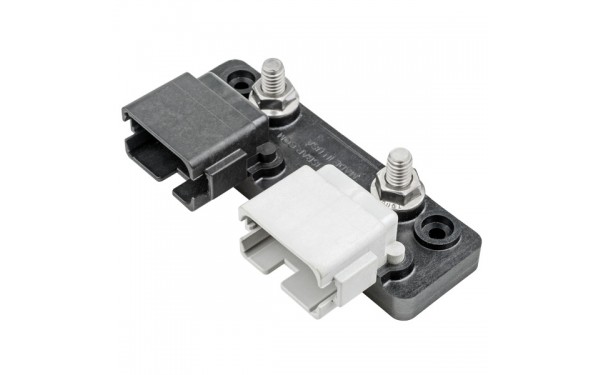

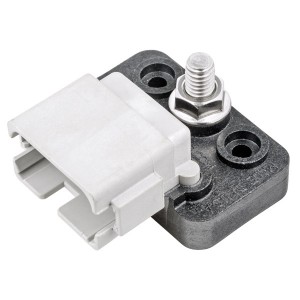

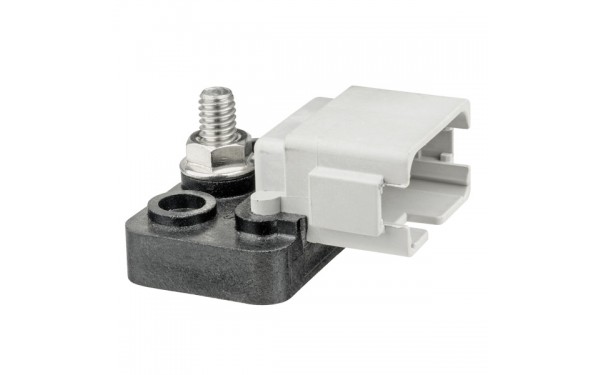

- Manufactured using original Deutsch DT Series connectors.
- Encapsulated, plug & play design.
- Environmentally sealed.
- Ignition protection – SAEJ1171.
- Compact size.
- Quick & easy install time compared to traditional buss bar systems.
- Maintenance free design.
- Made in USA.
- Type: Single, Double & Split
- Connector: Deutsch DT Series 12 Pin
- Contacts: Size 16
- Contact Rating: 13A @ 125℃
- Buss: C1100 Electrolytic Copper
- Studs: 5/16–18" Stainless Steel
- Base: RETPU – Injection Moulded
Catalogue Downloads

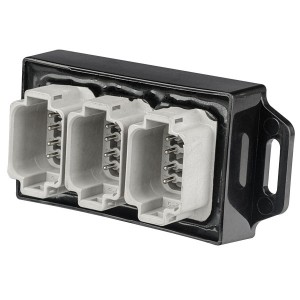

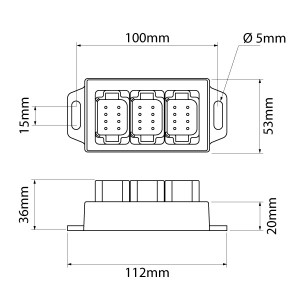

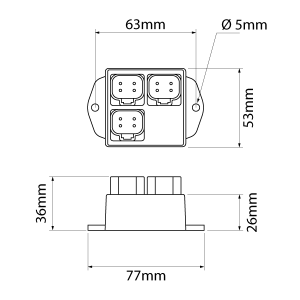

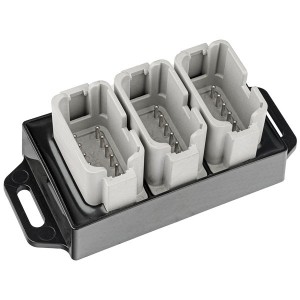

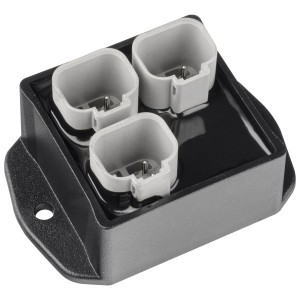

- Designed and manufactured by IONNIC, using genuine TE DEUTSCH components.
- Compact, efficient design.
- TE DEUTSCH DT Series connectors.
- Environmentally sealed.
- Epoxy filled ABS housing.
- 4, 8 & 12 circuit models.
- Made in Australia.
- Outputs: 4, 8 & 12 circuit
- Connector: Deutsch DT Series
- Contacts: Size 16
- Current Rating: 10A per circuit
- Housing Material: ABS - Epoxy Filled
- Operating Temp: -40° C to 85°C
