Marine

  • Marine rated.
  • Manual reset with 'Push to Trip'.
  • Panel mount.
  • Weatherproof.
  • Stainless hardware & studs.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Switchable
  • Current Rating: 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A
  • Body: Thermoset plastic
  • Mount: Panel
  • Operating Temp: -40°C to 85°C
  • IP Rating: IP66
  • Approvals: SAE J553
  • Marine rated.
  • Switchable.
  • Surface mount.
  • Weatherproof.
  • Stainless hardware & studs.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Switchable
  • Current Rating: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 150A, 200A
  • Body: Thermoset plastic
  • Mount: Surface
  • Operating Temp: -40°C to 85°C
  • IP Rating: IP66
  • Standards: SAE J1625
    SAE J1171, CE

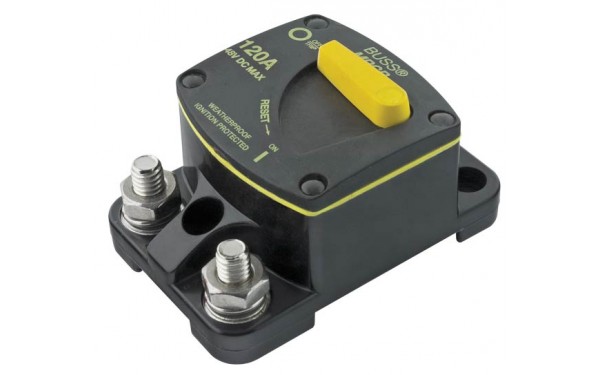

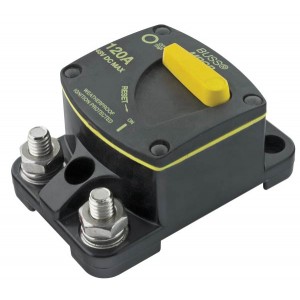

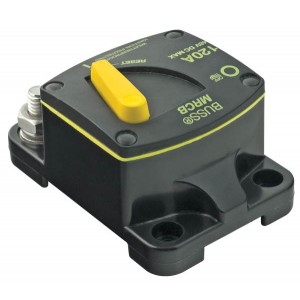

  • Marine rated.
  • Switchable.
  • Stainless hardware & studs.
  • Broad operation temperature.
  • Environmentally sealed - IP67.
  • Surface mount.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Switchable
  • Current Rating: 25A, 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 150A
  • Body: Thermoset plastic
  • Terminals: Stainless Steel
  • Mount: Surface
  • Operating Temp: -32°C to 82°C
  • IP Rating: IP67
  • Standards: SAE J1625
    SAE J1171
