Hand Brake Alarms
- Can be adapted to any vehicle.
- Self learning function automatically detects vehicle triggers for quick and easy installation.
- Designed to signal when hand brake is not engaged and vehicle door opens.
- Satisfies mine site requirements.
- 2 stage outputs.
- Compact easy installation.
- Suitable for positive and negatively switched vehicles/applications.
- Epoxy filled for enhanced moisture and vibration protection.
- Can be used as a general 2 stage alarm module.
- 2 year warranty.
- Voltage: 12-24V
- Current Rating: 2 x 4A @ 12V
- Body: ABS
- Wire Length: 150mm
- Operating Temp: -40°C to 70°C
Catalogue Downloads

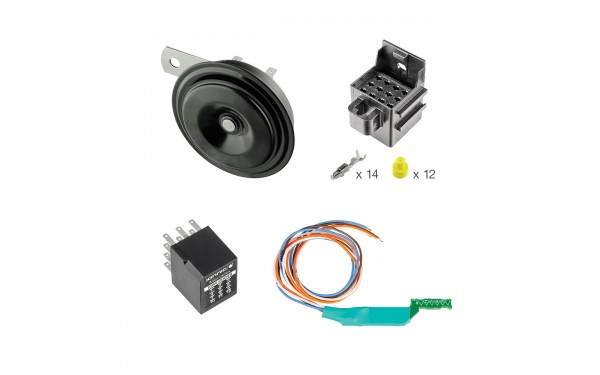

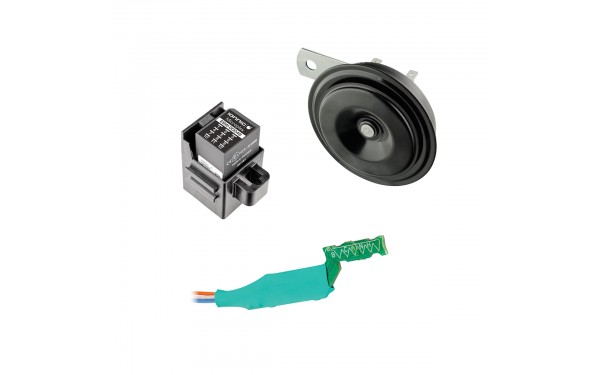

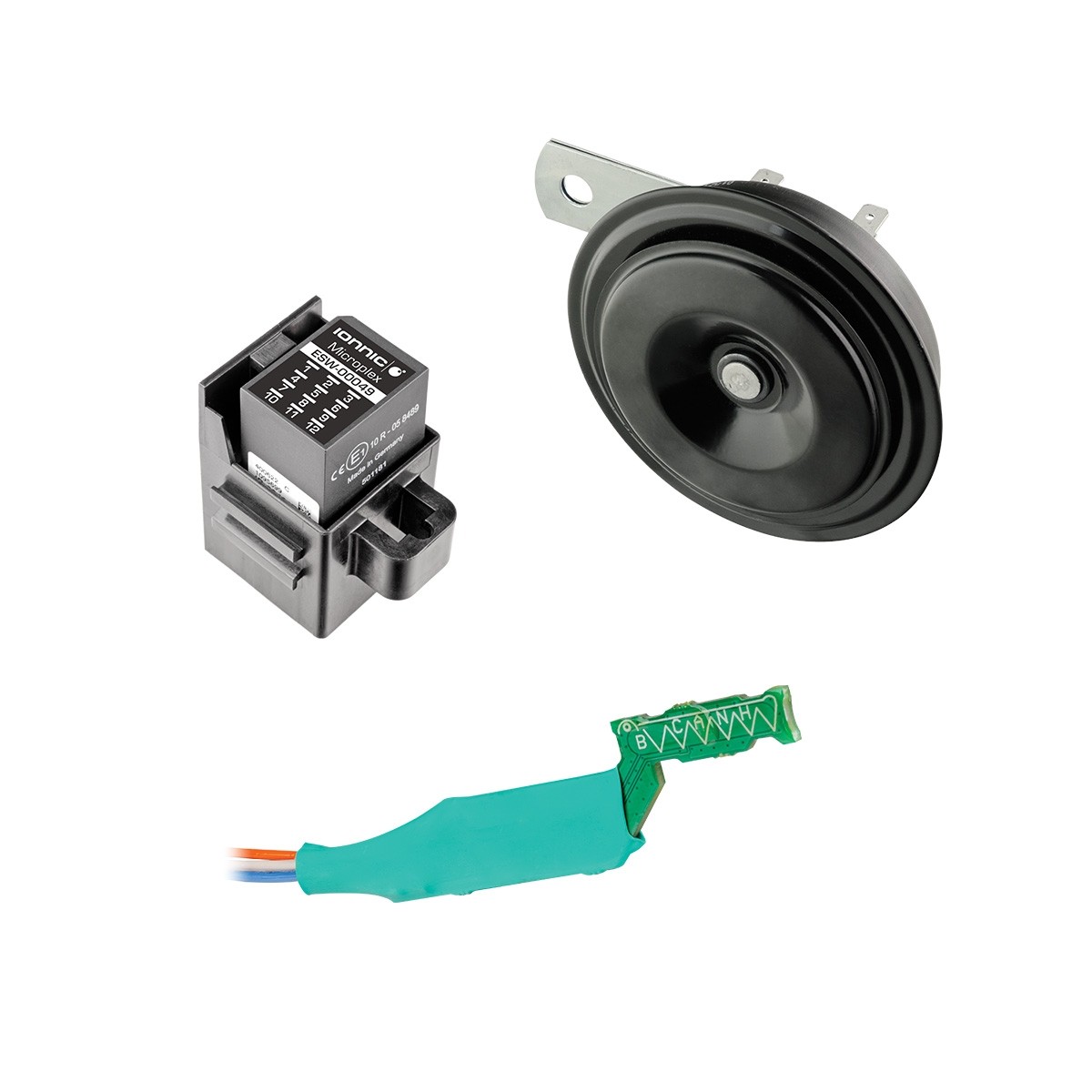

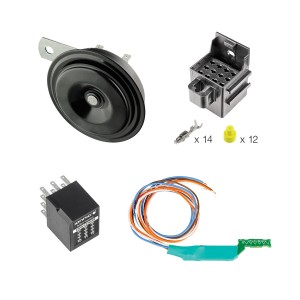

- Suits Isuzu N-Series trucks.
- Handbrake alarm kit providing alert when the driver's door is open and the handbrake is not engaged.

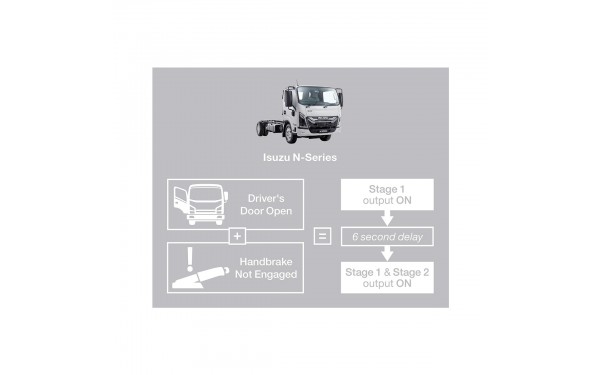

- Twin stage output. Stage 1 is immediate and Stage 2 has a 6 second delay.

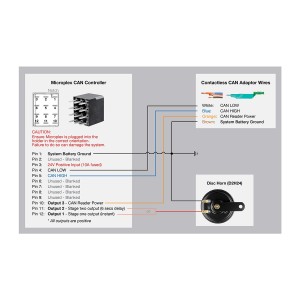

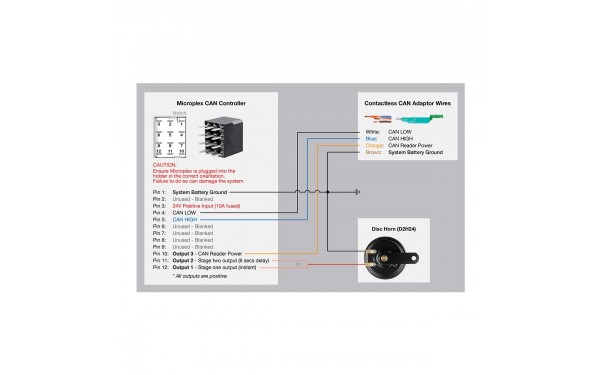

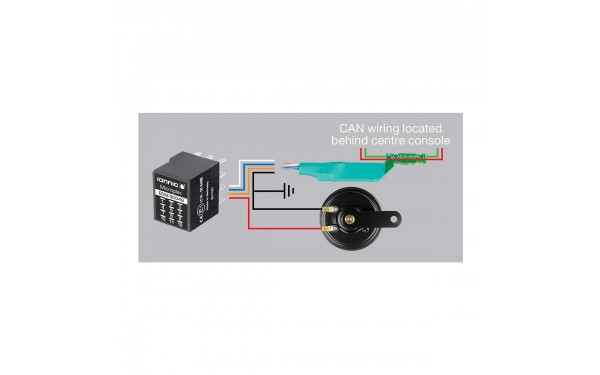

- Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.
- Custom-programmed Microplex CAN controller powers the system's functionality.
- Heavy duty disc horn for reliable audible alerts.
- Holder kit specifically designed for Microplex CAN controller.
- Voltage: 24V
- Current Draw: CAN Controller – 36mA
- Sound Level: Disc Horn – 110 dB(A) @ 1m
