MRS Displays

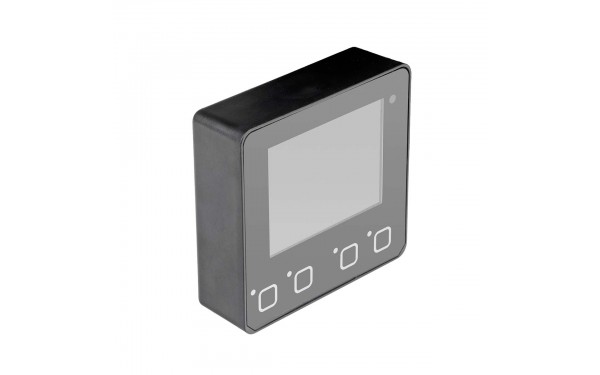

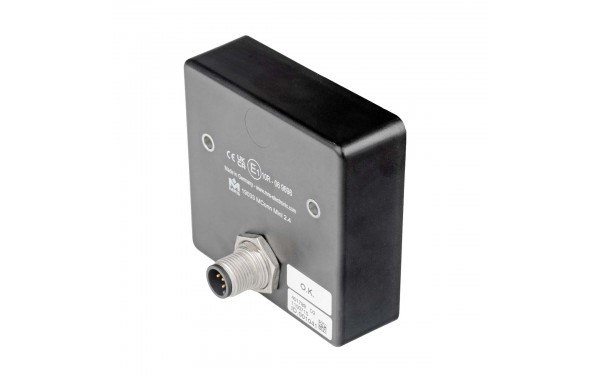

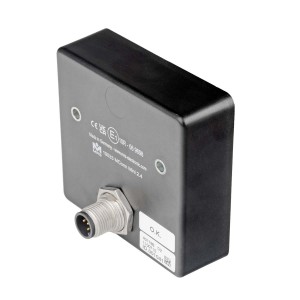

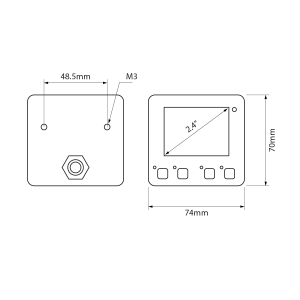

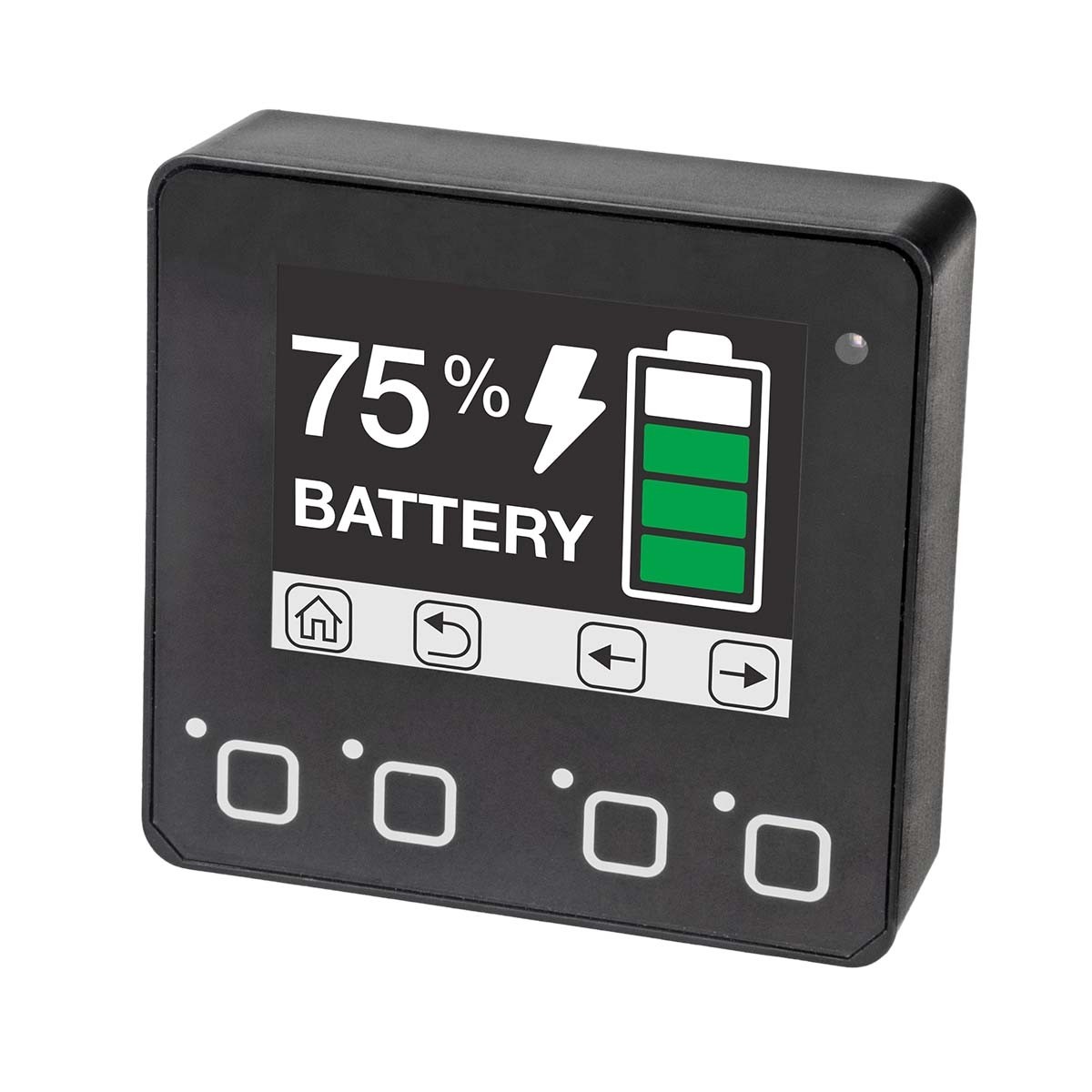

- 2.4" CAN based information display incorporating programmable switching.
- Application developed using C/C++.
- Compact and rugged design.
- Automatic dimming via light sensor.
- Portrait or landscape orientation.
- Resolution – 320 X 240.
- Environmentally sealed.
- Mount inside or outside of vehicle.
- Ideal for buses, municipal vehicles and caravans.
- Made in Europe.
- Screen Size: 2.4"
- Resolution: 320 x 240
- Voltage: 9-32V
- Current Draw: 60mA @ 12V
-
CAN: SAE J1939
CAN 2.0
CAN FD - Inputs: 1
-
Housing Material: PC/ABS
Autotex XEF200 - IP Rating: IP6K8K
- Operating Temp: -20°C to 60°C
Catalogue Downloads

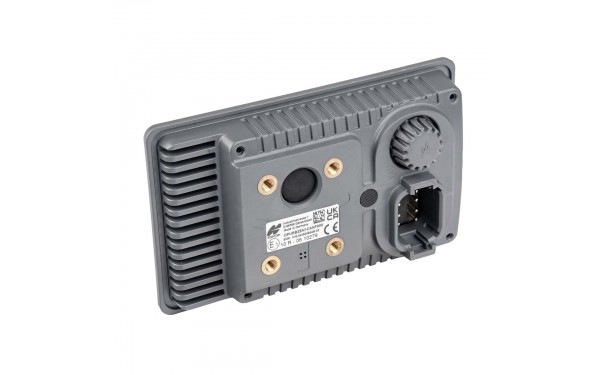

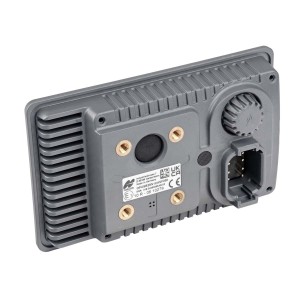

- 4.3" CAN based information display incorporating programmable switching.
- Capacitive touch screen.
- Inbuilt 92dB buzzer.
- Application developed using C/C++.
- Compact and rugged design.
- Automatic dimming via light sensor.
- Portrait or landscape orientation.
- Resolution – 480 X 272.
- USB-C for updates and data transfers in the field.
- Environmentally sealed.
- Mount inside or outside of vehicle.
- Ideal for buses, municipal vehicles and caravans.
- Made in Europe.
- Screen Size: 4.3"
- Resolution: 320 x 240
- Voltage: 9-32V
- Current Draw: 165mA @ 12V
-
CAN: SAE J1939
CAN 2.0
CAN FD - Inputs: 2
-
Housing Material: PC/ABS
Autotex XEF200 - IP Rating: IP66. IP67
- Operating Temp: -30°C to 75°C
Catalogue Downloads

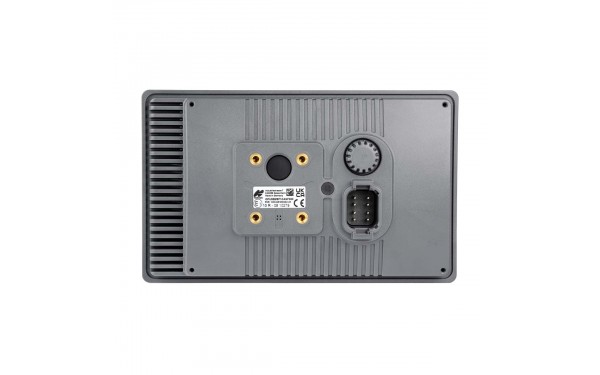

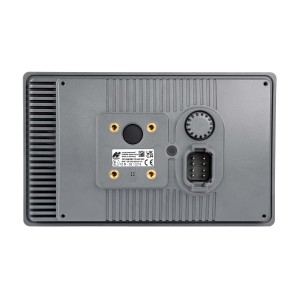

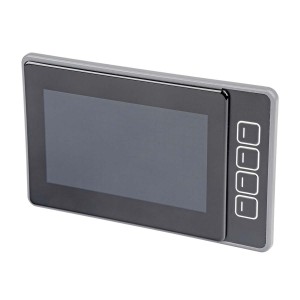

- 7" CAN based information display incorporating programmable switching.
- Capacitive touch screen.
- Application developed using C/C++.
- Compact and rugged design.
- Automatic dimming via light sensor.
- Portrait or landscape orientation.
- Resolution – 800 X 480.
- USB-C for updates and data transfers in the field.
- Environmentally sealed.
- Mount inside or outside of vehicle.
- Ideal for buses, municipal vehicles and caravans.
- Made in Europe.
- Screen Size: 7"
- Resolution: 800 x 480
- Voltage: 9-32V
- Current Draw: 390mA @ 12V
-
CAN: SAE J1939
CAN 2.0
CAN FD - Inputs: 2
-
Housing Material: PC/ABS
Autotex XEF200 - IP Rating: IP66. IP67
- Operating Temp: -30°C to 75°C
