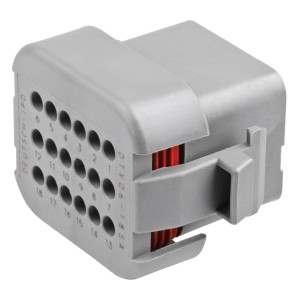

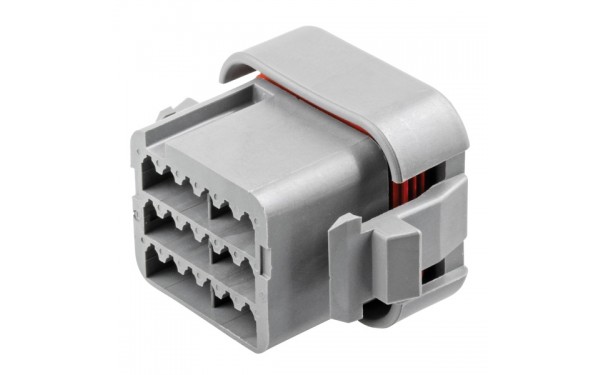

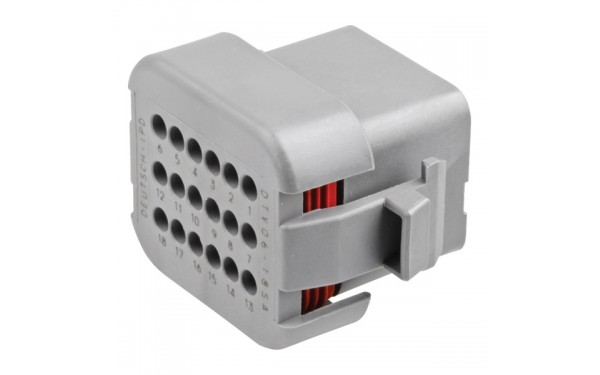

DTV Series
- Genuine TE DEUTSCH Connectors.
- 18 cavity arrangement.
- Protective end cap as standard.
- Environmentally sealed – IP68, IP6K9K, when installed to manufacturer's specifications.
- Accepts size 16 contacts, each with 13A continuous capacity.

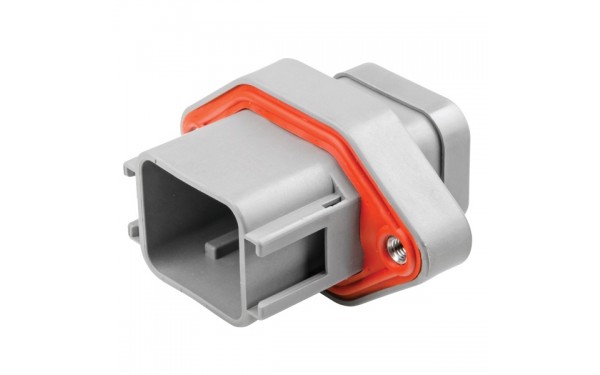

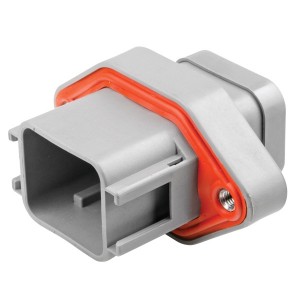

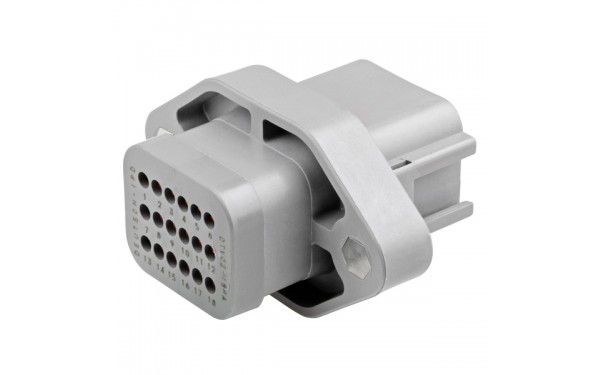

- Flange mount receptacle.
- Rectangular, thermoplastic housing.
- Latched mating.

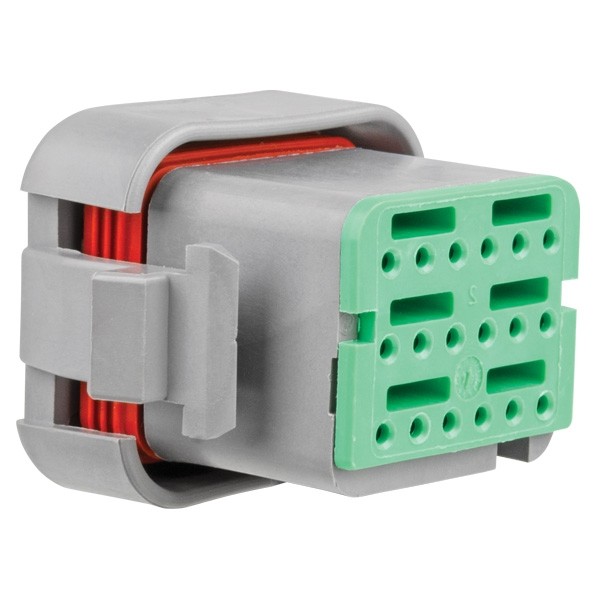

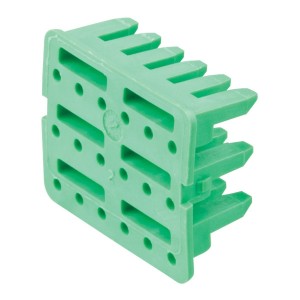

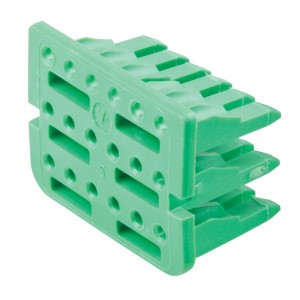

- Wedgelocks ensure contact alignment and retention.
- Housing: Thermoplastic
- Seal: Silicon Rubber
- Contacts: Size 16
- Contact Rating: 13A @ 125℃
- Shock: 50G
- Vibration: 20G rms 10 – 2000Hz
- Approvals: 20mm Flame Test per Standard UL-94
-
Ingress Protection: IP68
IP6K9K - Operating Temp: -55°C to 125°C
