Bolt In

  • Power distribution protection.
  • High current ratings.
  • Compact size.
  • Secure bolt-in connection.
  • Windows provide blown fuse indication.
  • Ideal for use in mining and emergency service vehicles, battery chargers and inverters.
  • Type: AMI
  • Current Rating: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 125A
  • Body: Thermoplastic
  • Mount: M5 @ 30mm centres
  • Terminals: Tin-plated brass
  • Power distribution protection.
  • High current ratings.
  • Compact size.
  • Secure bolt-in connection.
  • Colour-coded to current rating.
  • Ideal for use in mining and emergency service vehicles, battery chargers and inverters.
  • Type: AMG
  • Current Rating: 40A, 60A, 80A, 100A, 125A, 150A, 175A, 200A, 225A, 250A, 300A, 500A
  • Body: Thermoplastic
  • Mount: M8 @ 50.8mm centres
  • Terminals: Copper
  • Power distribution protection.
  • High current ratings.
  • Compact size.
  • Secure bolt-in connection.
  • Window provides blown fuse indication.
  • Ideal for use in mining and emergency service vehicles, battery chargers and inverters.

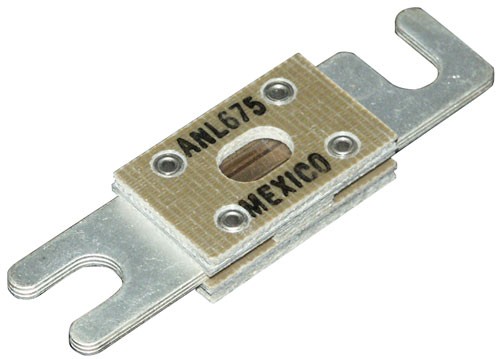

  • Type: ANL
  • Current Rating: 35A to 750A
  • Mount: M8 @ 62mm centres
  • Terminals: Tin-plated brass

Catalogue Downloads:

  • Fast-acting T-Class fuses help prevent equipment damage caused by short-circuit events.
  • Exceptional current limitation.
  • 200kA interrupting rating complies with NEC Section 110.9 for today's large capacity systems.
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements.
  • Type: T-Class
  • Current Rating: 300A, 350A, 400A
  • Mount: M10 @ 47mm centres
  • Terminals: Tin-plated brass
  • Approvals: CE, CSA, UL, RoHS

Catalogue Downloads
