Technical Systems
- SAE J1939 CAN engine message reception and Es-Key network controller.
- Digital circuit breakers on all positive outputs.
- Output ‘open load’ detection.
- Diagnostic LED indicators.
- Selectable polarity for digital inputs models.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Voltage: 9-32V
-
Body: Die-cast
Polycarbonate -
Current Draw: 50mA @ 13.8V
60mA @ 27.6V - Inputs: 8 Digital
- Outputs: 16
- Output Current: 13A Maximum
- IP Rating: IP67
- CAN: SAE J1939
- Operating Temp: -40°C to 85°C

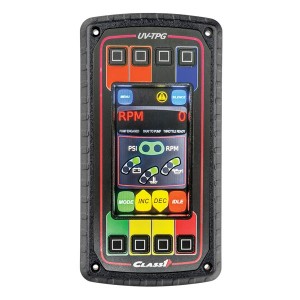

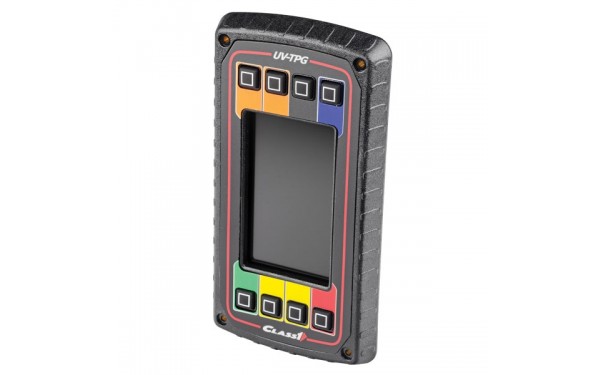

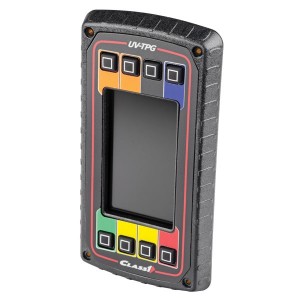

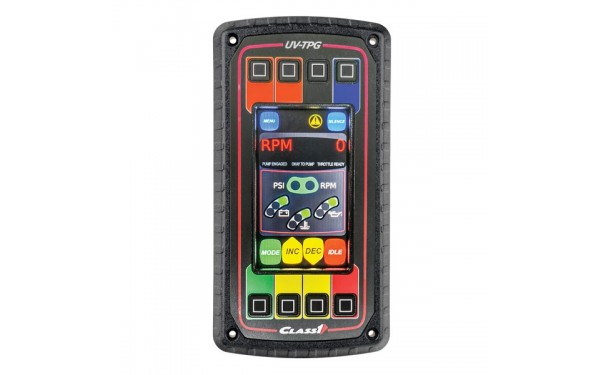

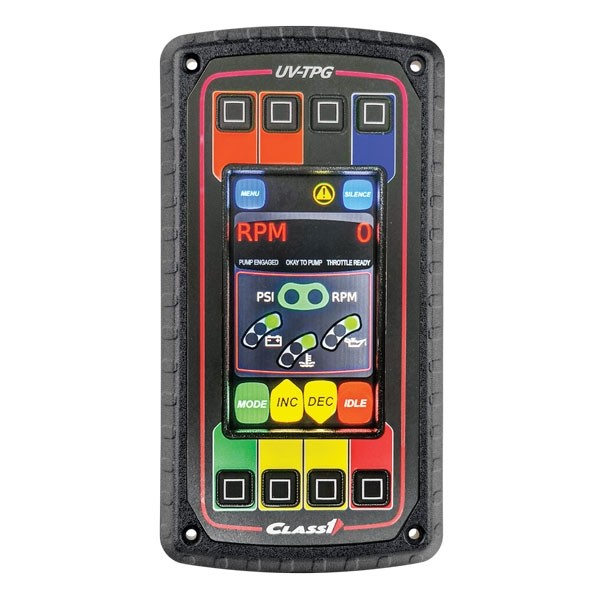

- Combines the simplicity of the TPG with the diagnostic power of the Sentry.
- Controls engine speed directly over J1939 network or analogue control.
- Tactile feedback buttons.
- Maximises pressure & flow with minimum engine RPM.
- Large, easy to read alphanumeric display.
- Easy setup & configuration.
- Audible alarm output.
- Programmable presets. Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Material: Polycarbonate
- CAN: SAE J1939
- Output: Analogue 0-5V
- Current Draw: 240mA @ 13.8V
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
- Voltage: 9-32V
Catalogue Downloads
- Projected capacitive touch screen on all models – can be used while wearing gloves.
- J1939 CAN based information display incorporating programmable switching.
- Infinitely customisable.
- Bonded LCD screen viewable in direct sunlight and whilst wearing polarised lenses.
- Reverse polarity and EMF protected.
- Horizontal or vertical screen orientation.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Screen Size: 12.3"
- Resolution: 1280 x 768
- Voltage: 6-36V
- Current Draw: 1300mA @ 13.8V
-
CAN: SAE J1939
NMEA 2000 - Inputs: 8
- Camera Inputs: 3
- Video Signal: NTSC / PAL
- Output: 2
- Vibration: 7.86G rms 5.2000 Hz, 3 axis
- Shock: +/- 50G, 3 axis
- Housing Material: Polycarbonate
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Projected capacitive touch screen on all models – can be used while wearing gloves.
- J1939 CAN based information display incorporating programmable switching.
- Infinitely customisable.
- Bonded LCD screen viewable in direct sunlight and whilst wearing polarised lenses.
- Reverse polarity and EMF protected.
- Horizontal or vertical screen orientation.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Screen Size: 10.6"
- Resolution: 1280 x 480
- Voltage: 6-36V
- Current Draw: 1200mA @ 13.8V
-
CAN: SAE J1939
NMEA 2000 - Inputs: 8
- Camera Inputs: 3
- Video Signal: NTSC / PAL
- Output: 2
- Vibration: 7.86G rms 5.2000 Hz, 3 axis
- Shock: +/- 50G, 3 axis
- Housing Material: Polycarbonate
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Projected capacitive touch screen on all models – can be used while wearing gloves.
- J1939 CAN based information display incorporating programmable switching.
- Infinitely customisable.
- Bonded LCD screen viewable in direct sunlight and whilst wearing polarised lenses.
- Reverse polarity and EMF protected.
- Horizontal or vertical screen orientation.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Screen Size: 7"
- Resolution: 800 x 480
- Voltage: 6-36V
- Current Draw: 900mA @ 13.8V
-
CAN: SAE J1939
NMEA 2000 - Inputs: 8
- Camera Inputs: 3
- Video Signal: NTSC / PAL
- Output: 2
- Vibration: 7.86G rms 5.2000 Hz, 3 axis
- Shock: +/- 50G, 3 axis
- Housing Material: Polycarbonate
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Projected capacitive touch screen on all models – can be used while wearing gloves.
- J1939 CAN based information display incorporating programmable switching.
- Infinitely customisable.
- Bonded LCD screen viewable in direct sunlight and whilst wearing polarised lenses.
- Reverse polarity and EMF protected.
- Horizontal or vertical screen orientation.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Screen Size: 5"
- Resolution: 800 x 480
- Voltage: 6-36V
- Current Draw: 400mA @ 13.8V
-
CAN: SAE J1939
NMEA 2000 - Inputs: 1
- Camera Inputs: 2
- Video Signal: NTSC / PAL
- Output: 1
- Vibration: 7.86G rms 5.2000 Hz, 3 axis
- Shock: +/- 50G, 3 axis
- Housing Material: Polycarbonate
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Provides remote connection to compatible devices.
- Multi-carrier 4G LTE connectivity.
- Dual SIM card port (2x Mini 2FF).
- Multiple communication ports.
- Routing capabilities provide secure, reliable communication.
- Triggers alarms and sends SMS messages.
- Built-in GPS.
- Built-in Ethernet and serial connectivity.
- Data usage alerts via email/sms.
- Low power consumption.
- Made in North America.
- Voltage: 7-30V
- Current Draw: 0.15A @ 13.8V
- CPU: 32-bit ARM9 400 MHz
- Memory: 512MB NAND
- RAM: 128MB
- Ethernet: 10/100 Base-T RJ45 Ports
- Serial: RS-232 (DB9) 115,200bps
- Antenna: 4x SMA Connectors
-
Approvals: FCC/IC
UL HazLoc
PTCRB - Operating Temp: -40°C to 85°C
- SAE J1939 compliant stand-alone fully functional pressure governor module.
- Monitors discharge pressure and maintains set pressure by reducing or increasing
- engine RPM.
- Hard wired interlocks (throttle ready, pump engaged, ok to pump).
- Increase, decrease, idle, mode (pressure or RPM), preset, high idle inputs.
- Programmable default mode (pressure, RPM or none).
- Self-diagnostic options – sends out alarms and warnings when error or fault
- conditions occur.
- Made in North America.
- Voltage: 9-32V
- Current Draw: 50mA @ 13.8V
- Output Current: 250 mA
- CAN: SAE J1939
- Material: Polycarbonate
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- SAE J1939 CAN engine message reception and Es-Key network controller.
- Digital circuit breakers on all positive outputs.
- Output ‘open load’ detection.
- Diagnostic LED indicators.
- Selectable polarity for digital inputs models.
- Environmentally sealed – IP67.
- Multi-voltage.
- Made in North America.
- Voltage: 9-32V
-
Body: Die-cast
Polycarbonate -
Current Draw: 69mA @ 13.8V
63mA @ 27.6V -
Inputs: 4 Analogue
16 Digital - Outputs: 32
-
Output Current: Positive 13A
4A Negative - IP Rating: IP67
- CAN: SAE J1939
- Operating Temp: -40°C to 85°C
- Flexible CAN integration – configurable to any CANopen or J1939 protocol (multiple baud rate).
- Buttons feature multiple illumination effects. User’s can program each ring to either blink, ripple, spin or fade in one or more colours.
- Dimmable illumination.
- LED backlit icons.
- Switch inserts can be laser etched.
- Low current draw.
- TE DEUTSCH compatible connector.
- Environmentally sealed – IP68.
- Made in North America.
- Configurations: 2, 4, 5, 6, 8, 12, 15 & 16 Button
- Voltage: 9-32V
-
Current Draw: 65mA @ 13.8V
45mA @ 27.6V -
CAN: CANopen
SAE J1939 - Housing Material: Silicone
- IP Rating: IP68
- Operating Temp: -40°C to 85°C
