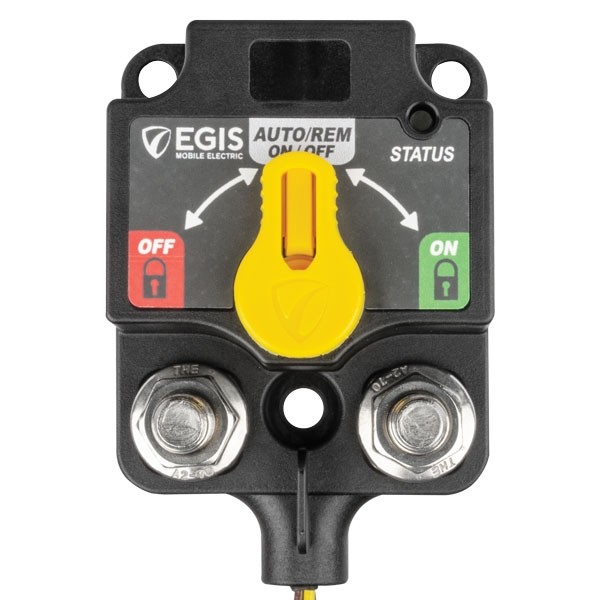

EGIS Voltage Sensing Relay
- Configurable as a voltage sensing relay, a low voltage disconnect relay and a manual or electronic high current switch/isolator.
- Manual override lever allows manual control and the ability to isolate relays On or Off for servicing.
- Configurable via onboard DIP switches.
- Low off-state power draw – 1.3mA.
- Simple installation.
- LED status indicator.
- Robust construction.
- Includes protective terminal cover.
- Sealed housing with breather filter protects against water and dust ingress.
- Environmentally sealed – IP67, IP6K9K.
- Broad operating temperature.
- 4-year warranty.
- Made in North America.
- Voltage: 12–24V
-
Current Rating: Continuous – 500A
Intermittent – 1,600A - Current Draw: 170mA @ 12V
- Auxiliary Output: 400mA
- Standby Current Draw: 1.3mA
- Studs: M10 Stainless Steel
- Connector: 250mm Fly Lead
- Ingress Protection: IP67, IP6K9K
- Approvals: CE
- Protection: Ignition – SAE J1171 / ISO 8846
- Operating Temp: -40°C to 55°C
