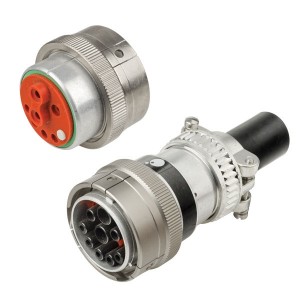

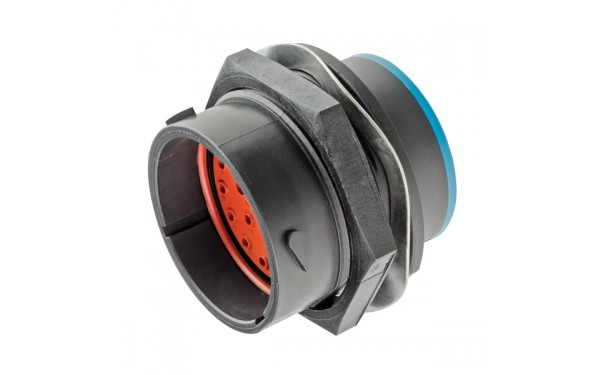

HD30 HDP20 Series

  • Environmentally sealed – IP67, when installed to manufacturer's specifications.
  • Designed specifically for the truck, bus, mining and construction industry.

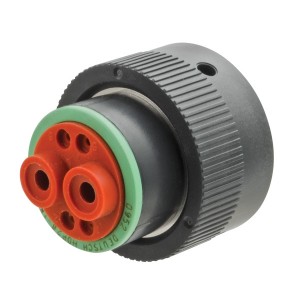

  • Available in aluminium (HD30) or thermoplastic housings (HDP20).
  • Multiple pin configurations that accept contact sizes 4 through 20.
  • Quick connect/disconnect bayonet coupling.
  • HD30 and HDP20 series are cross compatible.
  • Resistant to most fluids in industrial applications.
  • Available in kits containing all components required to make one half of a connection.

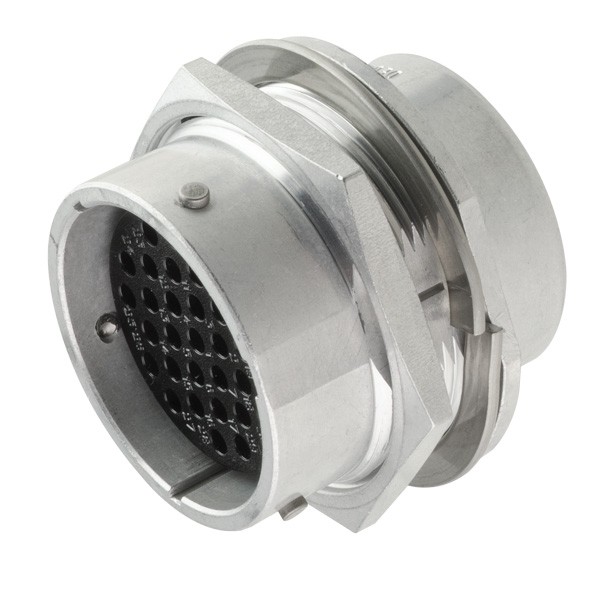

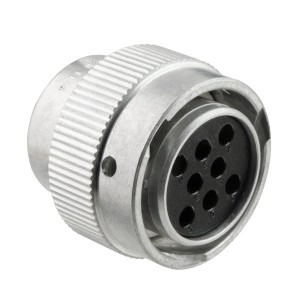

  • Housing Material: HD30 - Aluminium

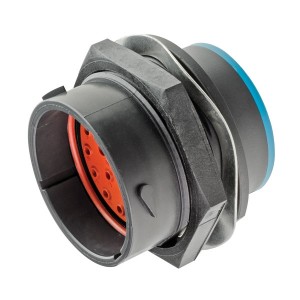

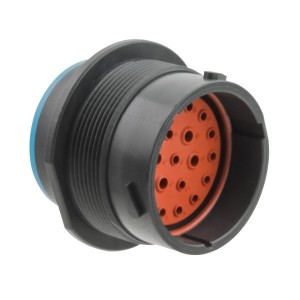

    HDP20 - Thermoplastic
  • Seal: Silicon Rubber
  • Shock: 50G
  • Vibration: 20G rms 10 – 2000Hz
  • Approvals: 20mm Flame Test per Standard UL-94
  • Ingress Protection: IP67
  • Operating Temp: -55­­°C to 125°C
  • Environmentally sealed – IP67, when installed to manufacturer's specifications.
  • Designed specifically for the truck, bus, mining and construction industry.
  • Available in aluminium (HD30) or thermoplastic housings (HDP20).
  • Multiple pin configurations that accept contact sizes 4 through 20.
  • Quick connect/disconnect bayonet coupling.
  • HD30 and HDP20 series are cross compatible.
  • Resistant to most fluids in industrial applications.
  • Available in kits containing all components required to make one half of a connection.
  • Housing Material: HD30 - Aluminium
    HDP20 - Thermoplastic
  • Seal: Silicon Rubber
  • Shock: 50G
  • Vibration: 20G rms 10 – 2000Hz
  • Approvals: 20mm Flame Test per Standard UL-94
  • Ingress Protection: IP67
  • Operating Temp: -55­­°C to 125°C
  • Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
  • 6-22 AWG

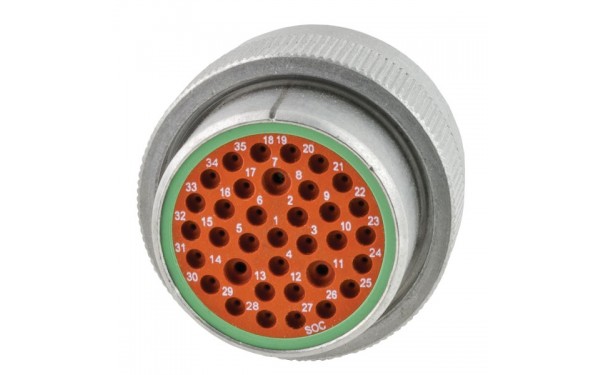

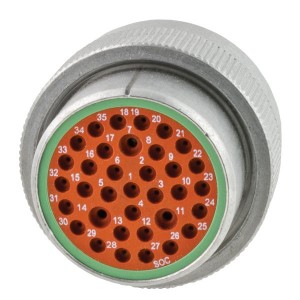

  • 2, 6, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35 and 47 cavity arrangements

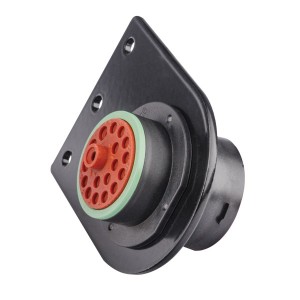

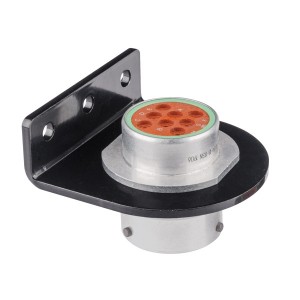

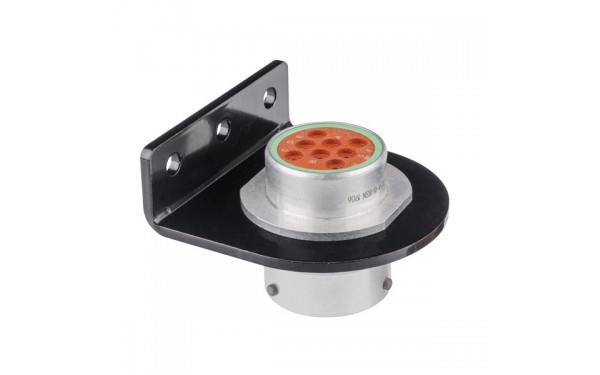

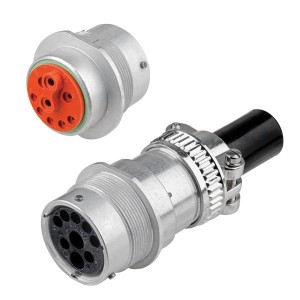

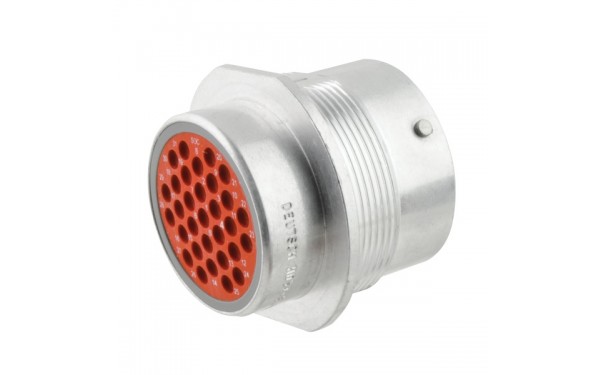

  • Inline or flange mount
  • Circular, aluminiumum housing
  • Coupling ring for mating
