TireCheck

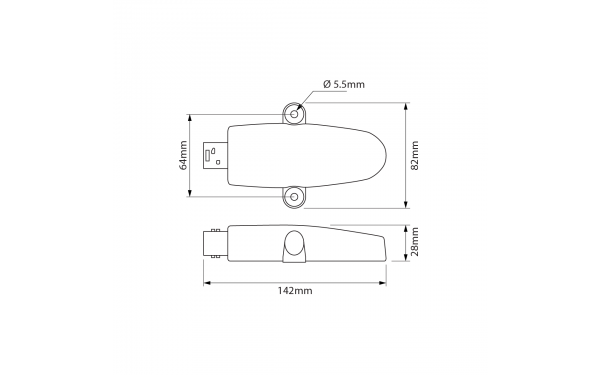

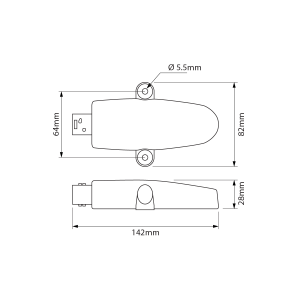

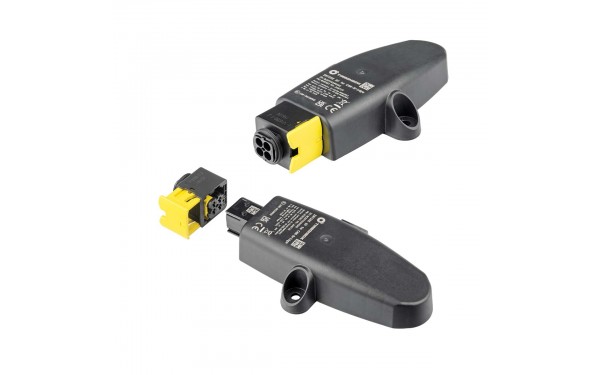

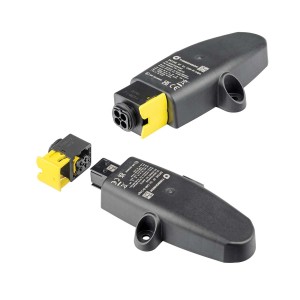

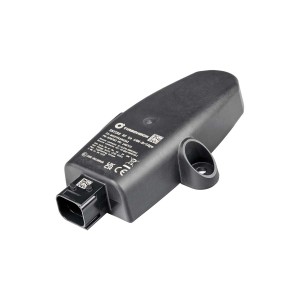

RF to CAN Bridge
Class 1

Features

  • Wireless tyre monitoring system with CAN-integrated receiver.
  • Sensors measure tyre pressure and temperature.
  • Data transmitted continuously every 40 seconds (internal model) or two minutes (external model) to the receiver.

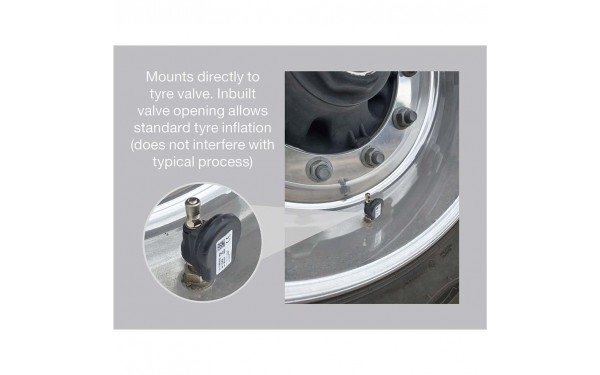

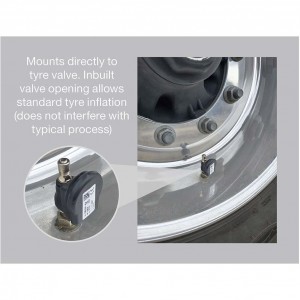

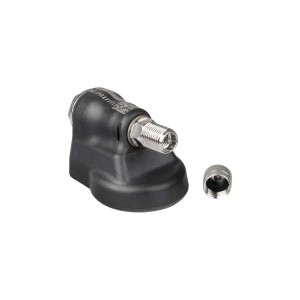

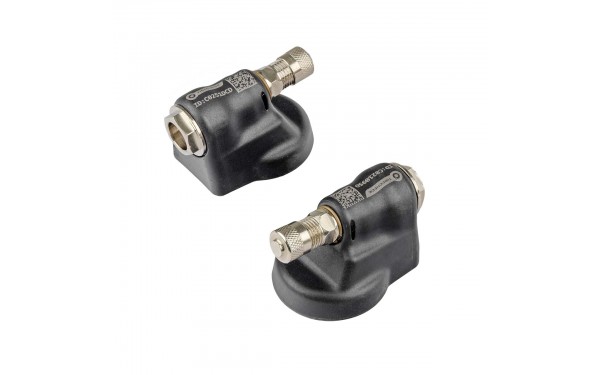

  • The external model securely attaches to the tyre valve for quick and easy installation.

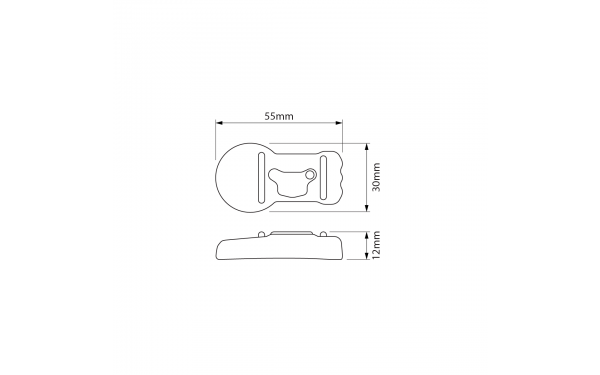

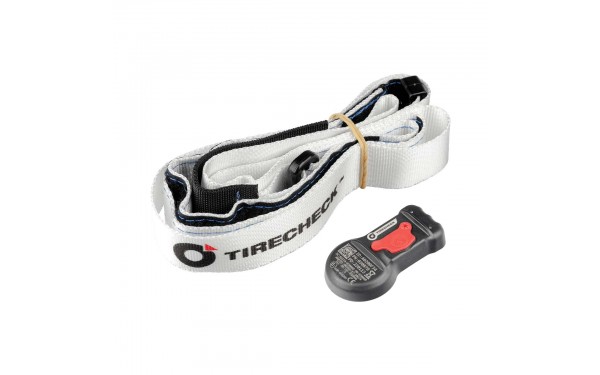

  • The internal sensor straps to the wheel's rim, making it more secure and reliable, ideal for OEM assembly lines or larger retrofit projects.
  • Complies with European TPMS legislation
  • ECE-R141 while integrating with existing CAN bus architecture.
  • The RF to CAN Bridge can be configured using Bluetooth to monitor the correct sensor IDs, pressure and temperature thresholds.

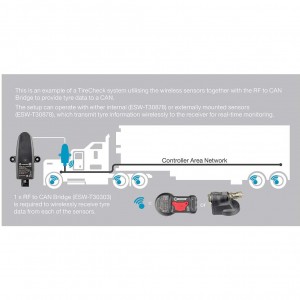

  • Once integrated into a CAN, the tyre data can be viewed on any display connected to the application's network.
  • RF to CAN Bridge is environmentally sealed – IP69K.
  • Suits trucks, trailers and tractor units.
  • Made in Europe.

Specifications

  • Voltage: 12–24V
  • CAN: SAE J1939
    11992
  • Sensor: Radio Frequency to CAN Module
  • IP Rating: IP69K
  • Operating Temp: Bridge -4­­0°C to 85°C
    Sensors -4­­0°C to 115°C
