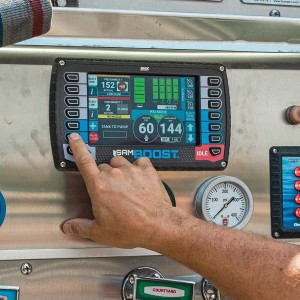

SAM BOOST Kit

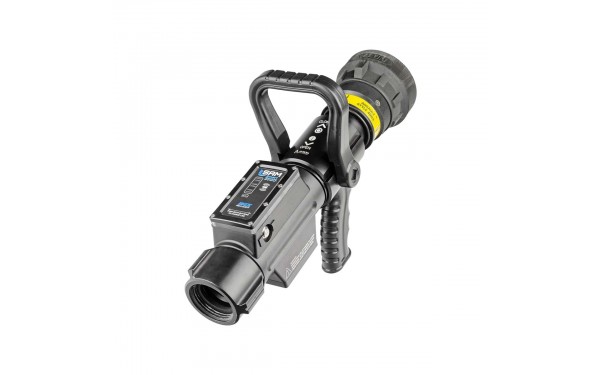

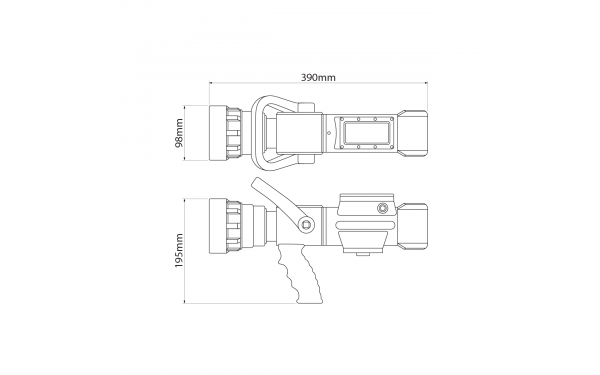

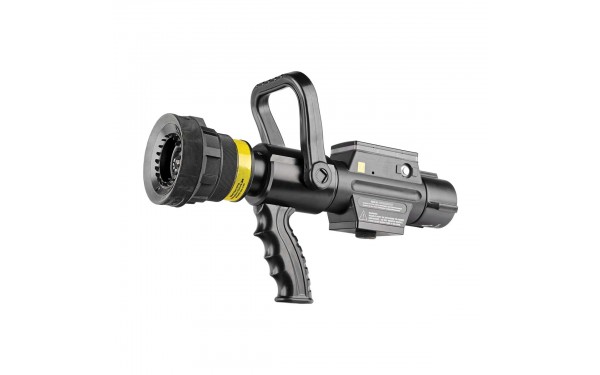

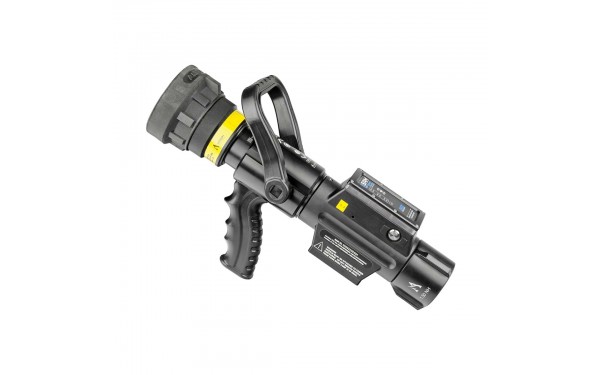

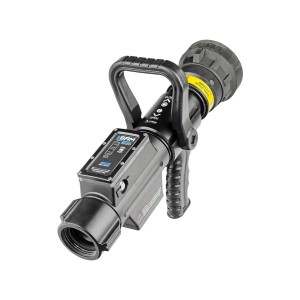

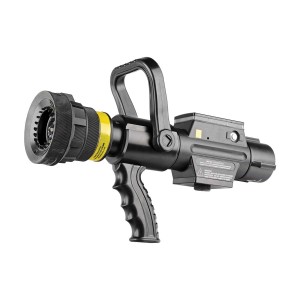

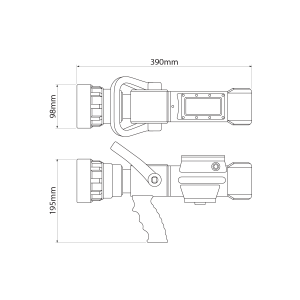

SAM BOOST - SMART Nozzle
Class 1

Features

  • SAM BOOST automates key pump operations to simplify hose deployment, maintain pressure, and boost crew efficiency during initial attack.
  • Automatically opens the tank-to-pump when the pump is engaged.
  • Maintains correct discharge pressure by compensating for hose loss and elevation.
  • Supports up to two Smart Nozzles.
  • Allows for manual or automatic discharge pressure adjustments.
  • Continues pressure regulation even if wireless connection is lost.
  • Charge the hose line directly from the Smart Nozzle for faster deployment.

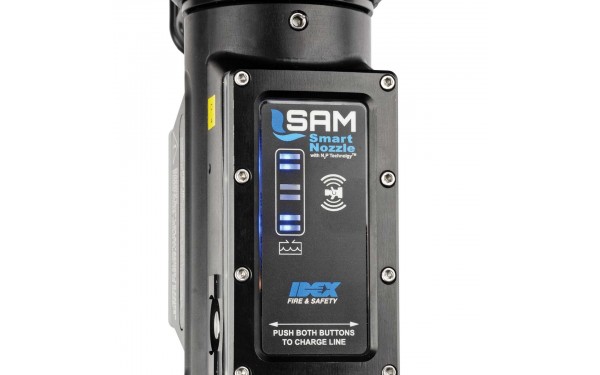

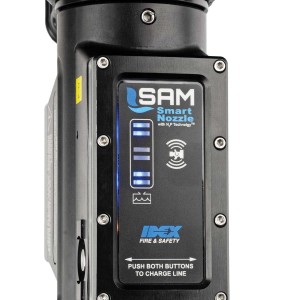

  • LED indicators on the nozzle display real-time tank water levels.
  • Wireless communication with the truck.

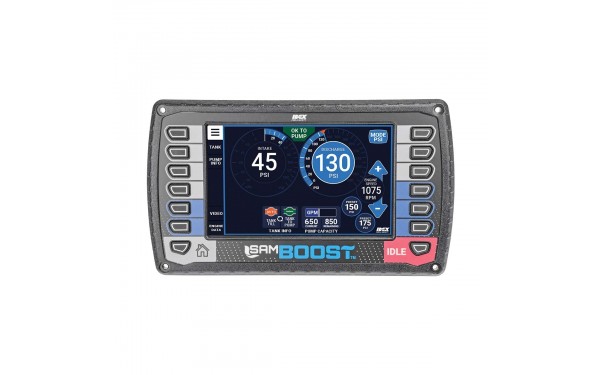

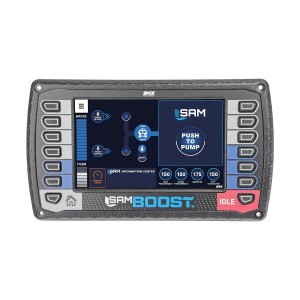

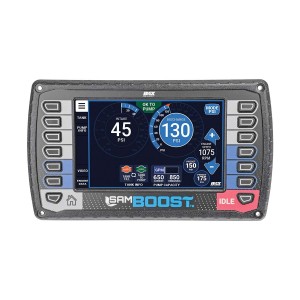

Specifications

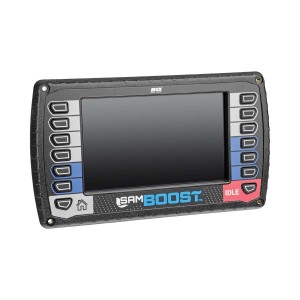

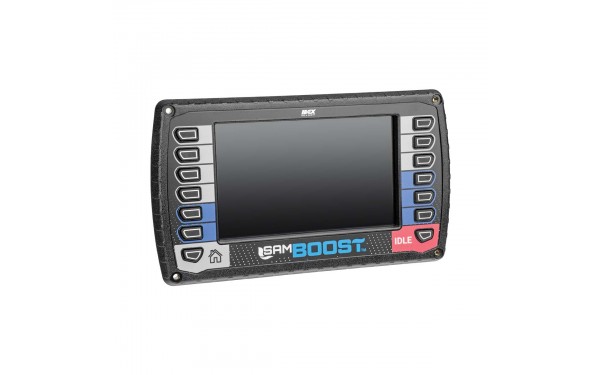

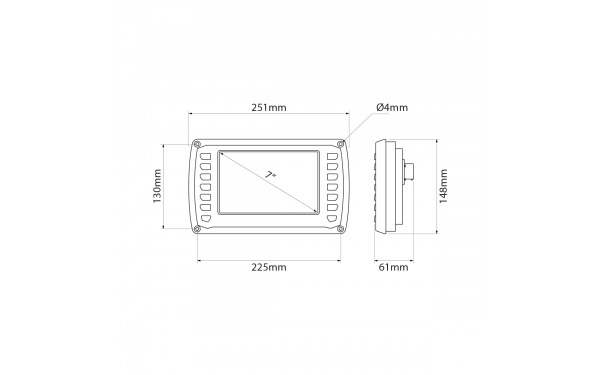

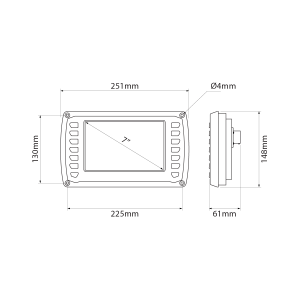

  • Screen Size: 7"
  • Resolution: 800 x 480
  • Voltage: 6-36V
  • CAN: SAE J1939
    NMEA 2000
  • Inputs: 3
  • Camera Inputs: 4
  • Video Signal: NTSC / PAL
  • Output: Digital 500mA
  • Vibration: 7.86G rms 5.2000 Hz, 3 axis
  • Shock: +/- 50G, 3 axis
  • Housing Material: Polycarbonate
  • Approvals: SAE J1113
  • IP Rating: IP67
  • Operating Temp: -40­­°C to 85°C
