CAN Controllers
- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.

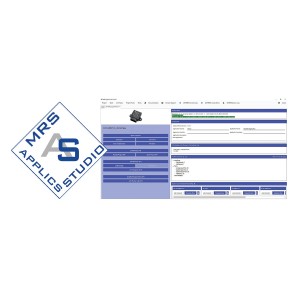

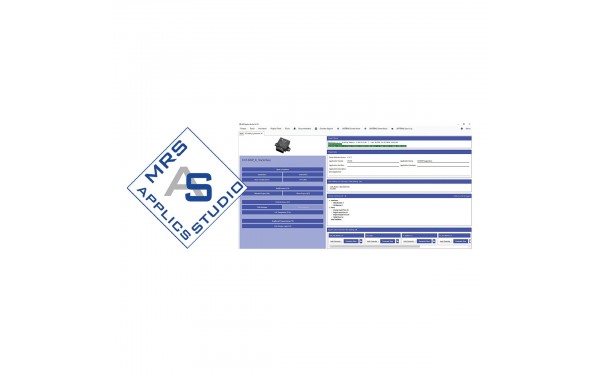

- Fully programmable using graphical software. For more info contact your local reseller on 1800 724 690.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Microplex – world's smallest CAN controllers. Footprint of two micro 280 series relays.
- Holder kits specifically designed for Microplex range available – environmentally seal to IP67.
- Short circuit & overcurrent protection.
- Made in Europe.
- Multi-voltage.
- Voltage: 9-32V
- Outputs: 4, 7 & 8 Models
-
CAN: 2.0 A/B ISO 11898-2
SAE J1939 -
Housing Material: Microplex
PA66 Nylon
CC16WP
Polymer -
IP Rating: Microplex
IP67
CC16WP
IP6K8 -
Approvals: SAE J1113
ISO 11452 - Operating Temp: -40°C to 85°C
Catalogue Downloads
- Significantly reduce the time required for each Minebar.
- Connects to the CAN, providing functionality for a Minebar (stop-tail/indicator/reverse lights, and reversing alarm).
- Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.
- Vehicle warranty concerns alleviated as no physical connection is made to existing CAN wiring.
- Ultra-compact Microplex CAN controller with holder rated to IP67.
- Microplex is pre-programmed to be compatible with the Ford Ranger/Everest system.
- Configurations: Ford Ranger & Everest
- Voltage: 12–24V
-
CAN: SAE J1939
CAN Open
DeviceNet
NMEA 2000 - Current Draw: 35mA @ 24V
- Operating Temp: -40°C to 70°C
Catalogue Downloads
- Significantly reduce the time required for each Minebar and Hand Brake Alarm installation.
- Connects to the CAN, providing functionality for a Hand Brake Alarm and Minebar (stop-tail/indicator/reverse lights, and reversing alarm).
- Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.
- Vehicle warranty concerns alleviated as no physical connection is made to existing CAN wiring.
- Ultra-compact Microplex CAN controller with holder rated to IP67.
- Microplex is pre-programmed to be compatible with the Ford Ranger/Everest system.
-
Configurations: Ford Ranger & Everest
Inc. Hand Brake Alarm - Voltage: 12–24V
-
CAN: SAE J1939
CAN Open
DeviceNet
NMEA 2000 - Current Draw: 35mA @ 24V
- Operating Temp: -40°C to 70°C
Catalogue Downloads
- Microplex – world's smallest CAN controllers. Footprint of two micro 280 series relays.
- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Holder kits specifically designed for Microplex range available – environmentally seal to IP67.
- Short circuit & overcurrent protection.
- Made in Europe.
- Multi-voltage.
- Voltage: 8-32V
- Outputs: 4 & 7 Models
-
CAN: CAN 2.0
SAE J1939 - Housing Material: PA66 Nylon
- IP Rating: IP67
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Multiple inputs/outputs.
- 2 x CAN ports.
- 32-bit processor with 65K RAM.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Short circuit & overcurrent protection.
- Made in Europe.
- Multi-voltage.
- Voltage: 9-32V
- Inputs: 7
- Outputs: 8
-
CAN: CAN 2.0
SAE J1939 - Housing Material: PA66 Nylon
- IP Rating: IP6K8
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Secondary port options include RS485, LIN (Slave), CAN/FD, or an additional CAN.
- Compact design – 30 x 30 x 40mm.
- 32-bit processor with 256K RAM for the ESW-00057.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Short circuit & overcurrent protection.
- Made in Europe.
- Multi-voltage.
-
Voltage: 9-32V
8–16V - Inputs: 1 & 2 Models
- Outputs: 1 & 2 Models
-
CAN: CAN 2.0
SAE J1939 - Housing Material: PA66 Nylon
- IP Rating: IP6K8K
- Operating Temp: -40°C to 85°C
Catalogue Downloads
- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Integrated TE DEUTSCH connector for harsh environmental conditions.
- Up to 4 analogue outputs.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Short circuit & overcurrent protection.
- Made in Europe
- Multi-voltage.
-
Voltage: 9-32V
7-32V - Inputs: 2 & 4 Models
- Outputs: 2 & 4 Models
-
CAN: CAN 2.0
SAE J1939 - Housing Material: PA66 Nylon
- IP Rating: IP6K8K
- Operating Temp: -40°C to 85°C
Catalogue Downloads

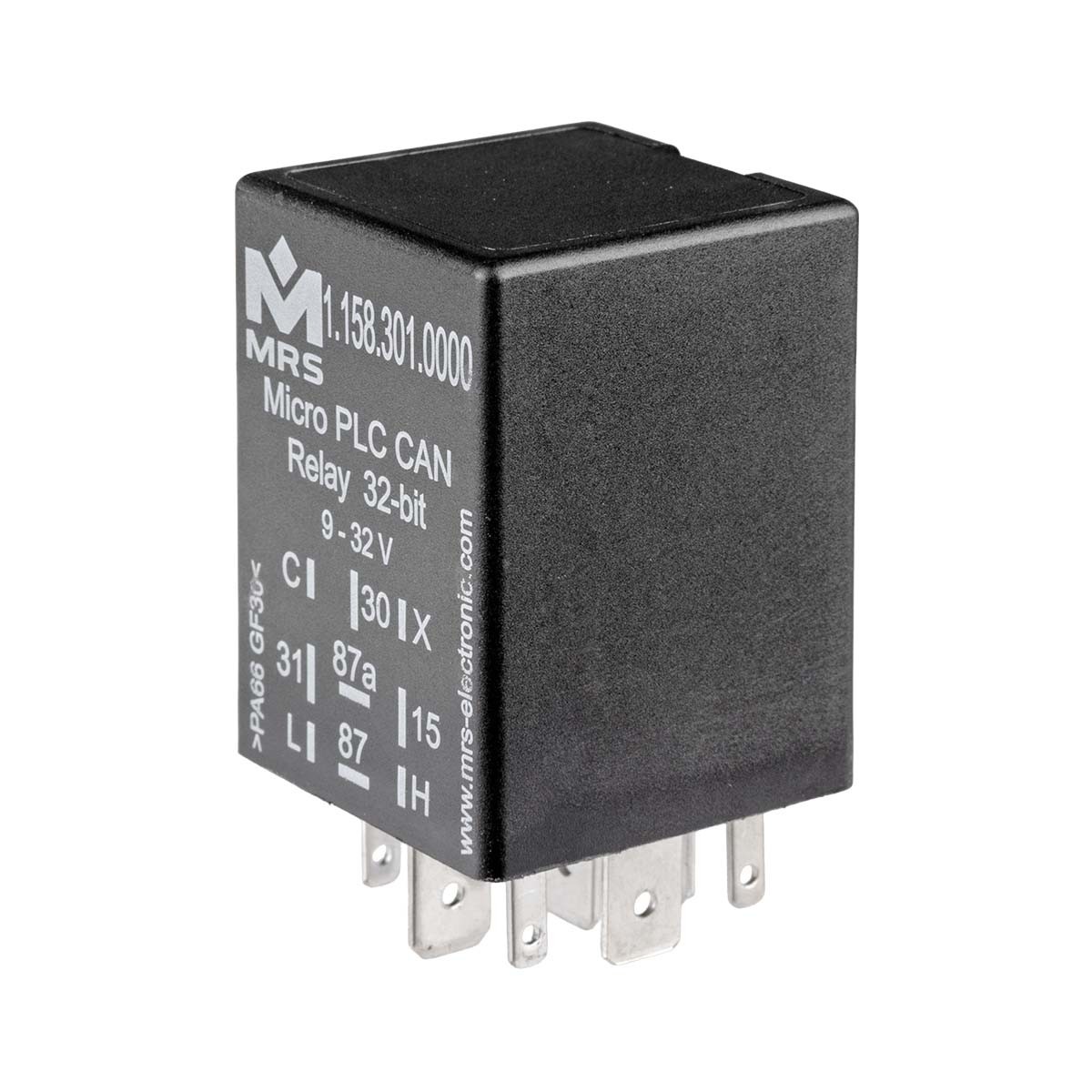

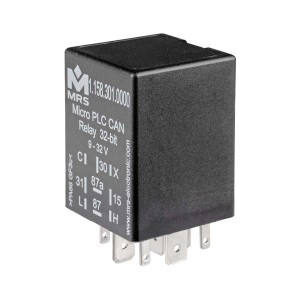

- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Potential-free relay functionality.
- Compact design – 30 x 30 x 40mm.
- 32-bit processor with 32K RAM.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Short circuit & overcurrent protection.
- Made in Europe
- Multi-voltage.
- Voltage: 9-32V
- Inputs: 1
- Outputs: 1
-
CAN: CAN 2.0
SAE J1939 - Housing Material: PA66 Nylon
- IP Rating: IP6K8K
- Operating Temp: -40°C to 85°C
Catalogue Downloads

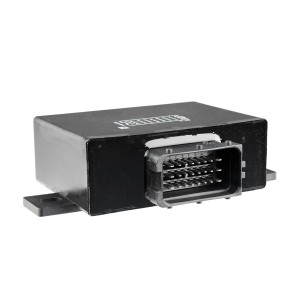

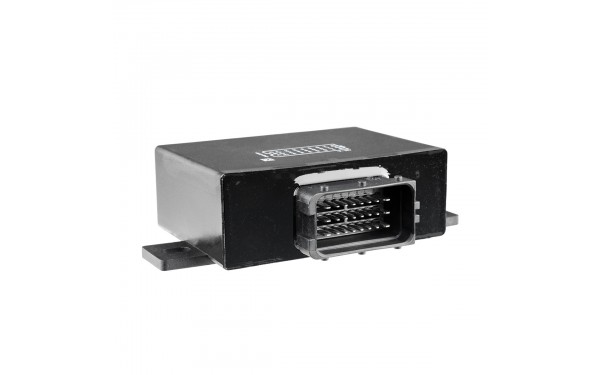

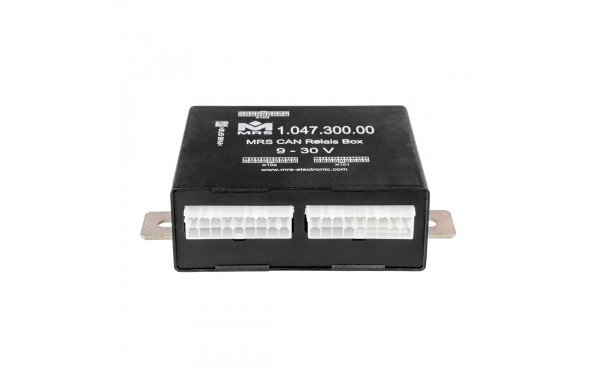

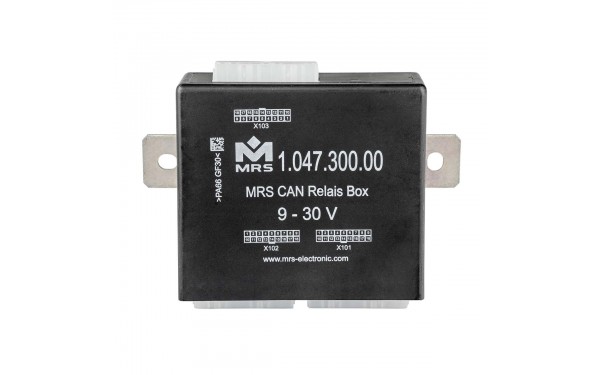

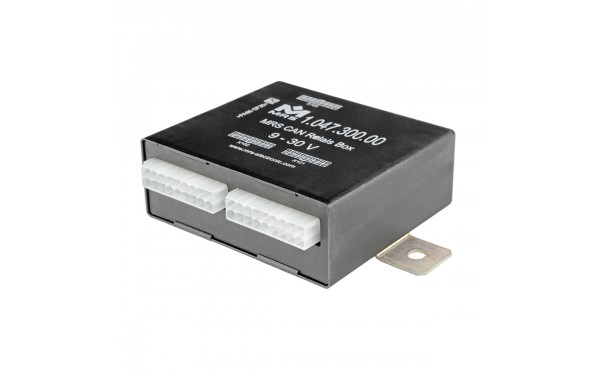

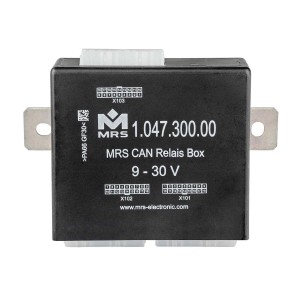

- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Potential-free relay functionality.
- Up to 12 relays can be activated.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Short circuit & overcurrent protection.
- Made in Europe
- Multi-voltage.
- Voltage: 9-30V
- Inputs: 13
- Outputs: 12
-
CAN: CAN 2.0
SAE J1939 - Housing Material: Polymer
- Operating Temp: -40°C to 85°C
Catalogue Downloads

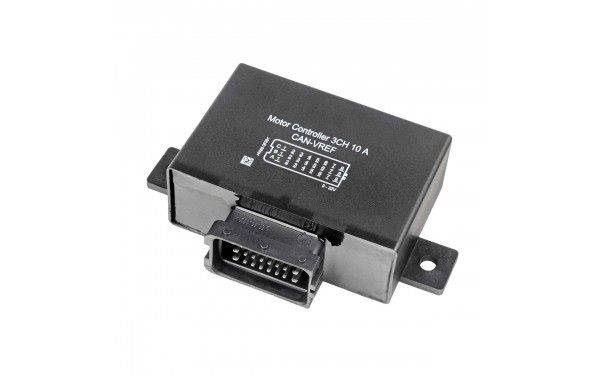

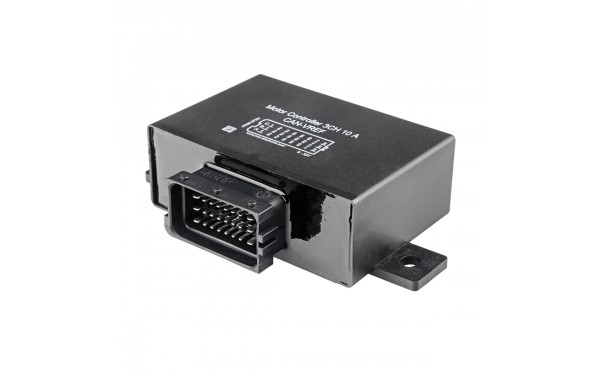

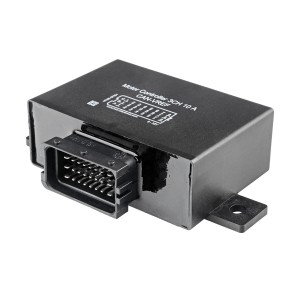

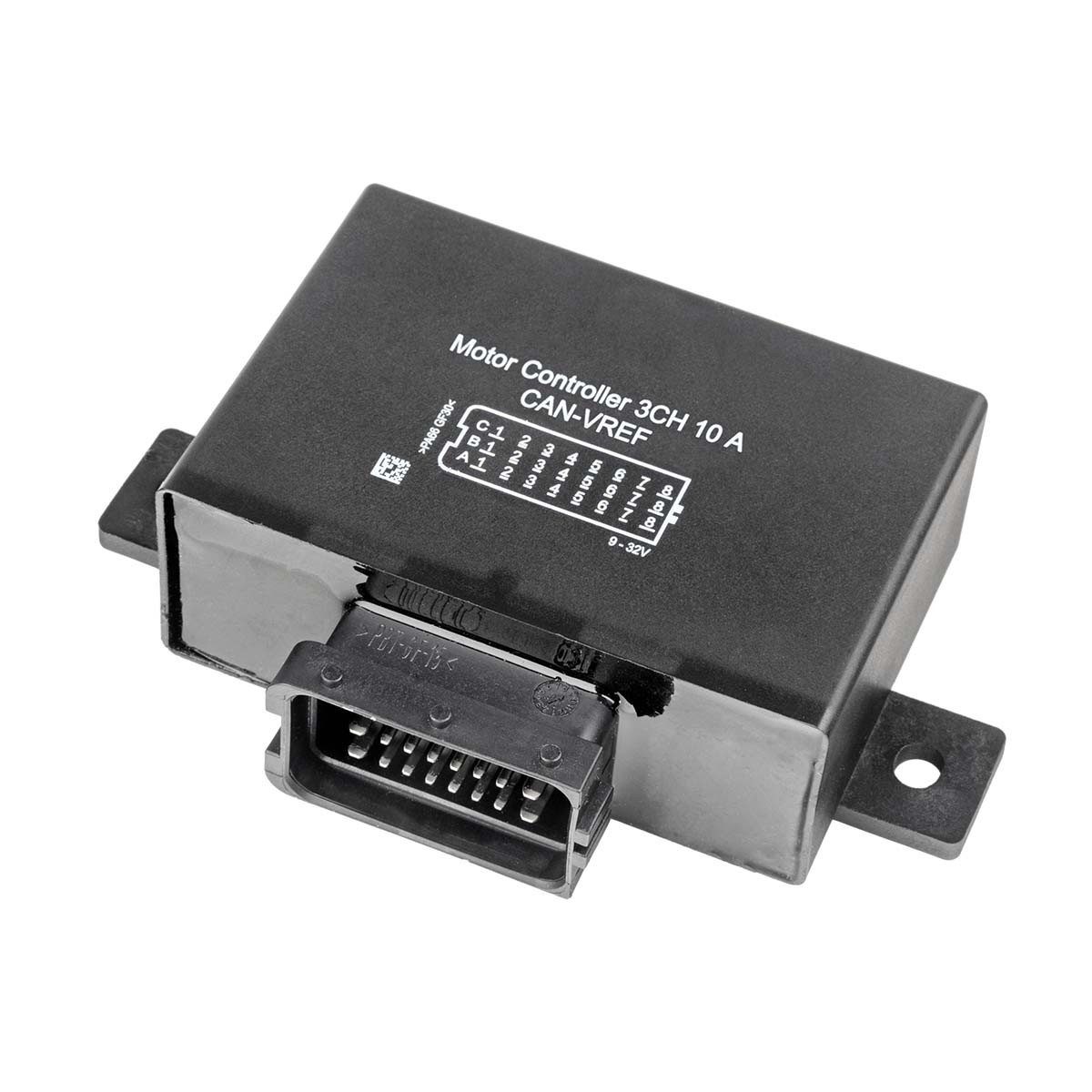

- Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
- Controls up to three DC motors with precise ramp functions.
- H-Bridge functionality.
- Multiple inputs/outputs.
- 32-bit processor with 256K RAM.
- Versatile inputs with 10 analogue inputs (8 MFI) available.
- Fully programmable using graphical software.
- Environmentally sealed – IP67 / IP6K8.
- Highly flexible multifunction inputs.
- Short circuit & overcurrent protection.
- Made in Europe
- Multi-voltage.
- Voltage: 8-32V
- Inputs: 10 (8 MFI)
- Outputs: 8
-
CAN: CAN 2.0
SAE J1939 - Housing Material: Polymer
- Operating Temp: -40°C to 85°C
