Obstacle Detection
- Obstacle detection rate under 200 milliseconds.
- Adjustable max detection distance via dip switch.

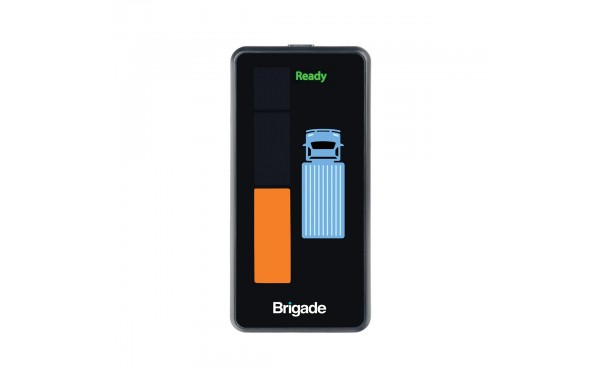

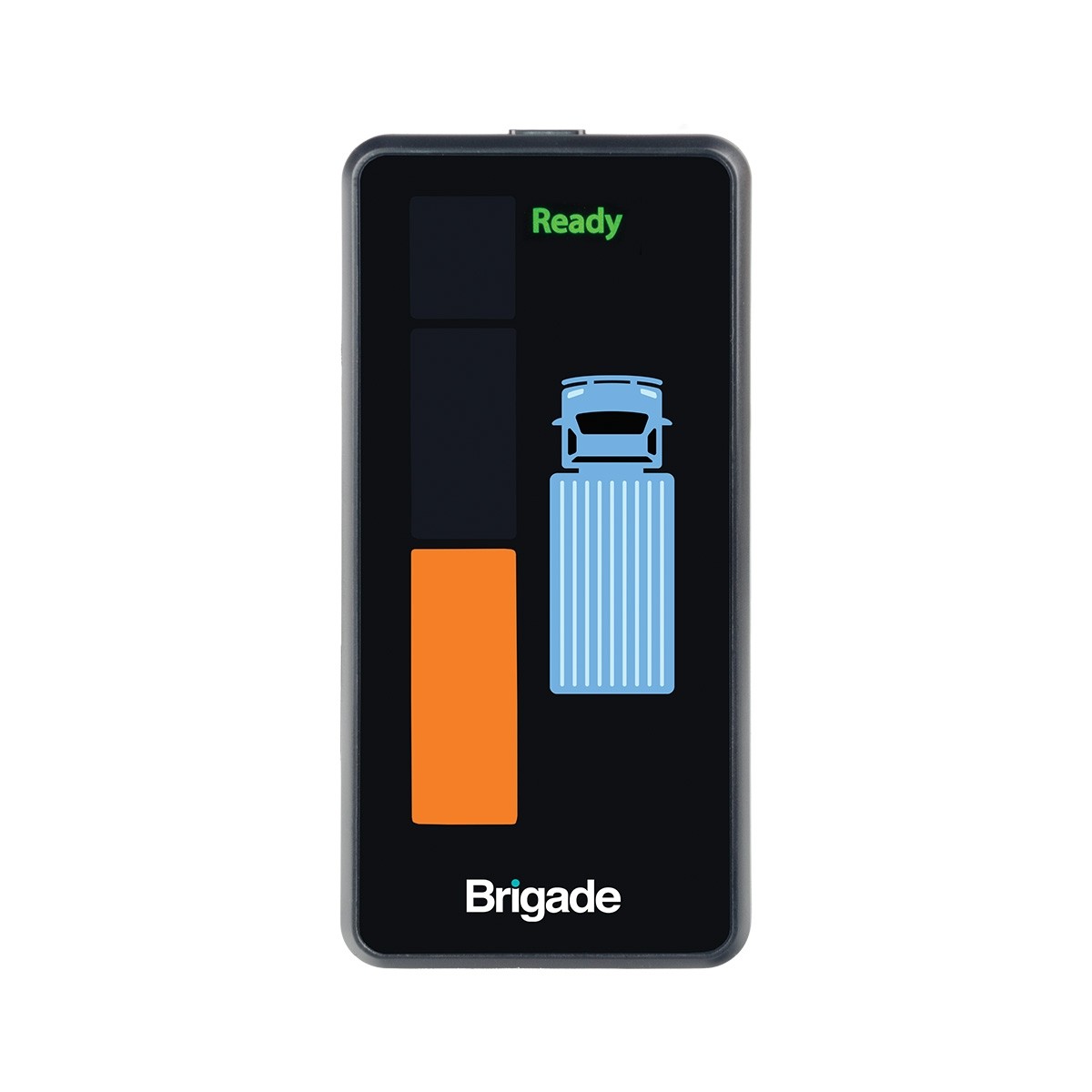

- Includes in-cab visual display.
- 3 stage warning zones.
- Environmental Learning Mode prevents false alarms.

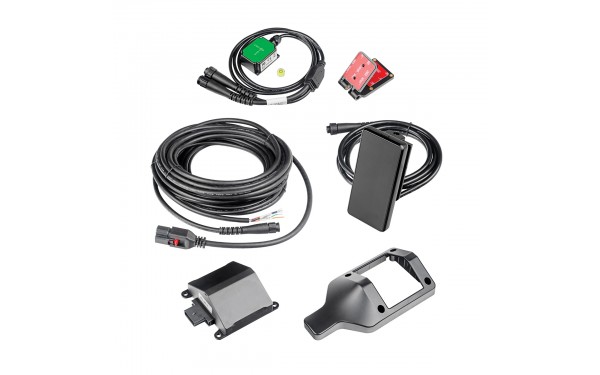

- Multiple sensor mount types included.
- Incorporates 50cm compensation range for inboard mounted sensors (selectable via dip switch).
- One trigger output.
- Self diagnostic function.
- Sensors & ECU environmentally sealed.
- Multi-voltage.
- 2 year warranty.
- Voltage: 12-24V
- Current Draw: 0.2A
- Detection Range: Up to 2.5m
-
Harness Length: ECU to Display
- 15m
ECU to Sensors
- 2.5m - Standards: RoHS compliant
- Operating Temp: -40°C to 80°C
-
IP Rating: Display - IP54
ECU & Sensors - IP68
Catalogue Downloads
- Obstacle detection rate under 200 milliseconds.
- Adjustable max detection distance via dip switch.
- Includes in-cab buzzer.
- 3 stage warning zones.
- Environmental Learning Mode prevents false alarms.
- Multiple sensor mount types included.
- One trigger output.
- Self diagnostic function.
- Sensors & ECU environmentally sealed.
- Multi-voltage.
- 2 year warranty.
- Voltage: 12-24V
- Current Draw: 0.2A
- Detection Range: Up to 2.1m
-
Harness Length: ECU to Buzzer
- 2.5m
ECU to Sensors
- 2.5m - Standards: RoHS compliant
- Operating Temp: -40°C to 80°C
-
IP Rating: Buzzer - IP54
ECU & Sensors - IP68
Catalogue Downloads

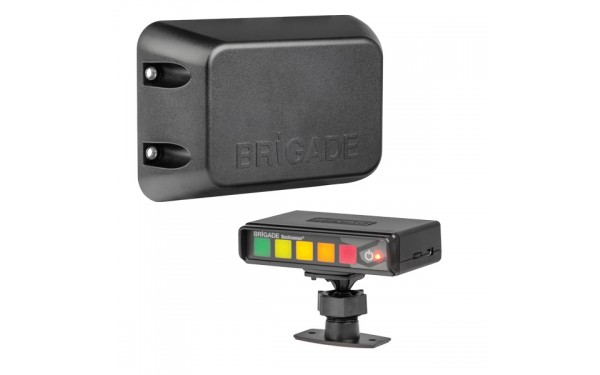

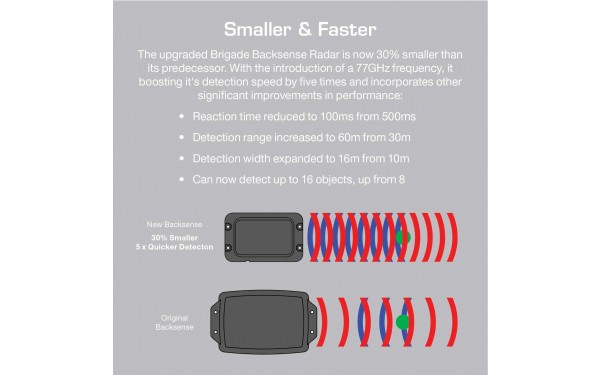

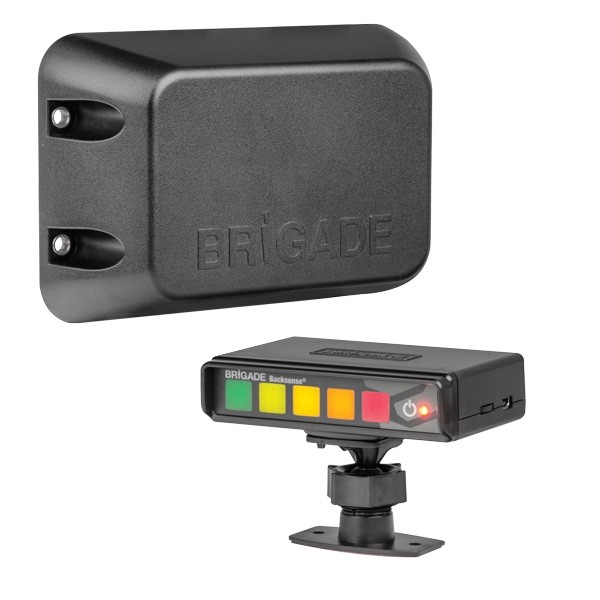

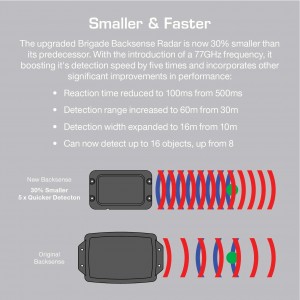

- Detects up to 16 moving and stationary objects.
- High frequency continuous wave provides increased reliability & low false alarm rates.
- Effective through non-metallic surfaces e.g. plastic & fibreglass.
- BS-8100 model has adjustable detection range – 60m to 3m.
- Self-diagnostic function.
- Rugged cable system withstands harsh environmental conditions.
- In-cab 5 stage audible & visual alert.
- Auxiliary output to activate additional items, e.g. cameras, alarms etc.
- Transient, short circuit, overcharge & reverse polarity protection.
- Epoxy filled for maximum vibration resistance.
- Environmentally sealed sensor – IP69K.
- Sensor can be steam & pressure cleaned.
- Multi-voltage.
- 3-year warranty.
- Detection Range: 3m, 4.5m & 6mProgrammable 60m to 3m
- Voltage: 12-24V
- Current Draw: 0.8A
- Radar Frequency: 77GHz
- Auxiliary Output: 0.5A
- Visual Warning: 5 x LEDs
- Weight: Sensor 0.36KgDisplay 0.3Kg
- Vibration: 8.3G
- Shock: 51G
- EMC: CE & ‘e’ marked
- Approvals: ISO 16750/13766, EN13309 & FCC
- Operating Temp: -40° C to 85°C
- IP Rating: Sensor IP69K
Catalogue Downloads
- Obstacle detection rate under 200 milliseconds.
- Adjustable max detection distance via dip switch.
- Includes in-cab buzzer.
- 3 stage warning zones.
- Environmental Learning Mode prevents false alarms.
- Multiple sensor mount types included.
- One trigger output.
- Self diagnostic function.
- Sensors & ECU environmentally sealed.
- Multi-voltage.
- 2 year warranty.
- Voltage: 12-24V
- Current Draw: 0.2A
- Detection Range: Up to 1.5m
-
Harness Length: ECU to Buzzer - 2.5m
ECU to Sensors - 2.5m - Standards: RoHS compliant
- Operating Temp: -40°C to 80°C
-
IP Rating: Buzzer - IP54
ECU & Sensors
- IP68
Catalogue Downloads
- Obstacle detection rate under 200 milliseconds.
- Adjustable max detection distance via dip switch.
- Includes in-cab buzzer.
- 3 stage warning zones.
- Environmental Learning Mode prevents false alarms.
- Multiple sensor mount types included.
- One trigger output.
- Self diagnostic function.
- Sensors & ECU environmentally sealed.
- Multi-voltage.
- 2 year warranty.
- Voltage: 12-24V
- Current Draw: 0.2A
- Detection Range: Up to 1m
-
Harness Length: ECU to Buzzer
- 2.5m
ECU to Sensors
- 2.5m - Standards: RoHS compliant
- Operating Temp: -40°C to 80°C
-
IP Rating: Buzzer - IP54
ECU & Sensors - IP68
Catalogue Downloads
- Obstacle detection rate under 200 milliseconds.
- Adjustable max detection distance via dip switch.
- Includes in-cab buzzer.
- 3 stage warning zones.
- Environmental Learning Mode prevents false alarms.
- Multiple sensor mount types included.
- One trigger output.
- Self diagnostic function.
- Sensors & ECU environmentally sealed.
- Multi-voltage.
- 2 year warranty.
- Voltage: 12-24V
- Current Draw: 0.2A
- Detection Range: Up to 1m
-
Harness Length: ECU to Buzzer
- 2.5m
ECU to Sensors
- 2.5m - Standards: RoHS compliant
- Operating Temp: -40°C to 80°C
-
IP Rating: Buzzer - IP54
ECU & Sensors - IP68
