Circuit Breakers

  • Auto reset
  • Compact design
  • Integrated mount
  • Thermoplastic body
  • Supplied with Whiz-lock nuts
  • Ideal for battery chargers, trucks, buses & RV's
  • Operating Temp: -40°C to +85°C
  • Amps: 8A, 10A, 15A, 20A, 25A, 30A, 40A, 50A
  • IP Rating: IP 66
  • Body: Thermoplastic
  • Standards: SAE J533, SAE J1171
  • Voltage: 14V
  • Switchable.
  • Surface mount.
  • Weatherproof.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Switchable
  • Current Rating: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 150A
  • Body: Thermoset plastic
  • Mount: Surface
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J1625
    SAE J1171
  • Manual reset.
  • Surface mount.
  • Weatherproof.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Manual Reset
  • Current Rating: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 150A
  • Body: Thermoset plastic
  • Mount: Surface
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J1625
    SAE J1171
  • Manual reset.
  • Panel mount.
  • Weatherproof.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Manual Reset
  • Current Rating: 60A, 80A, 100A, 120A
  • Body: Thermoset plastic
  • Mount: Panel
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J1625
    SAE J1171
  • Modified reset.
  • Replaces Maxi blade fuses.
  • Compact body.
  • Ideal for truck's buses, boats, portable generators.
  • Type: Modified Reset
  • Current Rating: 20A, 30A
  • Body: Thermoplastic
  • Mount: Maxi Blade
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J553
  • Manual reset.
  • Replaces ATC blade fuses.
  • Compact body.
  • Ideal for truck's buses, boats, portable generators.
  • Type: Manual Reset
  • Current Rating: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A
  • Mount: ATC Blade
  • Body: Thermoplastic
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J1171
    SAE J553
  • Switchable - Toggle style.
  • Panel mount.
  • Screw terminals.
  • Compact body allows for closely grouped installation.
  • Ideal for truck's buses, boats, portable generators.
  • Type: Switchable
  • Current Rating: 5A, 10A, 15A, 20A
  • Body: Thermoplastic
  • Mount: Panel
  • Operating Temp: -20°C to 65°C
  • Standards: UL, CSA
  • Manual reset.
  • Replaces Mini blade fuses.
  • Compact body.
  • Ideal for truck's buses, boats, portable generators.
  • Type: Manual Reset
  • Current Rating: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A
  • Body: Thermoplastic
  • Mount: Mini Blade
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J1171
  • Manual reset.
  • Weatherproof for protection against moisture, dust, grease, fuel vapors.
  • Designed for harsh conditions.
  • Sealed construction.
  • Ignition protected.
  • Type: Manual Reset
  • Current Rating: 50A, 60A, 80A, 105A, 150A
  • Body: Thermoplastic
  • Mount: Panel
  • Operating Temp: -40°C to 85°C
  • Standards: SAE J553
    SAE J1171

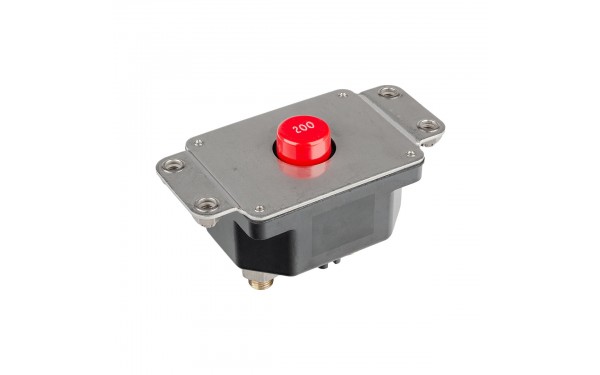

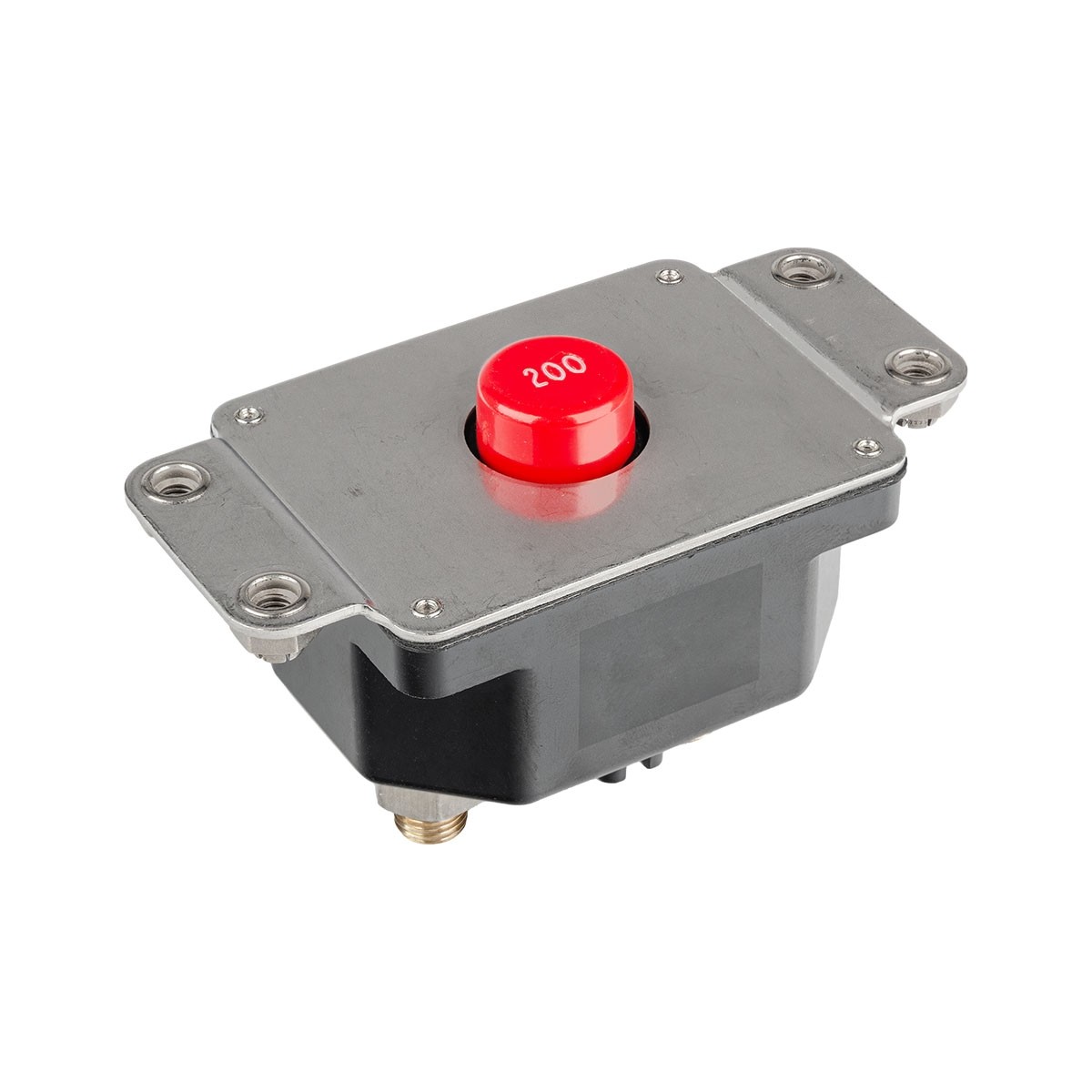

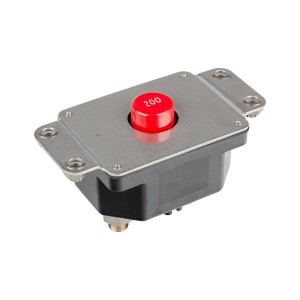

  • Marine rated.
  • Switchable.
  • Surface mount.
  • Weatherproof.
  • Stainless hardware & studs.
  • Ideal for DC power systems in marine applications, trucks, buses & RV's.
  • Type: Switchable
  • Current Rating: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 120A, 150A, 200A
  • Body: Thermoset plastic
  • Mount: Surface
  • Operating Temp: -40°C to 85°C
  • IP Rating: IP66
  • Standards: SAE J1625
    SAE J1171, CE
