AMP
- Compact design
- Secondary lock ensures contact retention
- Environmentally sealed - IP67
- Socket & Plug kits sold separately
- Kits contain housing, seals & terminals
- Ideal for truck, bus, marine & off-road vehicles
- Circuits: 1,2,3,5 & 6
- Current Rating: 14A
- Contacts: Tin-plated copper
- Housing Material: Polyamide
- Seal: Silicone
- Ingress Protection: IP67
Catalogue Downloads

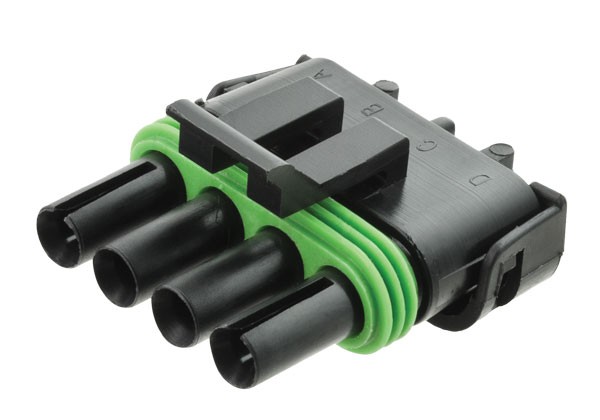

- Keyed for faultless connector mating

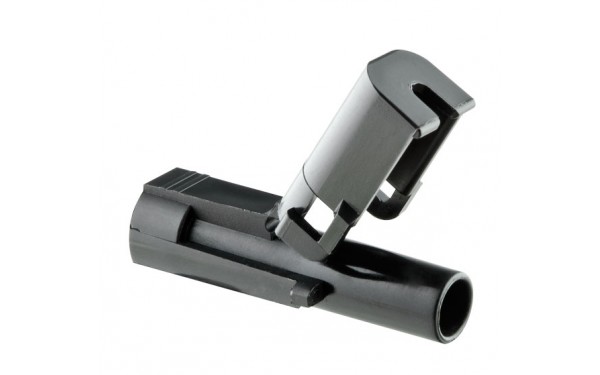

- Hinged cover maximises contact retention
- Ideal for applications requiring protection from environmental hazards
- Circuits: 1,2,3,4 & 6
- Current Rating: 13A @ 75°C
- Contacts: Tin-plated brass
- Seal: Silicon Rubber
- Housing Material: PA6
- Approvals: ELV, RoHS
- Operating Temp: -40° C to + 125°C
Catalogue Downloads

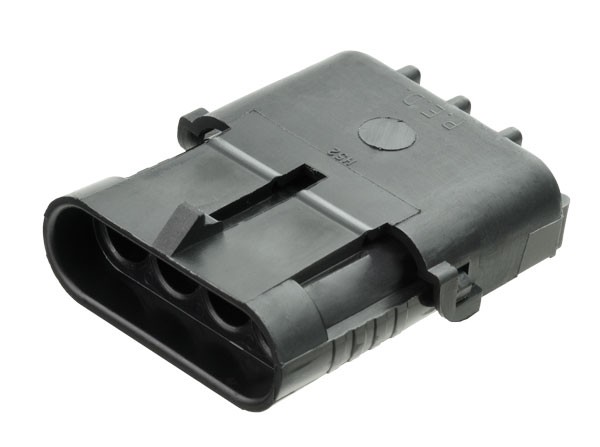

- Keyed for faultless connector mating
- Hinged cover maximises contact retention
- Ideal for applications requiring protection from environmental hazards
- Circuits: 1,2,3,4 & 6
- Current Rating: 13A @ 75°C
- Contacts: Tin-plated brass
- Seal: Silicon Rubber
- Housing Material: PA6
- Approvals: ELV, RoHS
- Operating Temp: -40° C to + 125°C
Catalogue Downloads

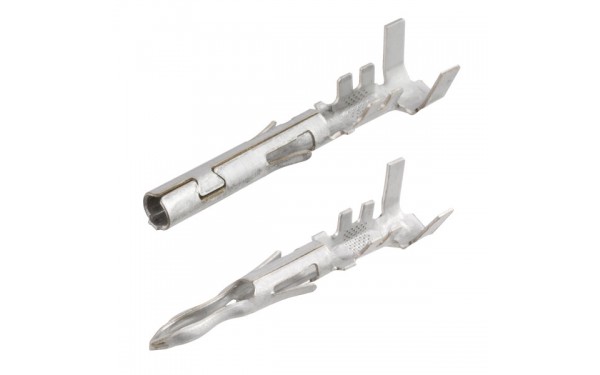

- Contacts made from tin plated copper.
- Available in bags of 100.

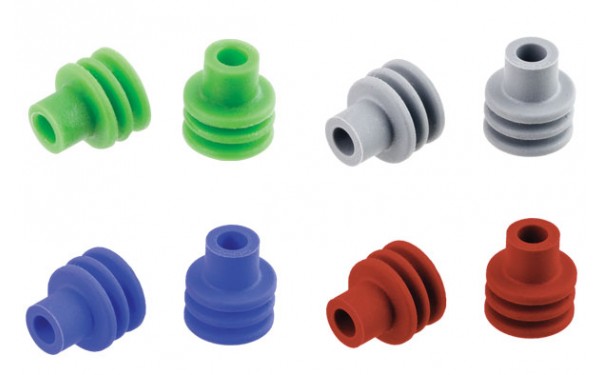

- Silicone seals in bags of 100.
- Seals & Cavity Plugs, colour coded for easy reference.
- Circuits: 1,2,3,5 & 6
- Current Rating: 14A
- Contacts: Tin-plated copper
- Housing Material: Polyamide
- Seal: Silicone
- Ingress Protection: IP67
Catalogue Downloads
- Kits contain 1 side of a connection.
- Ideal for applications requiring protection from environmental hazards.
- Keyed for faultless connector mating.
- Circuits: 1,2,3,5 & 6
- Current Rating: 14A
- Contacts: Tin-plated copper
- Housing Material: Polyamide
- Seal: Silicone
- Ingress Protection: IP67
Catalogue Downloads
- Complete range of Superseal connectors.
- 154 pieces.
- Circuits: 1,2,3,5 & 6
- Current Rating: 14A
- Contacts: Tin-plated copper
- Housing Material: Polyamide
- Seal: Silicone
- Ingress Protection: IP67
Catalogue Downloads
- Keyed to prevent mismating.
- Lanceless contacts – no damaged tangs or tangled contacts.
- Integral retainer protects against accidental unlocking.
- Environmentally sealed.
- Chemical resistant.
- Circuits: 2, 3, 4, 6, 8, 12
-
Current Rating: Size 16
13A - Cable Size: 0.8 – 2.0mm²
- Contacts: Copper alloy / Nickel
- Housing Material: Thermoplastic
- Seal: Silicone
- Operating Temp: -40°C to 125°C
Catalogue Downloads
- Contacts made from Nickel plated Copper Alloy.
- Available individually.
- Circuits: 2
-
Current Rating: Size 16
13A - Cable Size: 0.8 – 2.0mm²
- Contacts: Copper alloy / Nickel
- Housing Material: Thermoplastic
- Seal: Silicone
- Operating Temp: -40°C to 125°C
Catalogue Downloads
- Wire to device connectors.
- Designed to withstand high-temperature environments.
- Accepts contact size 1.3 mm (up to 17A gold, up to 8A tin).
- 16-20 AWG (1.25-0.50 mm2).
- 8, 14, 23 and 35 cavity arrangements.
- Rectangular, thermoplastic housing.
- Integrated latch for mating.
- Integrated wedgelock confirms contact alignment and retention.
- Keyed according to colour to prevent mismating.
- Circuits: 8, 14, 23 & 35
-
Current Rating: 17A (gold)
8A (tin) - Cable Size: 0.5 – 1.5mm²
- Contacts: Copper alloy / Nickel
- Housing Material: Thermoplastic
- Seal: Silicone
- Operating Temp: -40°C to 125°C
Catalogue Downloads
- Contacts made from Copper Alloy.
- Nickel or Gold plated options.
- Available in packs of 25.
- Sealing Plugs in packs of 10.
- Circuits: 2
-
Current Rating: Size 16
13A -
Cable Size: 0.5 – 1.5mm²
20-16 AWG -
Contacts: Copper alloy
Nickel or Gold Plated - Seal: Nylon
- Operating Temp: -40°C to 125°C
