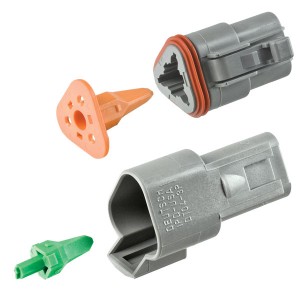

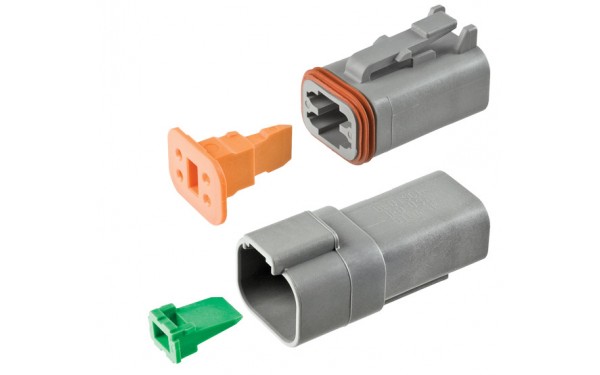

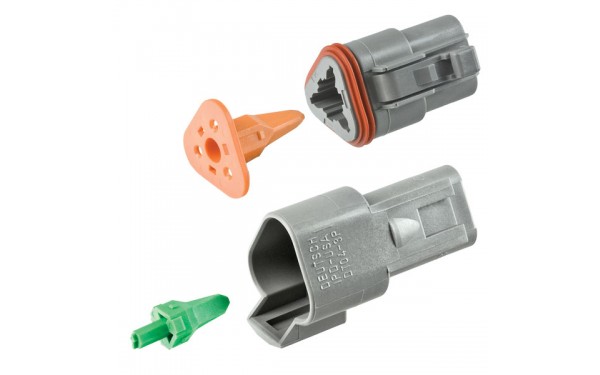

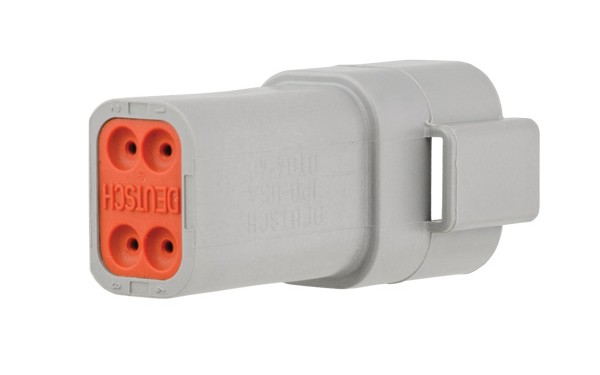

DT Series
- Genuine TE DEUTSCH Connectors.
- Industry proven.
- Environmentally sealed.

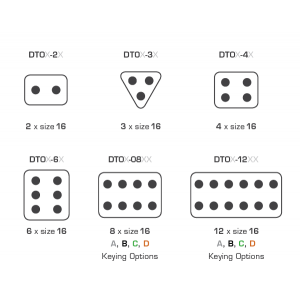

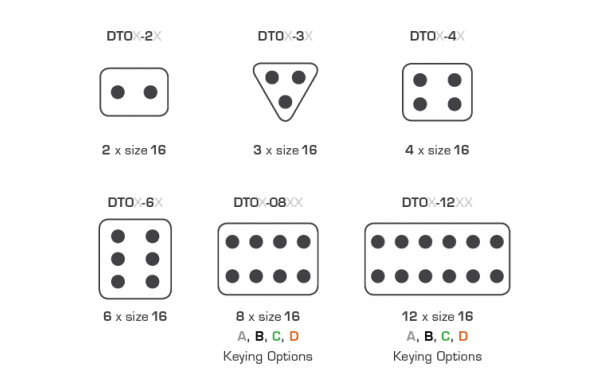

- 2, 3, 4, 6, 8 and 12 cavity arrangements.
- Multiple housing options available.
- Rectangular, thermoplastic housing.
- Latched mating.
- Wedgelocks assure contact alignment and retention.
- Accepts size 16 contacts, each with 13A continuous capacity.

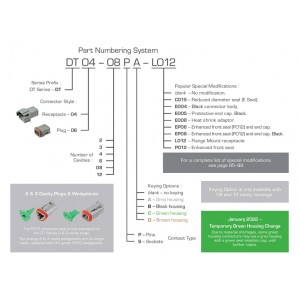

January 2022 – Temporary Green Housing Change
Due to material shortages, some green housing connectors may use a grey housing with a green seal retention cap, until further notice.
- Housing Material: Thermoplastic
- Seal: Silicone Rubber
- Contacts: Size 16
- Contact Rating: 13A @ 125℃
- Shock: 50G
- Vibration: 20G rms 10 - 2000Hz
- Operating Temp: -55°C to 125°C
Catalogue Downloads

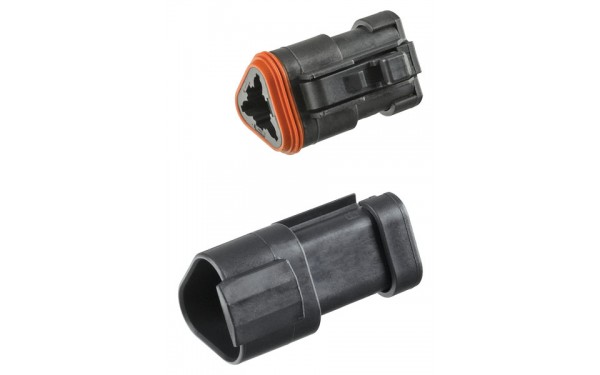

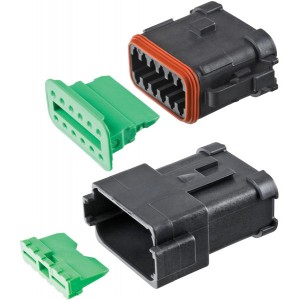

- Genuine TE DEUTSCH Connectors.

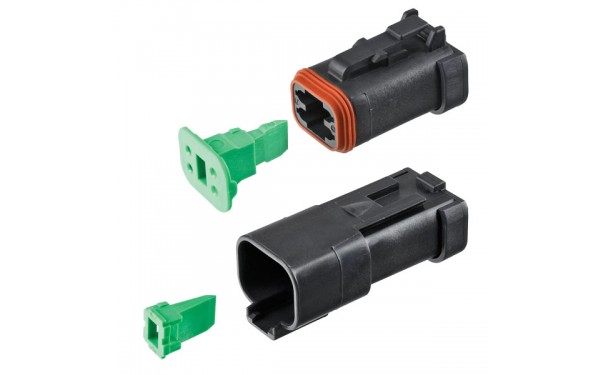

- As used on most Caterpillar® mining machinery as an OEM standard connector.
- Black housing material.
- Environmentally sealed.
- 2, 3, 4, 6, 8 and 12 cavity arrangements.
- Enhanced seal retention systems.
- Rectangular, thermoplastic housing.
- Latched mating.
- Wedgelocks assure contact alignment and retention.
- Accepts size 16 contacts, each with 13A continuous capacity.
- Housing Material: Thermoplastic
- Seal: Silicone Rubber
- Contacts: Size 16
- Contact Rating: 13A @ 125℃
- Shock: 50G
- Vibration: 20G rms 10 - 2000Hz
- Operating Temp: -55°C to 125°C
Catalogue Downloads
- Genuine TE DEUTSCH Connectors.

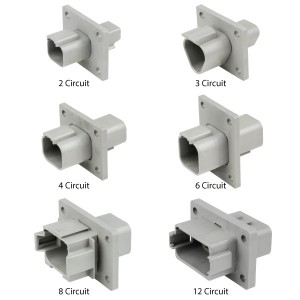

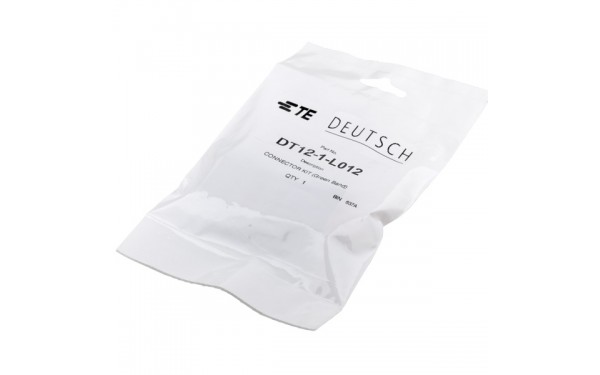

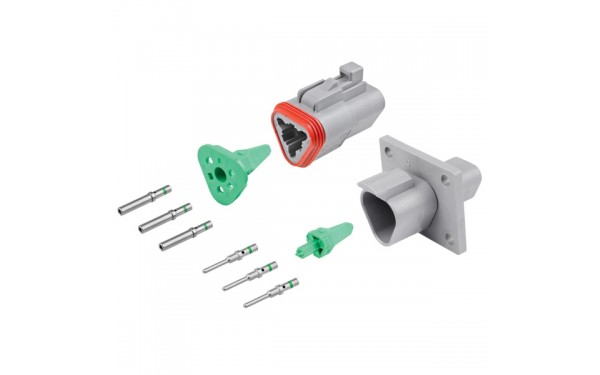

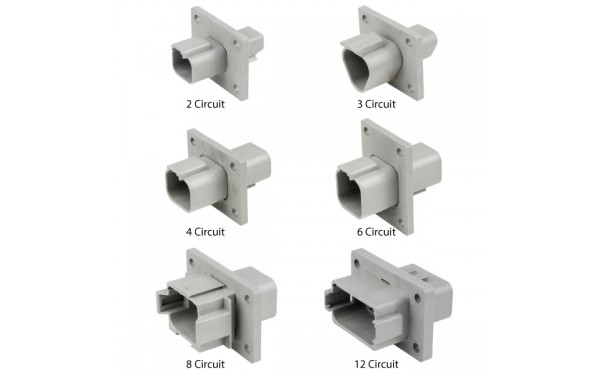

- Kits now available with the DT Series Flange Mount receptacles.
- Each Kit contains all components required to make both sides of a connection.
- Environmentally sealed – IP68, IP6K9K, when installed to manufacturer's specifications.
- 2, 3, 4, 6, 8 and 12 cavity arrangements.
- Latched mating.
- Accepts size 16 contacts, each with 13A continuous capacity.
- Contacts: Size 16
- Housing Material: Thermoplastic
- Contact Rating: 13A @ 125℃
- Operating Temp: -55°C to 125°C
- Shock: 50G
- Vibration: 20G rms 10 - 2000Hz
- Seal: Silicone Rubber
Catalogue Downloads

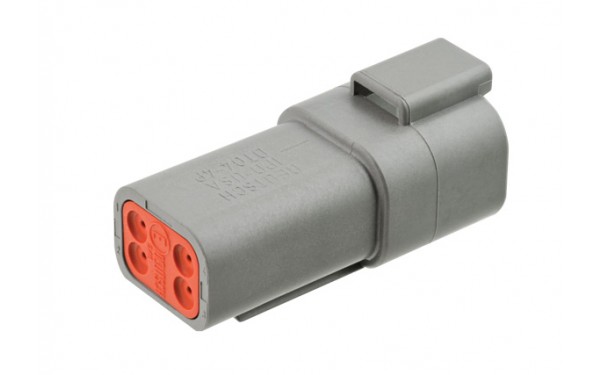

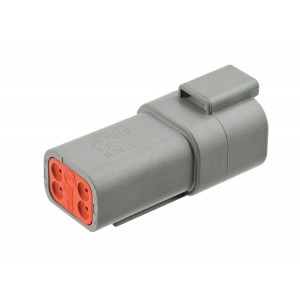

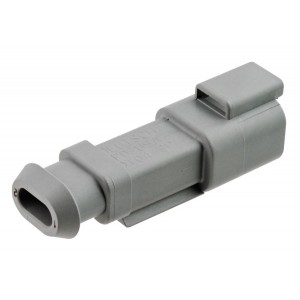

Genuine TE DEUTSCH Connectors offer a range of special modifications to cater for differing applications.
- Enhanced seal retention.
- Seal for smaller cable diameters.
- Heat shrink adaptor.

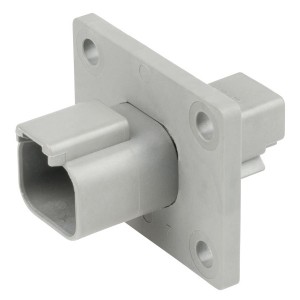

- Flange mounts.
January 2022 – Temporary Green Housing Change
Due to material shortages, some green housing connectors may use a grey housing with a green seal retention cap, until further notice.
- Housing Material: Thermoplastic
- Seal: Silicone Rubber
- Contacts: Size 16
- Contact Rating: 13A @ 125℃
- Shock: 50G
- Vibration: 20G rms 10 - 2000Hz
- Operating Temp: -55°C to 125°C
Catalogue Downloads

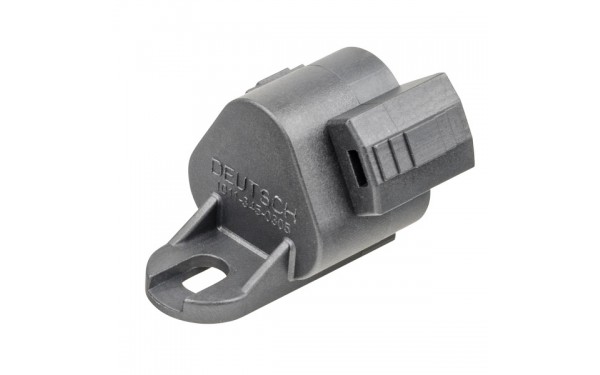

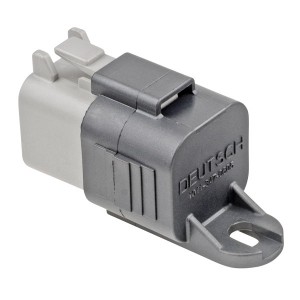

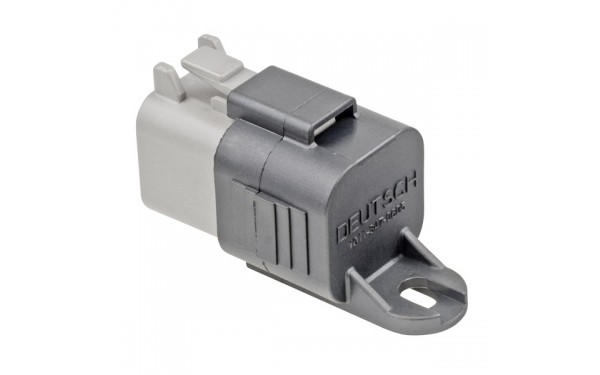

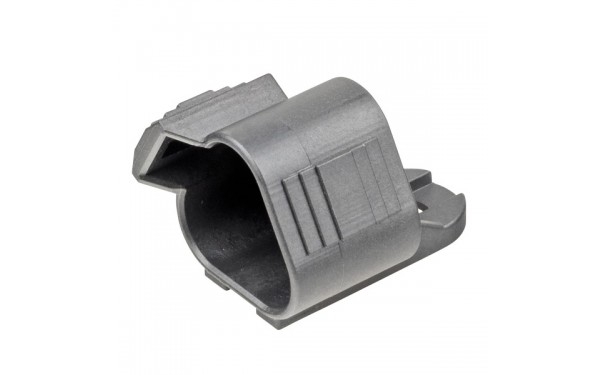

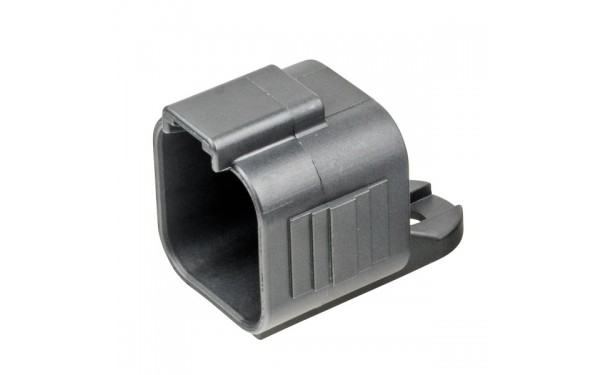

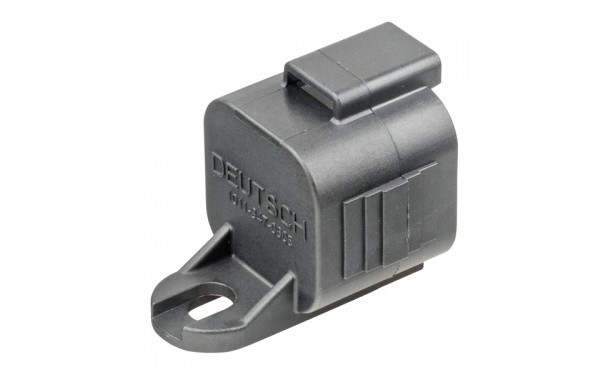

- Genuine TE DEUTSCH.
- Keep dust and dirt from entering unmated connectors.
- Models for 2, 3, 4, 6, 8 and 12 cavity DT Series Plugs.
- Latched mating for secure attachement.
- Material: Thermoplastic
- Operating Temp: -55°C to 125°C
Catalogue Downloads

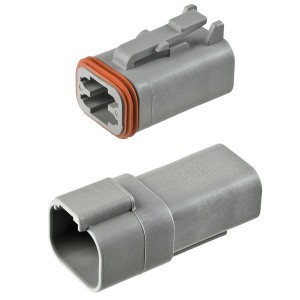

- Genuine TE DEUTSCH.
- Industry proven.
- Environmentally sealed.
- 2, 3, 4, 6, 8 and 12 cavity arrangements.
- Multiple housing options available.
- Rectangular, thermoplastic housing.
- Latched mating.
- Wedgelocks assure contact alignment and retention.
- Accepts size 16 contacts, each with 13A continuous capacity.

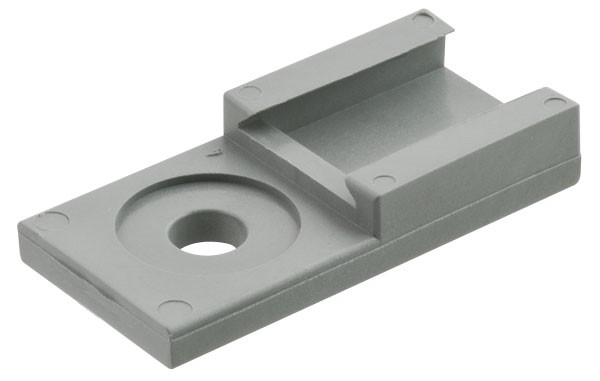

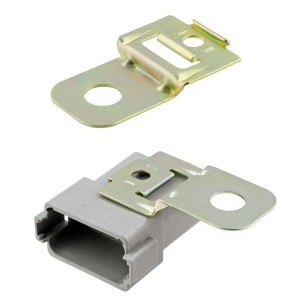

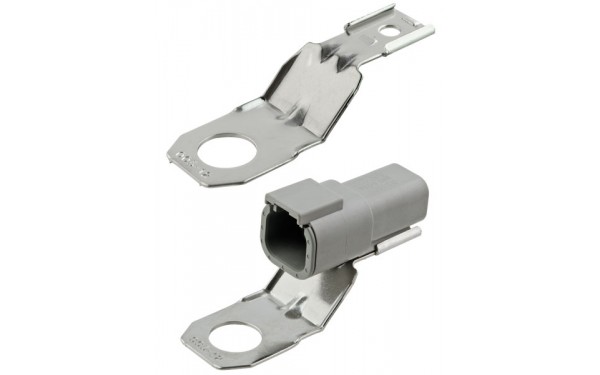

- Material: ThermoplasticStainless SteelZinc Plated Steel
- Operating Temp: -55°C to 125°C
