CAN Controllers

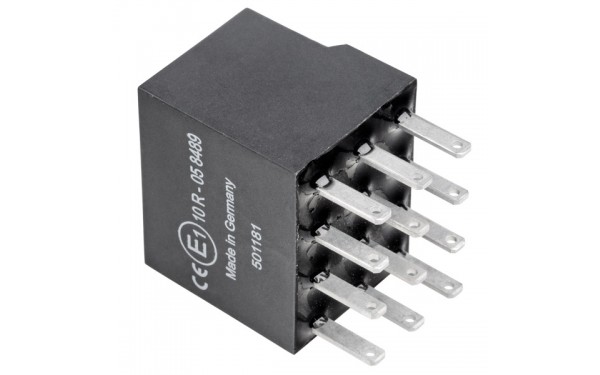

Microplex
Ionnic

Features

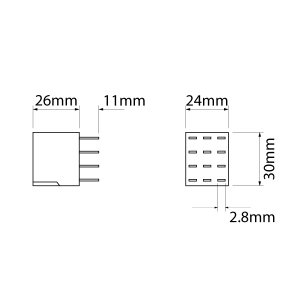

  • Microplex – world's smallest CAN controllers. Footprint of two micro 280 series relays.
  • Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.

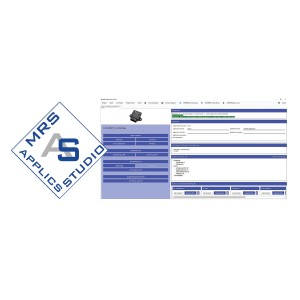

  • Fully programmable using graphical software.
  • Environmentally sealed – IP67 / IP6K8.
  • Highly flexible multifunction inputs.

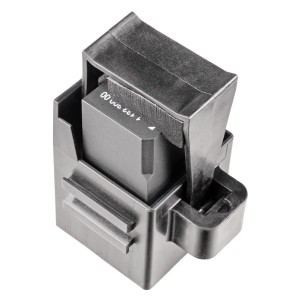

  • Holder kits specifically designed for Microplex range available – environmentally seal to IP67.
  • Short circuit & overcurrent protection.
  • Made in Europe.
  • Multi-voltage.

Specifications

  • Voltage: 8-32V
  • Outputs: 4 & 7 Models
  • CAN: CAN 2.0
    SAE J1939
  • Housing Material: PA66 Nylon
  • IP Rating: IP67
  • Operating Temp: -40°C to 85°C

Associations

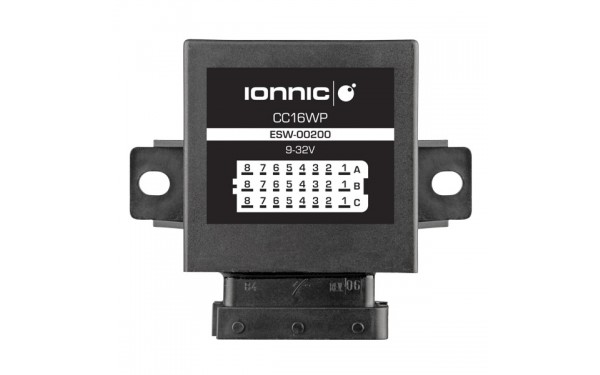

CC16WP
Ionnic

Features

  • Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
  • Multiple inputs/outputs.
  • 2 x CAN ports.
  • 32-bit processor with 65K RAM.
  • Fully programmable using graphical software.
  • Environmentally sealed – IP67 / IP6K8.
  • Highly flexible multifunction inputs.
  • Short circuit & overcurrent protection.
  • Made in Europe.
  • Multi-voltage.

Specifications

  • Voltage: 9-32V
  • Inputs: 7
  • Outputs: 8
  • CAN: CAN 2.0
    SAE J1939
  • Housing Material: PA66 Nylon
  • IP Rating: IP6K8
  • Operating Temp: -40°C to 85°C

Associations

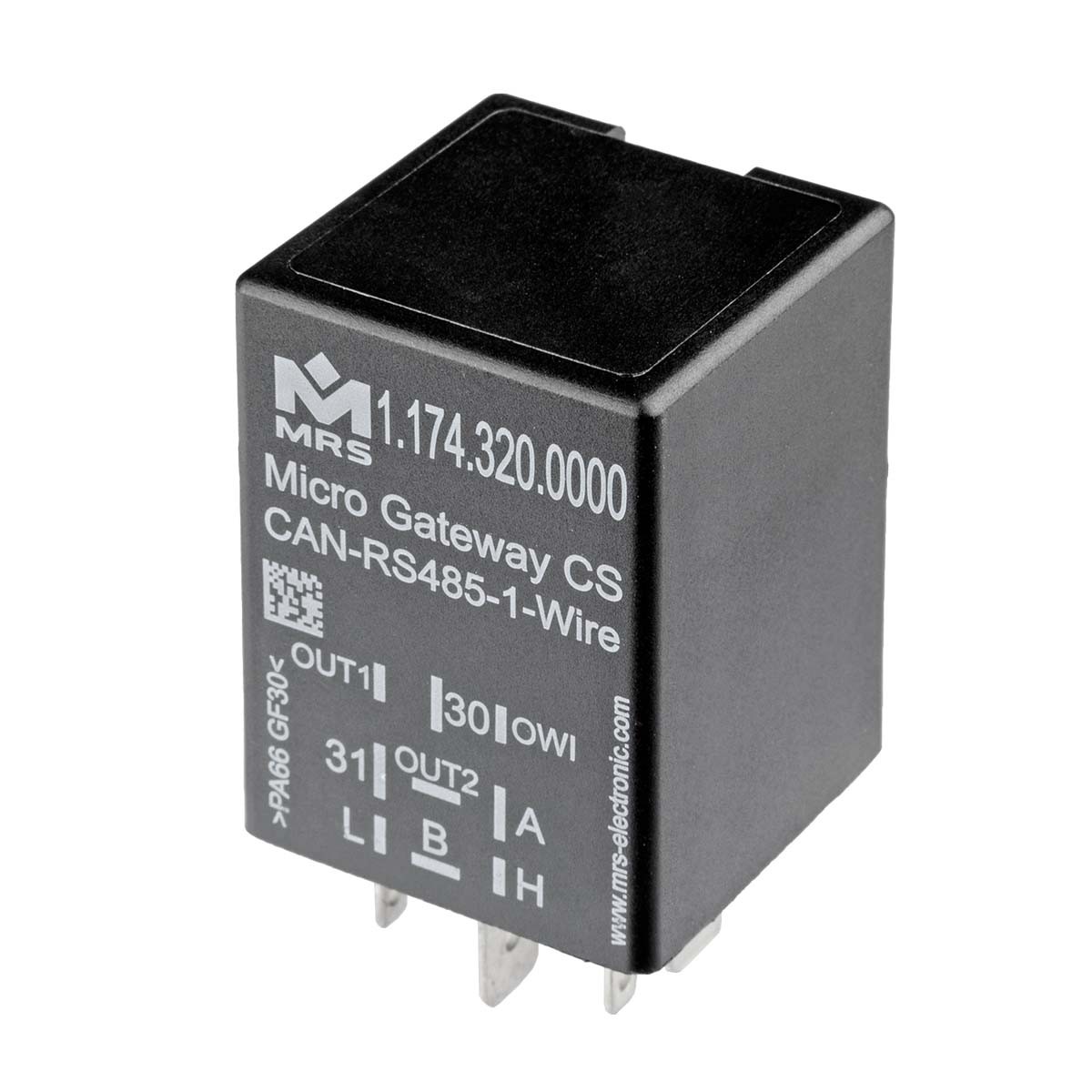

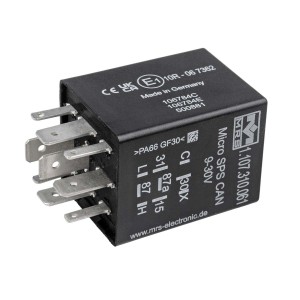

Ionnic

Features

  • Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
  • Secondary port options include RS485, LIN (Slave), CAN/FD, or an additional CAN.

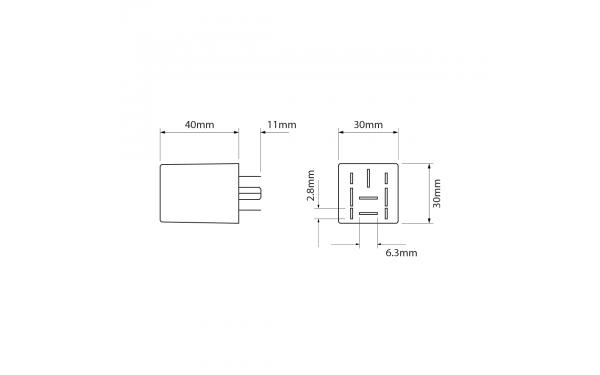

  • Compact design – 30 x 30 x 40mm.
  • 32-bit processor with 256K RAM for the ESW-00057.
  • Fully programmable using graphical software.
  • Environmentally sealed – IP67 / IP6K8.
  • Highly flexible multifunction inputs.
  • Short circuit & overcurrent protection.
  • Made in Europe.
  • Multi-voltage.

Specifications

  • Voltage: 9-32V
    8–16V
  • Inputs: 1 & 2 Models
  • Outputs: 1 & 2 Models
  • CAN: CAN 2.0
    SAE J1939
  • Housing Material: PA66 Nylon
  • IP Rating: IP6K8K
  • Operating Temp: -40°C to 85°C

Associations

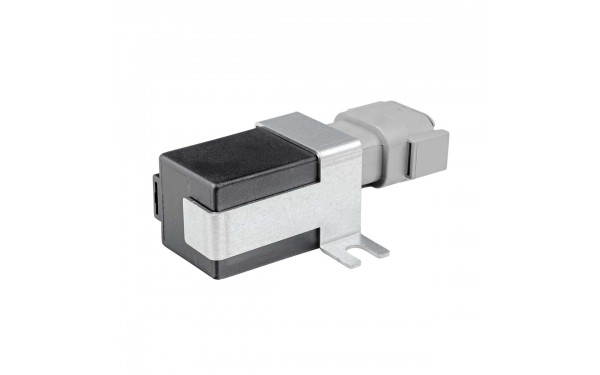

Ionnic

Features

  • Use as I/O module in a CAN network as well as a stand-alone and intelligent programmable controller.
  • Integrated TE DEUTSCH connector for harsh environmental conditions.
  • Up to 4 analogue outputs.
  • Fully programmable using graphical software.
  • Environmentally sealed – IP67 / IP6K8.
  • Highly flexible multifunction inputs.
  • Short circuit & overcurrent protection.
  • Made in Europe
  • Multi-voltage.

Specifications

  • Voltage: 9-32V
    7-32V
  • Inputs: 2 & 4 Models
  • Outputs: 2 & 4 Models
  • CAN: CAN 2.0
    SAE J1939
  • Housing Material: PA66 Nylon
  • IP Rating: IP6K8K
  • Operating Temp: -40°C to 85°C
