Emergency Stop
- Available in kit and components form.
- Metal & polymer housings.
- Multiple actuator types available including locking version.
- Multiple contact blocks available.
- Custom legends available.
- Environmentally sealed - IP65.
- Voltage: 6-36V
- Contacts: Silver Alloy
- Body: Die-cast or Polycarbonate
- Button: Polymer
- IP Rating: IP65
- Operating Temp: -25°C to 70°C
- Function illumination indicates switch status.
- Supplied with latching Telemecanique emergency stop switch.
- N/O & N/C Telemecanique contact block.
- Available in kit and component form.
- Plastic housing.
- 24V only.
- Voltage: 24V
- Switch Contacts: N/O & N/C
- Contacts: Silver Alloy
- Button: Polymer
- Enclosure: Plastic
- Operating Temp: -25°C to 70°C
- Recessed surface mount kit.
- Threaded nut fastener.
- Protects and helps prevent accidental switch activation.
- Supplied with latching Telemecanique emergency stop switch.
- Available with N/O or N/O & N/C Telemecanique contact block.
- Available in kit and component form.
- Plastic.
- Multi-voltage.
- Voltage: 6-36V
- Switch Contacts: N/O & N/C
- Contacts: Silver Alloy
- Button: Polymer
- Enclosure: Plastic
- Operating Temp: -25°C to 70°C
- Plug & play E-stop switch.
- Multi-voltage.
- Available in N/O & N/C and C/O models.
- TE DEUTSCH connector on fly lead.
- Incorporated strain relief on both ends of lead.
- Resistant to shock, vibration, dust and moisture.
- Environmentally sealed – IP67, IP6K9K, when installed to manufacturer's specifications.
- Voltage: 9-32V
- Current Rating: 10A continuous
-
Switch Contacts: 1 x N/O
1 x N/C - Contacts: Silver Alloy
- Terminals: Copper Zinc Alloy
-
Button: Latching
Turn to Release - Enclosure: Polyamide
-
Mount: Panel Mount
M30 x 1.5 Tread - Connector: DT Series 6 Pin
- Cable Length: 180mm
- Shock: 50G
- Vibration: ISO 16750-3
-
Ingress Protection: IP67
IP6K9K - Operating Temp: -40°C to 85°C

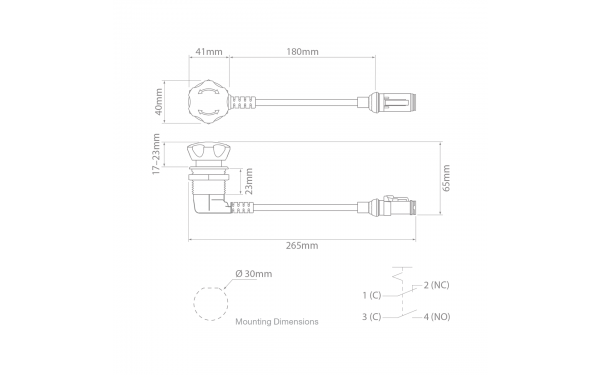

- Plug & play E-stop switch.
- Multi-voltage.
- Available in N/O & N/C and C/O models.
- TE DEUTSCH connector on fly lead.
- Incorporated strain relief on both ends of lead.
- Resistant to shock, vibration, dust and moisture.
- Environmentally sealed – IP67, IP6K9K, when installed to manufacturer's specifications.
- Voltage: 9-32V
- Current Rating: 10A continuous
- Switch Contacts: 2 x Indenpendent C/O
- Contacts: Silver Alloy
- Terminals: Copper Zinc Alloy
-
Button: Latching
Turn to Release - Enclosure: Polyamide
-
Mount: Panel Mount
M30 x 1.5 Tread - Connector: DT Series 4 Pin
- Cable Length: 200mm
- Shock: 50G
- Vibration: ISO 16750-3
-
Ingress Protection: IP67
IP6K9K - Operating Temp: -40°C to 85°C
- Convenient pre-wired E-Stop kit featuring a sealed harness and 'CAT Spec' TE DEUTSCH connector.

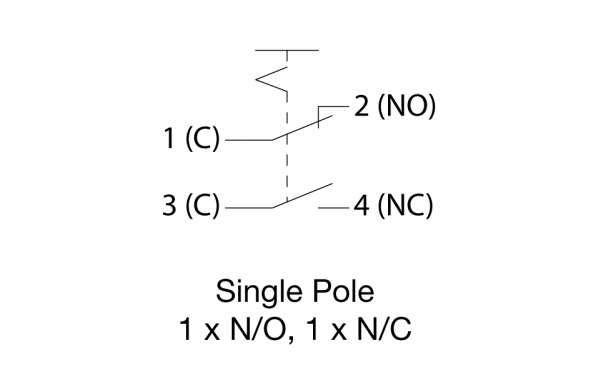

- 1 x NO & 1 x NC contact blocks.
- Latching 40mm mushroom button with turn-to-release.
- Utilises genuine TE DEUTSCH E005 ‘CAT-Spec’ connectors for enhanced seal retention.
- Includes mating connector kit with wedgelock and contacts.
- Polycarbonate housing.

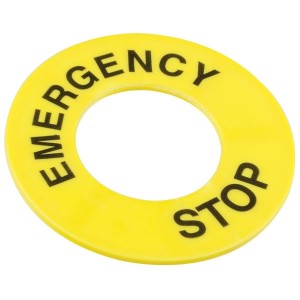

- Custom legends available.
- Environmentally sealed – IP65.
- Multi-voltage.
- Voltage: 6-36V
-
Contacts: N/O & N/C
Silver Alloy - Body: Polycarbonate
- Button: Polymer
- IP Rating: IP65
- Operating Temp: -25°C to 70°C
Catalogue Downloads
- Plug & play E-stop switch.
- Multi-voltage.
- Latching with N/O & N/C contacts.

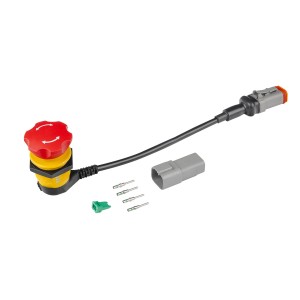

- TE DEUTSCH connector on fly lead.
- Supplied with mating half of TE DEUTSCH connector.
- Incorporated strain relief on both ends of lead.
- Resistant to shock, vibration, dust and moisture.
- Environmentally sealed – IP67, IP6K9K, when installed to manufacturer's specifications.
- Recessed panel mount and accessories available to suit.
- Voltage: 9-32V
- Current Rating: 10A continuous
-
Switch Contacts: 1 x N/O
1 x N/C - Contacts: Silver Alloy
- Terminals: Copper Zinc Alloy
-
Button: Latching
Turn to Release - Enclosure: Polyamide
-
Mount: Panel Mount
M30 x 1.5 Tread - Connector: DT Series 6 Pin
- Cable Length: 180mm
- Shock: 50G
- Vibration: ISO 16750-3
-
Ingress Protection: IP67
IP6K9K - Operating Temp: -40°C to 85°C
Catalogue Downloads
- Latching button type.
- Supplied with 1 x N/O and 1 x N/C contact block.
- Ideal for panel mounting.
- Voltage: 6-36V
- Switch Contacts: N/O & N/C
- Contacts: Silver Alloy
- Button: Polymer
- Operating Temp: -25°C to 70°C

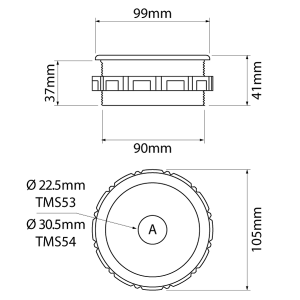

- Recessed panel mount kit.
- Protects and helps prevent accidental switch activation.
- Supplied with latching Telemecanique emergency stop switch.
- Available with N/O or N/O & N/C Telemecanique contact block.
- Available in kit and component form.
- Coated carbon steel.
- Multi-voltage.
- Voltage: 6-36V
-
Switch Contacts: N/O
N/O & N/C - Contacts: Silver Alloy
- Button: Polymer
- Enclosure: Coated Carbon Steel
- Operating Temp: -25°C to 70°C
- Available in kit and components form.
- Solid metal housings.
- Multiple actuator types available including locking version.
- Multiple contact blocks available.
- Environmentally sealed - IP65.
- Voltage: 6-36V
- Contacts: Silver Alloy
- Button: Die-cast
- Housing Material: Die-cast
- IP Rating: IP65
- Operating Temp: -17°C to 65°C
