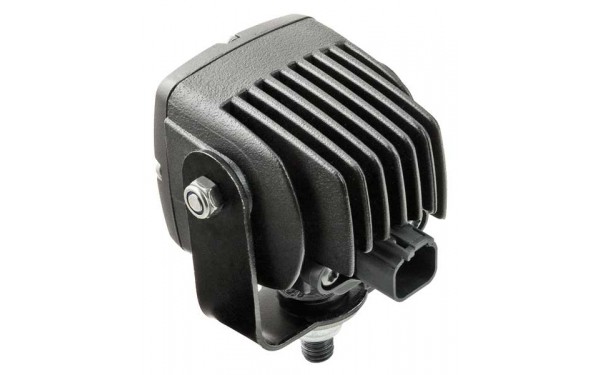

NORDIC Heavy Duty LED

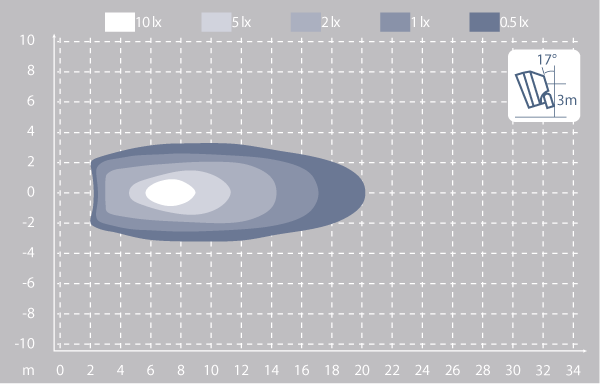

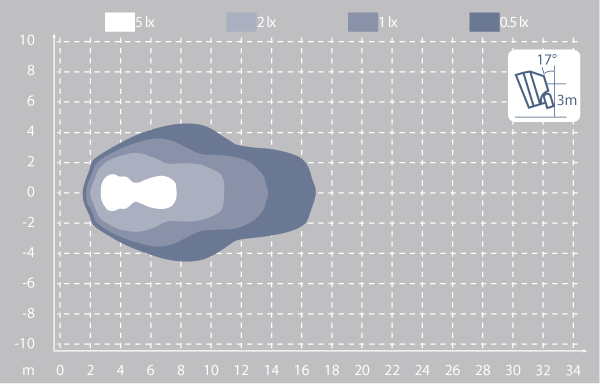

Light Patterns

  • Multi-voltage operation
  • Long life LEDs
  • Low current draw
  • Over voltage, over temperature, spike & polarity protected
  • Environmentally sealed cast alloy body
  • Extreme shock resistance
  • Heavy duty mounting system
  • Whiter than daylight colour temperature
  • Replaceable lens
  • Rotate lens for pendant or side mount

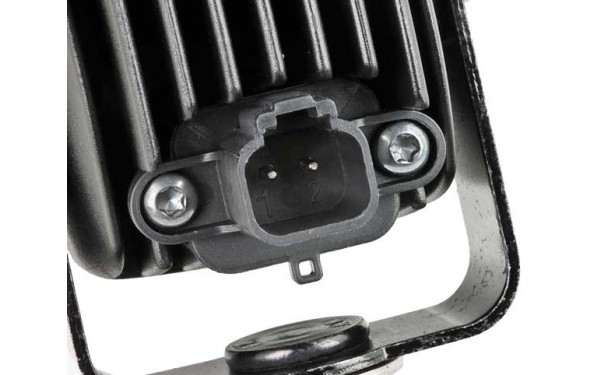

  • Deutsch DT connector encapsulated in body
  • 5 year warranty
  • Theoretical Lumen Output: 900lm
  • Operating Lumen Output: 570lm
  • Voltage: 12-24V
  • Input Current: 0.7A @ 24V
  • Max Power Consumption: 17 Watts
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: Single Bolt M10
  • Shock: 60G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 0.8kg
  • IP Rating: IP68
  • Salt Mist: ISO 9227
  • EMC: ISO 13766, ISO 14982, ISO 7637-2, EN12895
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 6000K
  • Light Source: 4 x Cree® XP-E LED
  • Cost effective, high quality worklamps.
  • Compact design.
  • Multi-voltage.
  • Long life LEDs.
  • Low current draw.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Extreme shock resistance.
  • Deutsch DT connector encapsulated in body.
  • 5 year warranty.
  • Theoretical Lumen Output: 2800lm
  • Operating Lumen Output: 1200lm
  • Voltage: 9-32V
  • Input Current: 1.0A @ 24V
  • Max Power Consumption: 28W
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: Single Bolt M8
  • Shock: 60G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 0.6 kg
  • IP Rating: IP68
    IP6K9K
  • EMC: ISO 13766
    ISO 14982
    ISO 7637-2
    EN12895
  • Salt Mist: ISO 9227 240H
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5000 K
  • Light Source: 6 x Nichia® NVSWE21AT
  • Compact design.
  • Multi-voltage operation.
  • Long life LEDs.
  • Low current draw.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Extreme shock resistance.
  • Whiter than daylight colour temperature.
  • Deutsch DT connector encapsulated in body.
  • Available boxed and in blister packaging.
  • 5 year warranty.
  • Theoretical Lumen Output: 1900lm
  • Operating Lumen Output: 1200lm
  • Voltage: 12-24V
  • Input Current: 0.8A @ 24V
  • Max Power Consumption: 20W
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: Single Bolt M8
  • Shock: 60 G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 0.5 kg
  • IP Rating: IP68
    IP6K9K
  • EMC: SO 13766
    ISO 14982
    ISO 7637-2
    EN12895
  • Salt Mist: ISO 9227 240H
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700 K
  • Light Source: 6 x Lumileds Luxeon Z ES
  • Multi-voltage operation.
  • Long life LEDs.
  • Low current draw.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Extreme shock resistance.
  • Even light pattern without hotspots.
  • Whiter than daylight colour temperature.
  • Deutsch DT connector encapsulated in body.
  • Available boxed and in blister packaging.
  • 5 year warranty.
  • Theoretical Lumen Output: 3200lm
  • Operating Lumen Output: 2000lm
  • Voltage: 12-24V
  • Input Current: 1.7A @ 24V
  • Max Power Consumption: 40W
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: Single Bolt M10
  • Shock: 60 G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 0.9 kg
  • IP Rating: IP68
    IP6K9K
  • EMC: SO 13766
    ISO 14982
    ISO 7637-2
    EN12895
  • Salt Mist: ISO 9227 240H
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700 K
  • Light Source: 10 x Lumileds Luxeon Z ES
  • Extremely bright illumination - 11,500lm.
  • Heavy duty QUAKE anti-vibration mounting system.
  • Extreme shock resistance.
  • Multi-voltage operation.
  • Long life LEDs.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Whiter than daylight colour temperature.
  • Deutsch DT connector encapsulated in body.
  • 5 year warranty.
  • Theoretical Lumen Output: 11,500lm
  • Operating Lumen Output: 7,200lm
  • Voltage: 18-32V
  • Input Current: 3.5A @ 24V
  • Max Power Consumption: 85 Watts
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: M8 Bolt
  • Shock: 60G
  • Vibration: 15.3G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 2.9 kg
  • IP Rating: IP68
  • Salt Mist: ISO 9227
  • EMC: ISO 13766
    ISO 14982
    ISO 7637-2
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700K
  • Light Source: 8 x Lumileds® Luxeon LEDs
  • Compact & low profile design.
  • Available in up or down side light dispersion models.
  • Multi-voltage operation.
  • Long life LEDs.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Extreme shock resistance.
  • Whiter than daylight colour temperature.
  • Replaceable lens.
  • Deutsch DT connector encapsulated in body.
  • 5 year warranty.
  • Ideal for mining, forestry, construction and material handling application.
  • Can be mounted on sides of excavator boom.
  • Theoretical Lumen Output: 4,100lm
  • Operating Lumen Output: 2,600lm
  • Voltage: 12-24V
  • Input Current: 1.3A @ 24V
  • Max Power Consumption: 32 Watts
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: 4 x M8 Bolt
    User supplied
  • Shock: 60 G
  • Vibration: 15.3G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 1.6 kg
  • IP Rating: IP68
  • Salt Mist: ISO 9227
  • EMC: ISO 13766, ISO 14982, ISO 7637-2
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700K
  • Light Source: 6 x Cree® XML-2 LEDs
  • Ultra compact & lightweight.
  • Next generation LED's providing even greater light output.
  • Multi-voltage operation.
  • Long life LED.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Whiter than daylight colour temperature.
  • Deutsch DT connector encapsulated in body.
  • 5 year warranty.
  • Theoretical Lumen Output: 1,600lm
  • Operating Lumen Output: 1,000lm
  • Weight: 0.6 kg
  • Voltage: 9-68V
  • Input Current: 0.25A @ 48V
  • Max Power Consumption: 13 Watts
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: Single Bolt M10
  • Shock: 60 G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • IP Rating: IP68
  • Salt Mist: ISO 9227
  • EMC: ISO 13766, ISO 14982, ISO 7637-2
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700K
  • Light Source: 1 x Lumileds® Luxeon M LED
  • Extremely high output - 40,300lm.
  • Long life LEDs.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Extreme shock resistance.
  • Whiter than daylight colour temperature.
  • Replaceable lens.
  • Individual connector for upper & lower lamps.
  • Deutsch DT connectors encapsulated in body.
  • 5 year warranty.
  • Theoretical Lumen Output: 40,300lm
  • Operating Lumen Output: 25,200lm
  • Voltage: 24V
  • Input Current: 12.5A @ 24V
  • Max Power Consumption: 300 Watts
  • Lifetime: 50,000 Hrs
  • Connector: 2 x Deutsch
    DT Series 2 Pin
  • Mount: 5 x Bolt M14
  • Lens: PC
  • Body: Aluminium
  • Weight: 18 kg
  • IP Rating: IP68
  • Salt Mist: ISO 9227
  • EMC: ISO 13766, ISO 14982, ISO 7637-2
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700K
  • Light Source: 60 x Cree® XML-2 LEDs
  • Note: Non stock item
    Lead times will apply.
  • Compact surface mount worklamps.
  • 4 LED & 6 LED model available.
  • Multi-voltage operation.
  • Long life LEDs.
  • Low current draw.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed aluminium body.
  • Whiter than daylight colour temperature.
  • Replaceable lens.
  • Deutsch DT connector on fly lead.
  • 5 year warranty.
  • Theoretical Lumen Output: 4 LED
    1600lm
    6 LED
    2400lm
  • Operating Lumen Output: 4 LED
    1000lm
    6LED
    1500lm
  • Voltage: 12-24V
  • Input Current: 1A @ 24V
  • Max Power Consumption: 24W
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: 4 x M5 Bolt
  • Shock: 60 G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 0.7 kg
  • IP Rating: IP68
  • EMC: ISO 13766, ISO 14982, ISO 7637-2, EN12895
  • Salt Mist: ISO 9227
  • Operating Temp: -40° C to + 85°C
  • Colour Temperature: 5700 K
  • Light Source: Oslon® Square
  • Multi-voltage operation.
  • Long life LEDs.
  • Low current draw.
  • Over voltage, over temperature, spike & polarity protected.
  • Environmentally sealed cast alloy body.
  • Extreme shock resistance.
  • Heavy duty mount.
  • Whiter than daylight colour temperature.
  • Replaceable lens.
  • Rotate lens for pendant or side mount.
  • Deutsch DT connector encapsulated in body.
  • 5 year warranty.
  • Theoretical Lumen Output: 1100lm
  • Operating Lumen Output: 700lm
  • Voltage: 12-80V
  • Input Current: 0.7A @ 24V
  • Max Power Consumption: 17 Watts
  • Lifetime: 50,000 Hrs
  • Connector: Deutsch DT Series 2 Pin
  • Mount: Single Bolt M10
  • Shock: 60 G
  • Vibration: 8G rms 24 - 2000 Hz
  • Lens: PC
  • Body: Aluminium
  • Weight: 0.9 kg
  • IP Rating: IP68
  • Salt Mist: ISO 9227
  • EMC: ISO 13766, ISO 14982, ISO 7637-2, EN12895
  • Operating Temp: -40°C to 85°C
  • Colour Temperature: 5700 K
  • Light Source: 4 x Rebel® ES LEDs
